Description

Price

1

CYLINDER HEAD ASSY

2MB-E1102-00-00

$938.99

2

GUIDE, VALVE 1

2MB-E1133-10-00

$37.99

3

BOLT, STUD

2MB-E1179-00-00

$6.99

4

BOLT 1

2MB-E5481-80-00

$3.28

5

GASKET, CYLINDER H

2MB-E1181-00-00

$40.99

6

BOLT, CYLINDER HOL

2MB-E1361-00-00

$27.99

7

PLUG, SPARK (NGK CPR7EA)

CPR-7EA90-00-00

Unavailable

8

COVER, CYLINDER HE

2MB-E1191-00-00

Unavailable

9

GUIDE, STOPPER 2

2MB-E2241-00-00

$5.49

10

BOLT

2MB-E4446-00-00

$6.99

11

RUBBER, MOUNT 1

2MB-E111G-00-00

$7.99

12

GASKET, HEAD COVER

2MB-E1193-00-00

$36.99

13

BREATHER ASSY

2MB-E1160-00-00

Unavailable

14

BOLT 1

2MB-E5481-20-00

Unavailable

15

REED VALVE ASSY

2MB-E3610-00-00

Unavailable

16

GASKET, COVER

2MB-E131B-00-00

Unavailable

17

PIPE, BREATHER 1

2MB-E1166-00-00

Unavailable

18

CLIP

90467-140A4-00

Unavailable

19

PLATE

2MB-E482K-00-00

Unavailable

20

REED VALVE ASS

5JW-14890-00-00

Unavailable

21

CAP, CASE

2MB-E4889-00-00

Unavailable

22

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

23

HOSE, BEND 1

1XD-E4881-00-00

Unavailable

24

AIR CUT VALVE ASSY

2MB-14840-00-00

Unavailable

25

HOSE, BEND 2

1XD-E4882-00-00

Unavailable

26

CLIP(3TB)

90467-17128-00

Unavailable

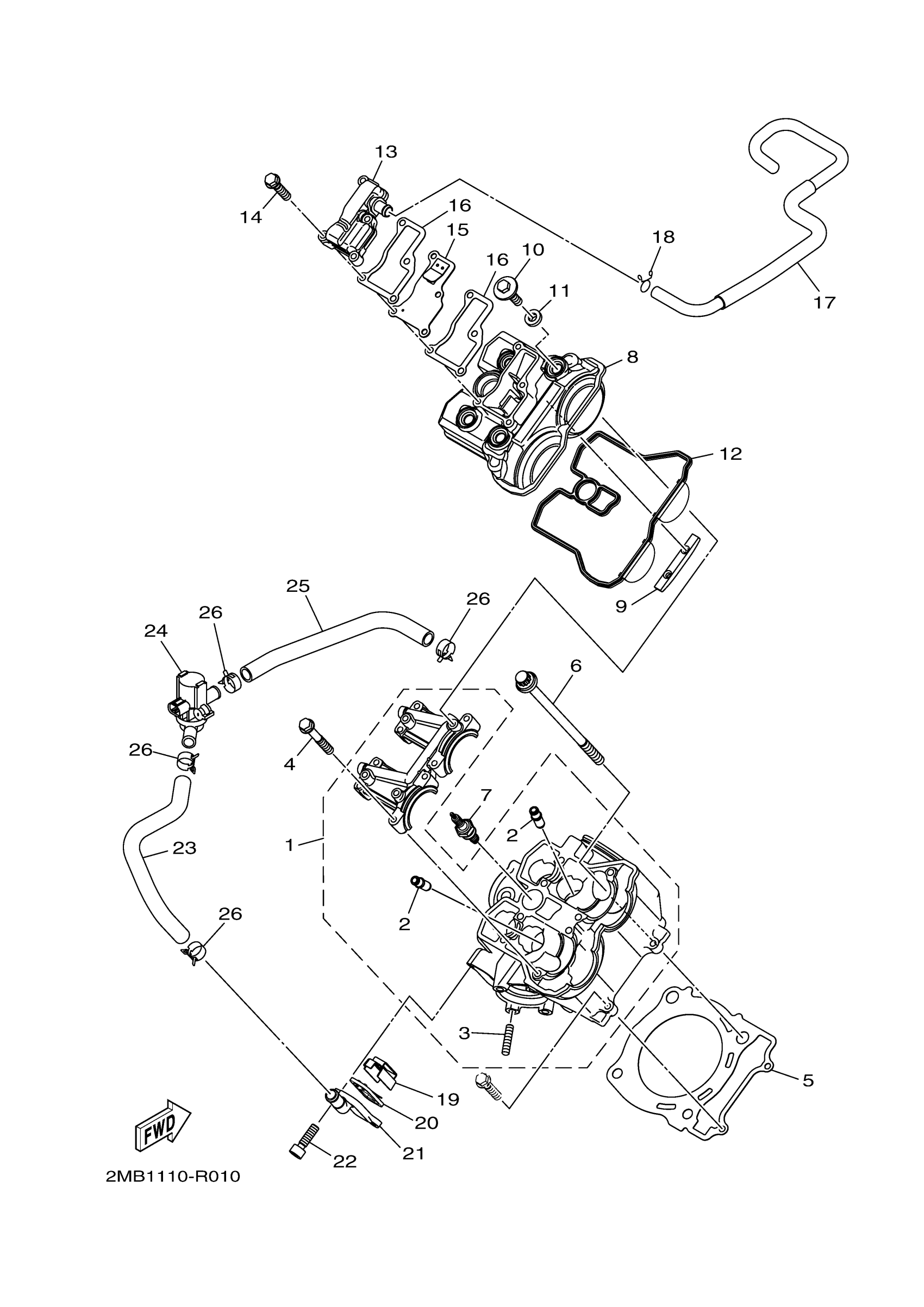

Yamaha YXE70WDBHH (WOLVERINE HUNTER) B356 2017 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

GUIDE, VALVE 1

BOLT, STUD

BOLT 1

GASKET, CYLINDER H

BOLT, CYLINDER HOL

PLUG, SPARK (NGK CPR7EA)

COVER, CYLINDER HE

GUIDE, STOPPER 2

BOLT

RUBBER, MOUNT 1

GASKET, HEAD COVER

BREATHER ASSY

BOLT 1

REED VALVE ASSY

GASKET, COVER

PIPE, BREATHER 1

CLIP

PLATE

REED VALVE ASS

CAP, CASE

BOLT,SOCKET HEAD

HOSE, BEND 1

AIR CUT VALVE ASSY

HOSE, BEND 2

CLIP(3TB)
