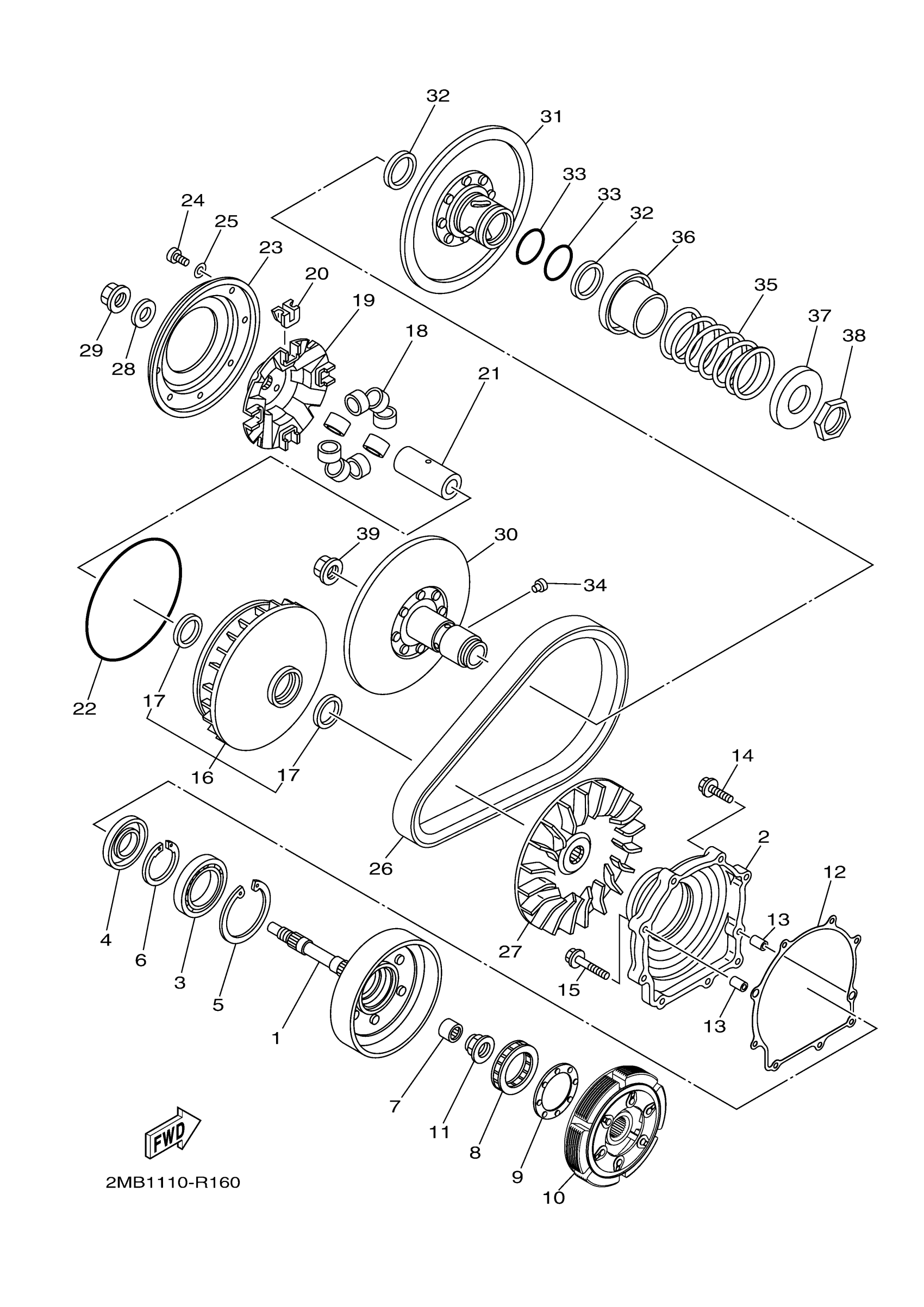

Yamaha YXE70WDBHG (WOLVERINE) B354 2017 CLUTCH Diagram
#
1
CLUTCH HOUSING COM
2PG-16611-00-00
$367.99
2
HOUSING, BEARING 1
3B4-15163-00-00
$111.99
3
BEARING
93316-01003-00
$104.99
4
OIL SEAL
93102-35004-00
$21.99
5
CIRCLIP (70R)
93420-80066-00
$14.99
6
CIRCLIP
93410-46079-00
$8.49
7
BRG,CYL-CAL ROLLER 12G KY
93315-21813-00
$36.99
8
BEARING, ONE WAY
4SH-16664-00-00
$154.99
9
RING, SEAL
1HP-16717-00-00
$31.99
10
CLUTCH CARRIER ASS
2PG-16620-00-00
$336.99
11
NUT
90179-22021-00
$25.99
12
GASKET, COVER PINI
2MB-E5463-00-00
$10.99
13
PIN, DOWEL
2MB-E5181-00-00
$3.17
14
BOLT 1
2MB-E5481-50-00
Unavailable
15
BOLT 1
2MB-E5481-30-00
$1.56
16
PRIMARY SLIDING SHEAVE COMP.
2MB-E7606-00-00
Unavailable
17
OIL SEAL
2MB-F3145-00-00
Unavailable
18
WEIGHT
2MB-E7632-00-00
Unavailable
19
CAM
3B4-17623-02-00
Unavailable
20
SLIDER
16B-17653-00-00
Unavailable
21
COLLAR
2MB-E7645-00-00
Unavailable
22
O-RING
2MB-E3473-00-00
Unavailable
23
STOPPER
2MB-E7639-00-00
Unavailable
24
SCREW, PAN HEAD
90157-04006-00
Unavailable
25
WASHER 2
2MB-E1558-00-00
Unavailable
26
V-BELT
1XD-17641-00-00
Unavailable
27
SHEAVE, PRIMARY FIXED
3B4-17611-00-00
Unavailable
28
WASHER
2MB-E7648-00-00
Unavailable
29
NUT
90179-16005-00
Unavailable
30
SECONDARY FIXED SHEAVE COMP.
1XD-17660-00-00
Unavailable
31
SECONDARY SLIDING
2PG-17670-00-00
Unavailable
32
OIL SEAL
93104-41119-00
Unavailable
33
O-RING (10L)
93210-44545-00
Unavailable
34
PIN, GUIDE
4CW-17664-00-00
Unavailable
35
SPRING, COMPRESSION
90501-650A0-00
Unavailable
36
SEAT, SECONDARY SPRING
4WV-17684-00-00
Unavailable
37
SEAT, SPRING
4WV-17644-00-00
Unavailable
38
NUT (5G3)
90170-36279-00
Unavailable
39
NUT
90179-16005-00
Unavailable
