Description

Price

1

CAMSHAFT ASSY 1

2MB-E2170-00-00

$454.99

2

BEARING, CAMSHAFT

2MB-E2179-00-00

Unavailable

3

SPROCKET, CAM CHAI

2MB-E2176-00-00

Unavailable

4

CAMSHAFT ASSY 2

2MB-E2180-01-00

$755.99

5

BEARING, CAMSHAFT

2MB-E2179-00-00

Unavailable

6

SPROCKET, CAM CHAI

2MB-E2177-00-00

Unavailable

7

PIVOT

2MB-H431W-00-00

Unavailable

8

PIN, DECOMPRESSION

2MB-E2284-00-00

$4.73

9

SPRING, DECOMPRESSION

2MB-E2287-01-00

$4.68

10

WEIGHT

2MB-E217A-00-00

Unavailable

11

CIRCLIP

2MB-E2842-00-00

$4.06

12

CHAIN ASSY

2MB-E2190-00-00

$199.99

13

TENSIONER ASSY, CA

2MB-E2210-00-00

$421.99

14

GASKET, TENSIONER

2MB-E2213-00-00

$1.51

15

BOLT 1

2MB-E5481-20-00

Unavailable

16

BOLT 1

2MB-E5481-00-00

Unavailable

17

GASKET

2MB-E21E2-00-00

Unavailable

18

DAMPER, CHAIN 1

2MB-E2251-00-00

Unavailable

19

DAMPER, CHAIN 2

2MB-E2252-00-00

Unavailable

20

BOLT 2

2MB-E5482-00-00

Unavailable

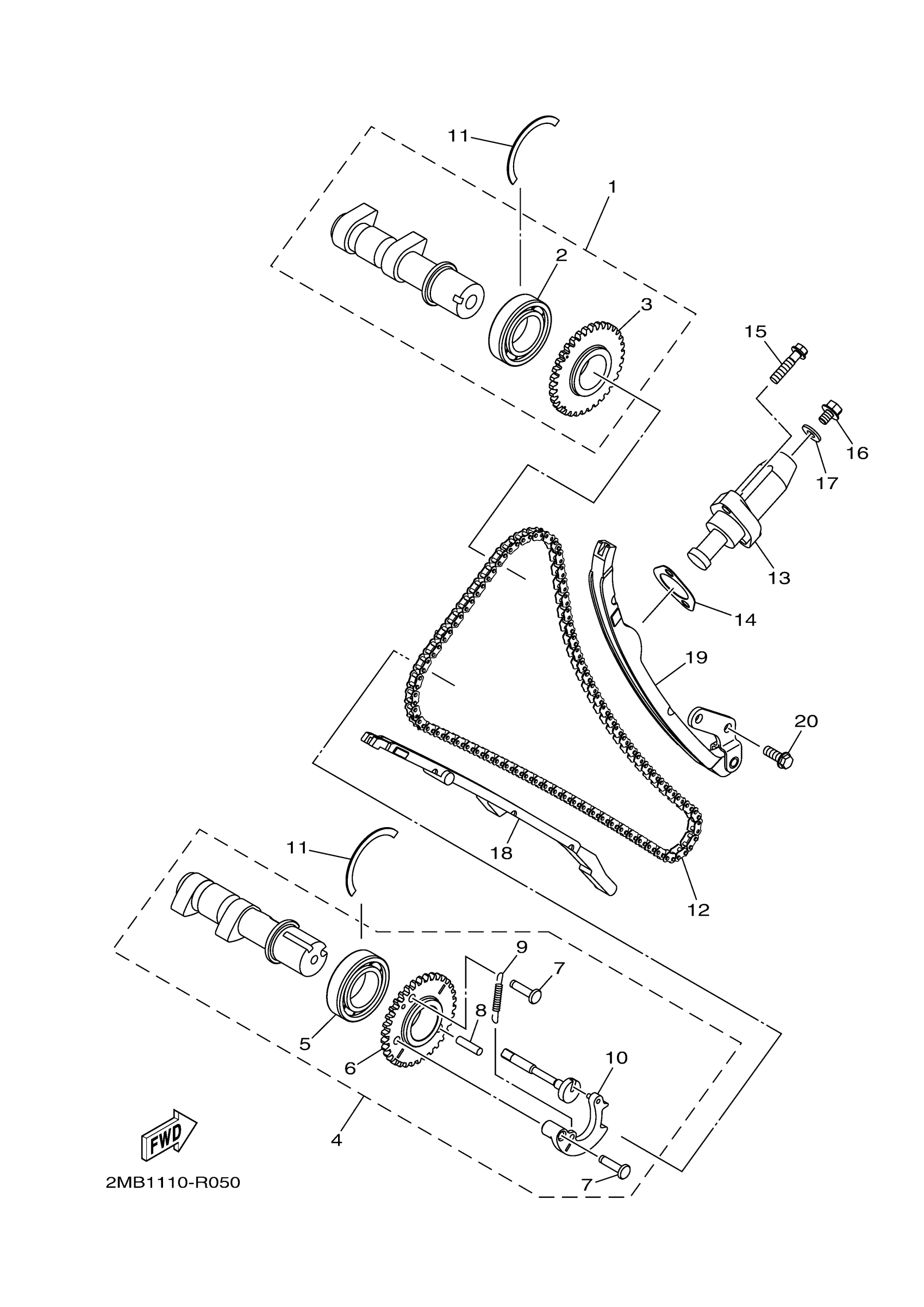

Yamaha YXE70WDBGH (WOLVERINE HUNTER) B353 2016 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

BEARING, CAMSHAFT

SPROCKET, CAM CHAI

CAMSHAFT ASSY 2

BEARING, CAMSHAFT

SPROCKET, CAM CHAI

PIVOT

PIN, DECOMPRESSION

SPRING, DECOMPRESSION

WEIGHT

CIRCLIP

CHAIN ASSY

TENSIONER ASSY, CA

GASKET, TENSIONER

BOLT 1

BOLT 1

GASKET

DAMPER, CHAIN 1

DAMPER, CHAIN 2

BOLT 2
