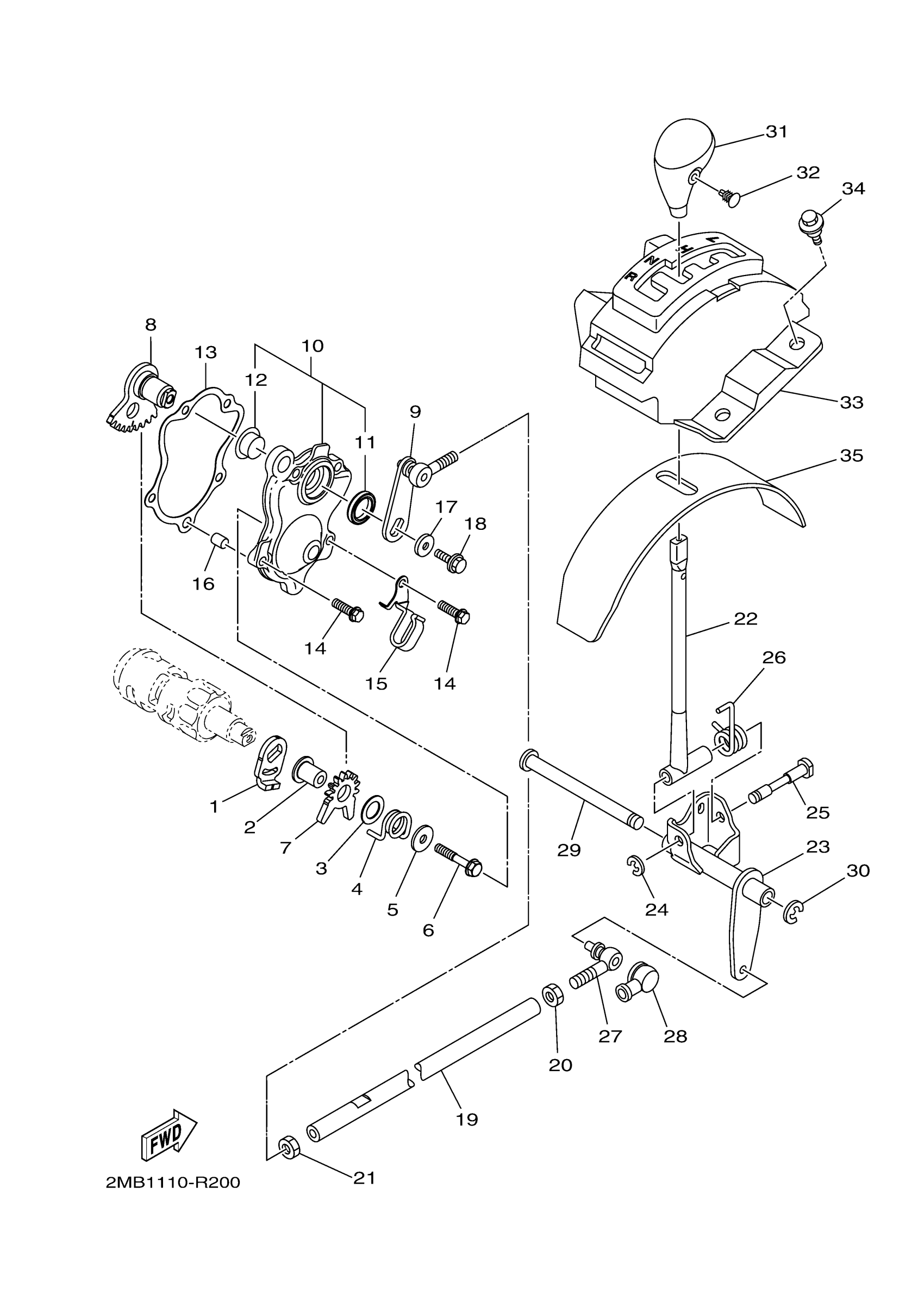

Yamaha YXE70WDBGG (WOLVERINE) B351 2016 SHIFT SHAFT Diagram
#
1
LEVER
2MB-E8198-00-00
$7.99
2
COLLAR, SHIFTER
2MB-E8413-00-00
Unavailable
3
WASHER 1
2MB-E8137-00-00
Unavailable
4
SPRING
2MB-E8183-00-00
Unavailable
5
WASHER 2
2MB-E8138-00-00
$3.07
6
BOLT 2
2MB-E5482-20-00
Unavailable
7
LEVER
2MB-E8191-00-00
Unavailable
8
SHIFT SHAFT COMP.
2MB-E8103-00-00
$86.99
9
SHIFT GUIDE COMP.
2MB-18104-00-00
$44.99
10
SHIFTER BRKT. ASSY
2MB-E8380-00-00
Unavailable
11
OIL SEAL 2
2MB-E76G3-00-00
$11.99
12
SPACER 2
3B4-18582-00-00
Unavailable
13
GASKET
2MB-E8146-00-00
$2.13
14
BOLT 1
2MB-E5481-10-00
$1.04
15
CLAMP 2
2MB-E261G-00-00
Unavailable
16
PIN, DOWEL
2MB-E8438-00-00
Unavailable
17
WASHER, PLATE
90201-06036-00
Unavailable
18
BOLT, FLANGE
90105-06175-00
Unavailable
19
ROD, SHIFT
2MB-18115-00-00
Unavailable
20
NUT(1KT)
90170-08358-00
Unavailable
21
. NUT
95380-08700-00
Unavailable
22
LEVER COMP. 1
1XD-E8190-10-00
Unavailable
23
ARM, SHIFT 2
2MB-E8169-00-00
Unavailable
24
CIRCLIP(53L)
99001-06600-00
Unavailable
25
SHAFT, SHIFT
1HP-E8125-00-00
Unavailable
26
SPRING, RETURN
1HP-E8196-00-00
Unavailable
27
JOINT 2
1KT-18157-00-00
Unavailable
28
COVER, DUST
2H9-18154-00-00
Unavailable
29
PIN, SHIFT
2MB-18173-00-00
Unavailable
30
CIRCLIP(2R6)
99001-08600-00
Unavailable
31
KNOB, SHIFT LEVER
28P-18174-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
GUIDE, SHIFT
1XD-E8172-00-00
Unavailable
34
BOLT
90109-06172-00
Unavailable
35
COVER, DUST
1HP-E8154-01-00
Unavailable
