Description

Price

1

SUPPORT, ROOF 3

1XD-K831A-00-00

$247.99

2

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

3

NUT, SELF-LOCKING

90185-10011-00

$5.60

4

BOLT, BUTTON HEAD

92012-10070-00

$3.76

5

NUT, SELF-LOCKING

90185-10011-00

$5.60

6

WASHER 2

1XD-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

1XD-K831E-00-00

$227.99

8

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

9

NUT, SELF-LOCKING

90185-10011-00

$5.60

10

BOLT, BUTTON HEAD

92012-10070-00

$3.76

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

WASHER 2

1XD-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

2MB-K8392-00-00

$81.99

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

MEMBER, ROOF FRAME

2MB-K8393-00-00

$77.99

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

ROOF SUPPORT ASSY

B35-K830A-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

19

ROOF SUPPORT ASSY 2

2MB-K830B-00-00

Unavailable

20

BOLT, FLANGE

95812-10016-00

Unavailable

21

BOLT, BUTTON HEAD

92012-10060-00

Unavailable

22

NUT, SELF-LOCKING

90185-10011-00

$5.60

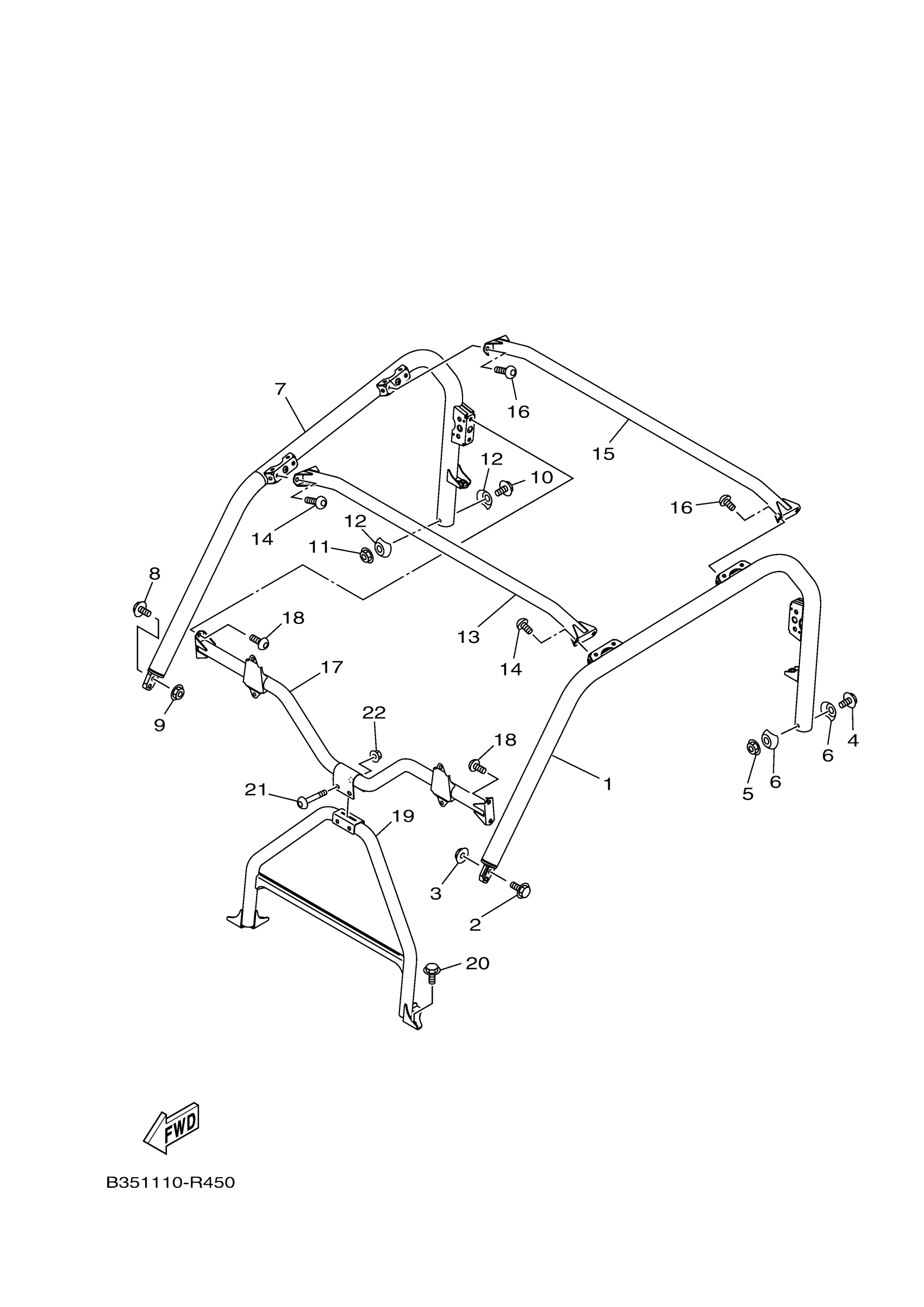

Yamaha YXE70WDBGG (WOLVERINE) B351 2016 GUARD 2 Diagram

SUPPORT, ROOF 3

BOLT, FLANGE (8V9)

NUT, SELF-LOCKING

BOLT, BUTTON HEAD

NUT, SELF-LOCKING

WASHER 2

SUPPORT, ROOF 4

BOLT, FLANGE (8V9)

NUT, SELF-LOCKING

BOLT, BUTTON HEAD

NUT, SELF-LOCKING

WASHER 2

MEMBER, ROOF FRAME

BOLT,HEX. SOCKET B

MEMBER, ROOF FRAME

BOLT,HEX. SOCKET B

ROOF SUPPORT ASSY

BOLT,HEX. SOCKET B

ROOF SUPPORT ASSY 2

BOLT, FLANGE

BOLT, BUTTON HEAD

NUT, SELF-LOCKING
