- YXE70WDBGG (WOLVERINE) B351 2016
CYLINDER HEAD

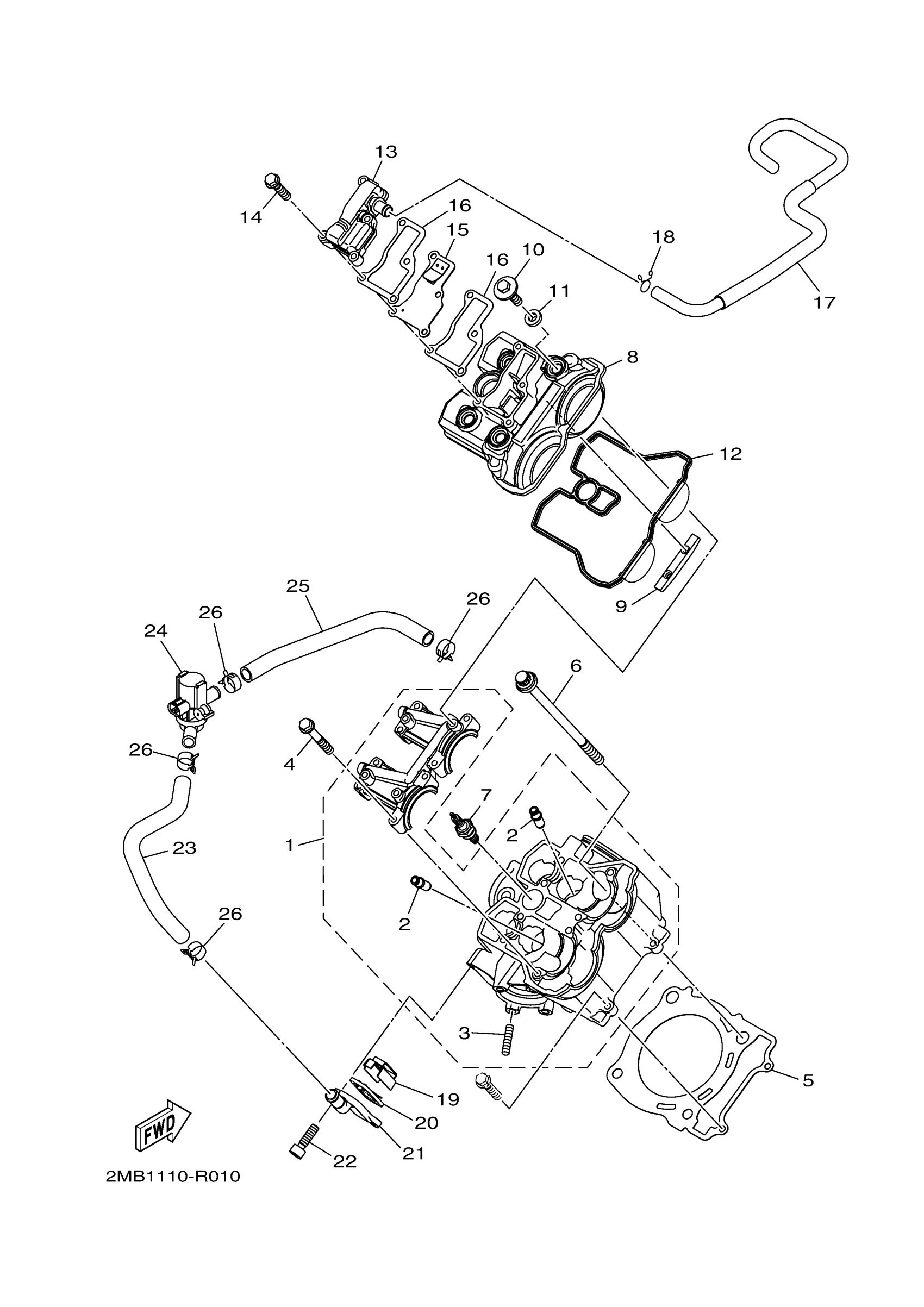

Yamaha YXE70WDBGG (WOLVERINE) B351 2016 CYLINDER HEAD Diagram
#
Description
Price
1
CYLINDER HEAD ASSY
2MB-E1102-00-00
$938.99
2
GUIDE, VALVE 1
2MB-E1133-10-00
$37.99
3
BOLT, STUD
2MB-E1179-00-00
$6.99
4
BOLT 1
2MB-E5481-80-00
$3.28
5
GASKET, CYLINDER H
2MB-E1181-00-00
$40.99
6
BOLT, CYLINDER HOL
2MB-E1361-00-00
$27.99
7
PLUG, SPARK (NGK CPR7EA)
CPR-7EA90-00-00
Unavailable
8
COVER, CYLINDER HE
2MB-E1191-00-00
Unavailable
9
GUIDE, STOPPER 2
2MB-E2241-00-00
$5.49
10
BOLT
2MB-E4446-00-00
$6.99
11
RUBBER, MOUNT 1
2MB-E111G-00-00
$7.99
12
GASKET, HEAD COVER
2MB-E1193-00-00
$36.99
13
BREATHER ASSY
2MB-E1160-00-00
Unavailable
14
BOLT 1
2MB-E5481-20-00
Unavailable
15
REED VALVE ASSY
2MB-E3610-00-00
Unavailable
16
GASKET, COVER
2MB-E131B-00-00
Unavailable
17
PIPE, BREATHER 1
2MB-E1166-00-00
Unavailable
18
CLIP
90467-140A4-00
Unavailable
19
PLATE
2MB-E482K-00-00
Unavailable
20
REED VALVE ASS
5JW-14890-00-00
Unavailable
21
CAP, CASE
2MB-E4889-00-00
Unavailable
22
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
23
HOSE, BEND 1
1XD-E4881-00-00
Unavailable
24
AIR CUT VALVE ASSY
2MB-14840-00-00
Unavailable
25
HOSE, BEND 2
1XD-E4882-00-00
Unavailable
26
CLIP(3TB)
90467-17128-00
Unavailable
