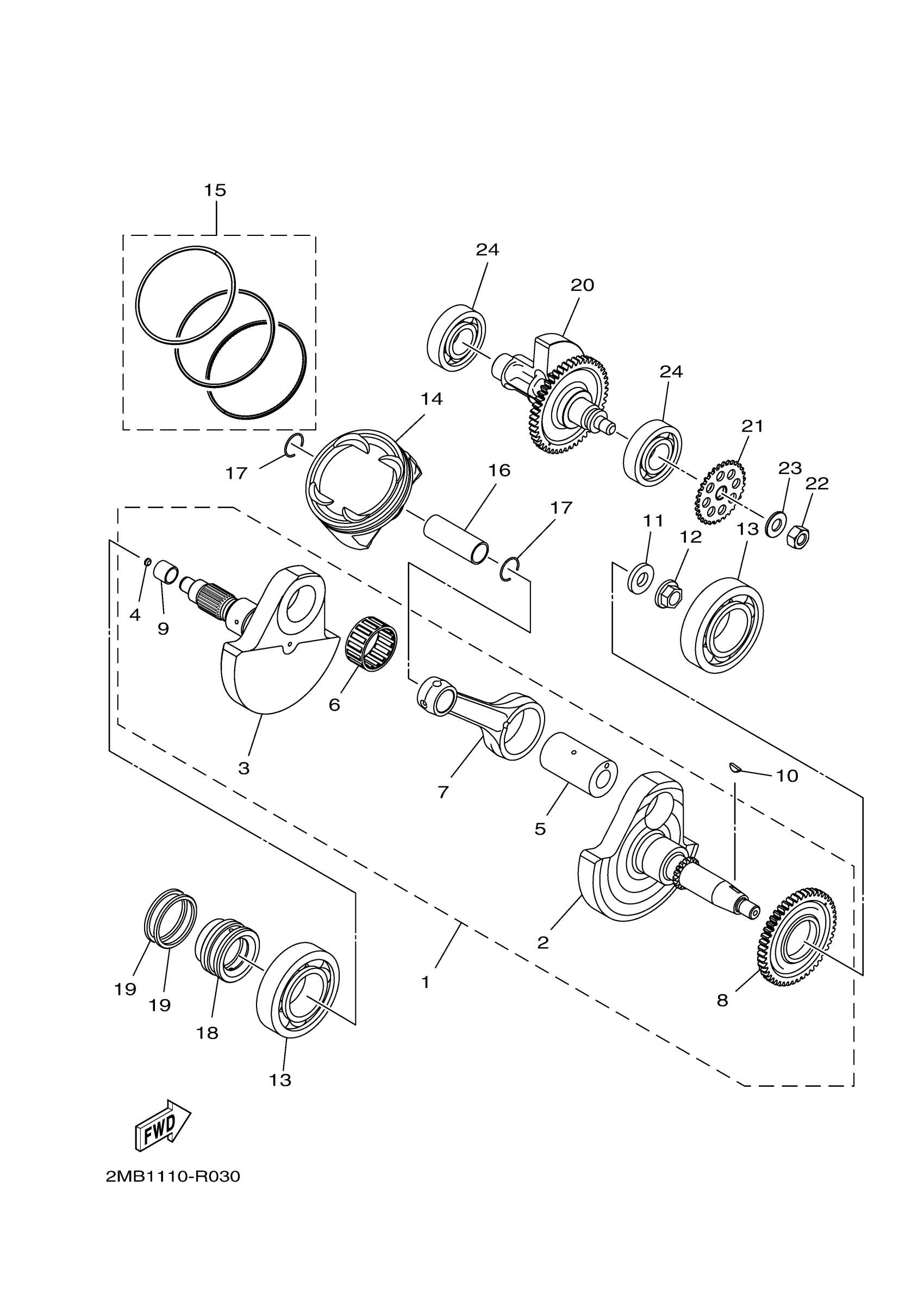

Yamaha YXE70WDBGG (WOLVERINE) B351 2016 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

2MB-E1400-00-00

$873.99

2

CRANK 1

2MB-E1412-10-00

Unavailable

3

CRANK 2

2MB-E1422-10-00

$480.99

4

PLUG, CRANK

2MB-E1446-00-00

Unavailable

5

PIN, CRANK 1

2MB-E1681-10-00

$113.99

6

BEARING ASSY 1

2MB-E1415-00-00

$109.99

7

ROD, CONNECTING

2MB-E1651-10-00

Unavailable

8

GEAR, DRIVE

2MB-E1536-00-00

Unavailable

9

RACE, INNER

2MB-G6122-00-00

Unavailable

10

KEY, WOODRUFF

2MB-E1545-00-00

$2.70

11

WASHER 1

2MB-E1557-00-00

Unavailable

12

NUT, CRANKSHAFT 1

2MB-E1555-00-00

Unavailable

13

BEARING ASSY 2

2MB-E1425-00-00

$109.99

14

PISTON (STD)

2MB-E1631-00-00

$140.99

14

PISTON (0.25MM O/S

2MB-E1635-00-00

$141.99

14

PISTON (0.50MM O/S

2MB-E1636-00-00

Unavailable

15

PISTON RING SET (STD)

2MB-E1603-10-00

Unavailable

15

PISTON RING SET (0.25MM O/S)

2MB-E1604-10-00

Unavailable

15

PISTON RING SET (0.50MM O/S)

2MB-E1605-10-00

Unavailable

16

PIN, PISTON

2MB-E1633-10-00

Unavailable

17

CLIP, PISTON PIN

2MB-E1634-00-00

Unavailable

18

SPACER 1

2MB-E6181-00-00

Unavailable

19

SEAL, CRANK

3B4-11447-00-00

Unavailable

20

BALANCER ASSY

2MB-E1500-00-00

Unavailable

21

SPROCKET, DRIVE

2MB-E3354-00-00

Unavailable

22

NUT, SPECIAL

2MB-E1459-00-00

Unavailable

23

WASHER, WEIGHT 1

2MB-E1483-00-00

Unavailable

24

BEARING ASSY 3

2MB-E1436-00-00

Unavailable
