Description

Price

1

HOSE 7

B1R-E2551-00-00

$10.49

2

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

3

JOINT 1

B4D-E2469-00-00

$10.49

4

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

5

O-RING

93210-33006-00

$4.72

6

THERMOSTAT ASSY

BG4-12410-01-00

$41.99

7

COVER ASSEMBLY

B1R-E240H-00-00

$17.99

8

GASKET 256113960000

90430-06014-00

Unavailable

9

BOLT, FLANGE

95022-06010-00

$5.60

10

BOLT, FLANGE

95817-06020-00

$3.81

11

HOSE 1

BG4-E2576-00-00

$9.49

12

HOSE 2

BG4-E2577-00-00

$33.99

13

HOSE 3

BG4-E2578-00-00

$42.99

14

HOSE 4

BG4-E2579-00-00

$14.99

15

CLAMP

1NS-F1338-00-00

$3.33

16

PIPE 3

BG4-E2483-00-00

Unavailable

17

PIPE, WATER

BG4-E2564-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-35001-00

Unavailable

19

CLAMP

90461-12801-00

Unavailable

20

BOLT, FLANGE

90105-06831-00

Unavailable

21

BOLT, FLANGE

95022-06008-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable

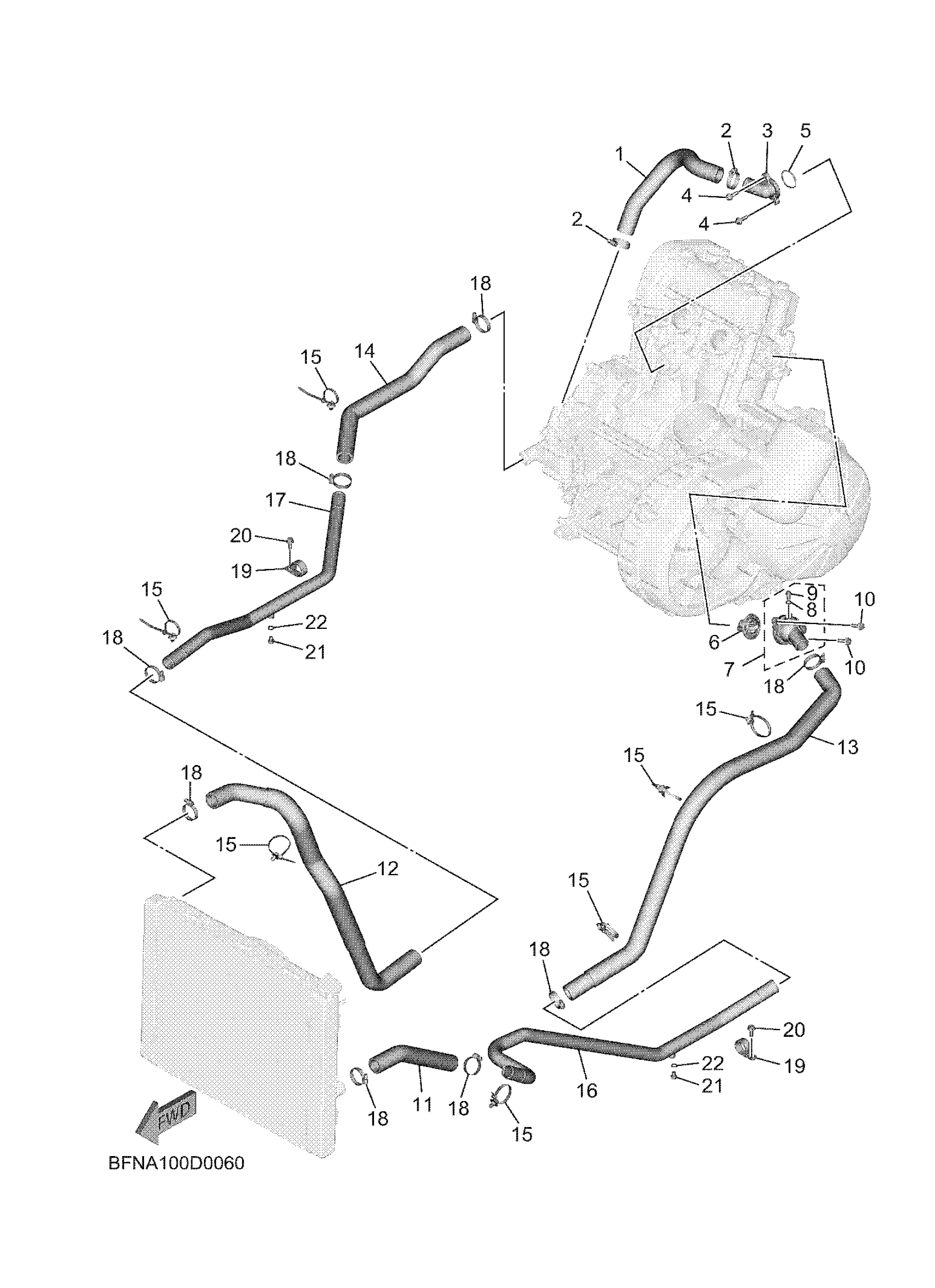

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 WATER PUMP Diagram

HOSE 7

HOSE CLAMP ASSY(3GM)

JOINT 1

BOLT, HEXAGON SOCKET HEAD

O-RING

THERMOSTAT ASSY

COVER ASSEMBLY

GASKET 256113960000

BOLT, FLANGE

BOLT, FLANGE

HOSE 1

HOSE 2

HOSE 3

HOSE 4

CLAMP

PIPE 3

PIPE, WATER

HOSE CLAMP ASSY

CLAMP

BOLT, FLANGE

BOLT, FLANGE

GASKET 256113960000
