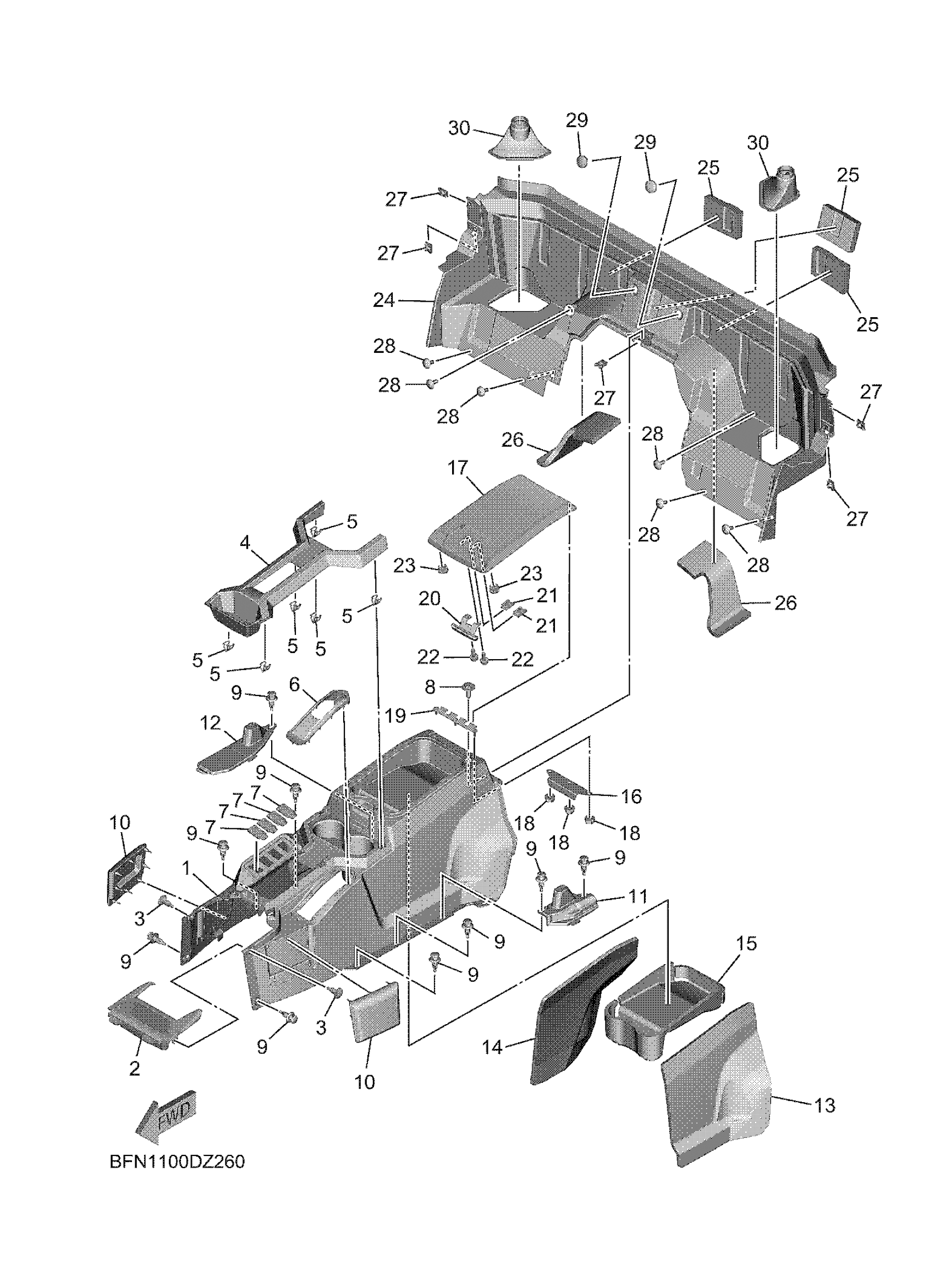

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 SIDE COVER 3 Diagram

#

Description
Price

1

COVER 1

B4J-F8219-01-00

$84.05

2

COVER, TOP

BFN-F171A-00-00

$11.86

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

COVER, TOP

B4J-F171A-70-00

Unavailable

5

CLIP

90468-040A0-00

$5.81

6

COVER,HANDLE LEVER

B4J-F6372-01-00

$5.98

7

PLUG, HOLE

BG4-F312G-00-00

$1.51

8

BOLT, WITH WASHER

90119-06226-00

$2.12

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

PAD 1

B4J-K7151-02-00

$26.06

11

PLATE, RUBBER 4

BG4-F8499-00-00

$5.48

12

PLATE, RUBBER 3

BG4-F8485-00-00

$10.91

13

INSU. , 2

B4J-H272M-00-00

$19.36

14

INSULATOR, 1

B4J-H272L-00-00

$18.05

15

INSULATOR 3

B4J-F172S-00-00

$17.24

16

BRACKET, HINGE

B4J-F114B-00-00

Unavailable

17

LID 2

BFN-F177J-01-00

Unavailable

18

NUT, U FLANGE

95604-06200-00

Unavailable

19

HINGE, CAP

BFN-F464F-00-00

Unavailable

20

LATCH

B4J-F389E-00-00

Unavailable

21

NUT, SPRING

90183-062A1-00

Unavailable

22

BOLT, FLANGE

95812-06014-00

Unavailable

23

GROMMET

90480-10003-00

Unavailable

24

COVER,REAR PURPBLU

B8K-F2866-01-00

Unavailable

25

INSULATOR, SIDE CO

B8K-F174A-00-00

Unavailable

26

INSULATOR, SIDE CO

B8K-F174T-00-00

Unavailable

27

NUT, SPRING

90183-062A1-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

29

PLUG

90338-18266-00

Unavailable

30

PLATE, RUBBER 5

B8K-F845J-01-00

Unavailable
