- YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026
SIDE COVER

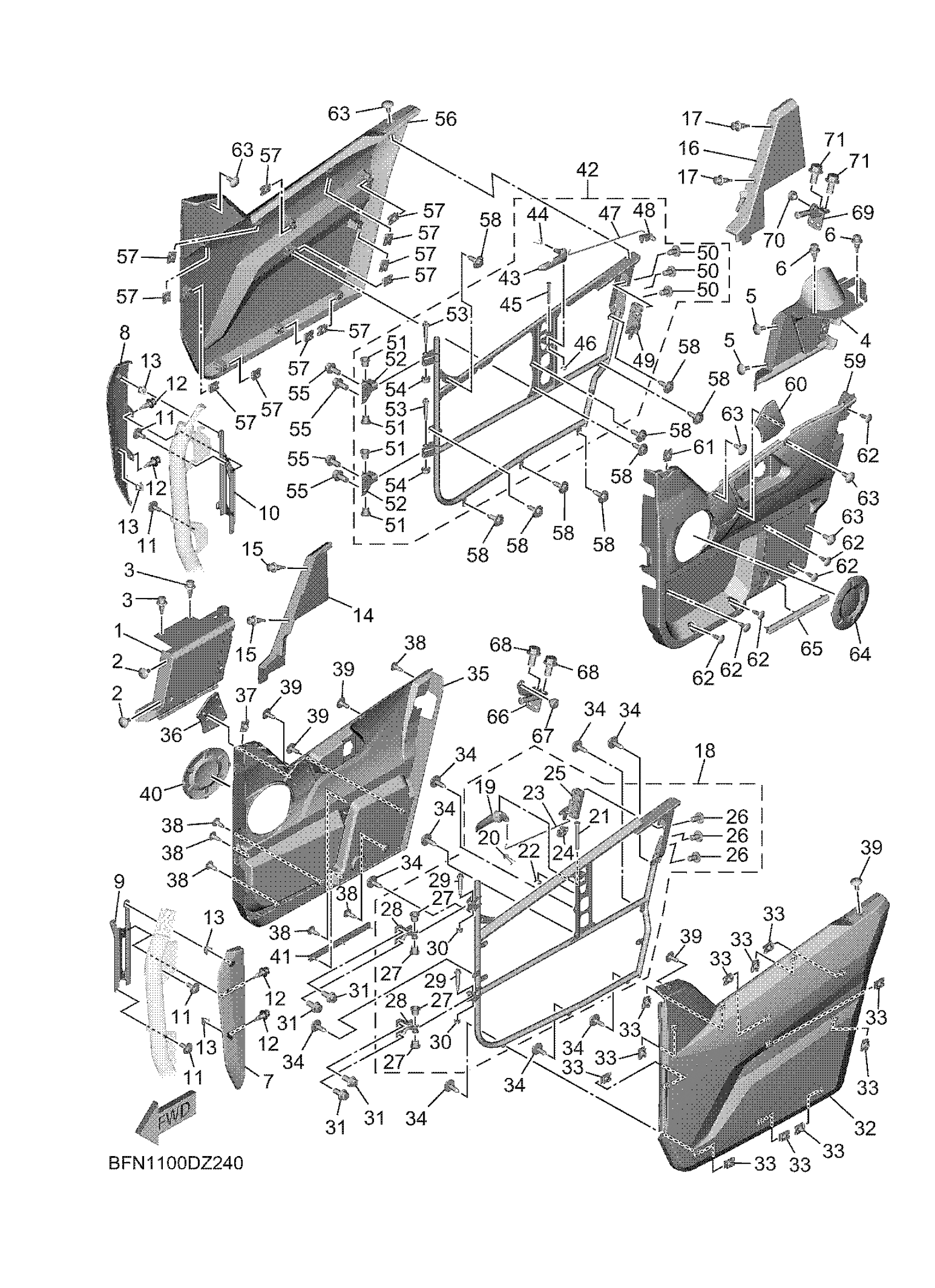

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 SIDE COVER Diagram
#
1
COVER, SIDE 2
B4J-F1721-01-00
$109.99
2
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
COVER, SIDE 3
B4J-F1731-00-00
$21.99
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
6
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
7
COVER 1
BAR-F198F-40-00
$22.99
8
COVER 2
BAR-F198G-40-00
$22.99
9
STAY, SIDE COVER 1
BAR-F172E-00-00
$18.99
10
STAY, SIDE COVER 2
BAR-F174E-00-00
$18.99
11
BOLT, WITH WASHER
90119-06200-00
Unavailable
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
CLIP
90468-040A0-00
$8.49
14
COVER, SIDE 1
BAN-F2864-00-00
$13.99
15
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
16
COVER, SIDE 2
BAN-F2868-00-00
Unavailable
17
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
18
FF. DOOR COMP. LH
B4J-K8504-01-00
Unavailable
19
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
20
SPRING
2HC-F1742-00-00
Unavailable
21
. PIN
90249-05801-00
Unavailable
22
CIRCLIP (EU0)
99080-04600-00
Unavailable
23
ROD 1
B4J-F7247-00-00
Unavailable
24
CLIP, CABLE
BG4-F2805-01-00
Unavailable
25
LOCK ASSY
B4J-F16A0-02-00
Unavailable
26
SCREW
90149-08805-00
Unavailable
27
BUSH, SOLID
90381-08001-00
Unavailable
28
HINGE
B4J-F1796-01-00
Unavailable
29
BOLT
90109-068C9-00
Unavailable
30
NUT, U FLANGE
95604-06200-00
Unavailable
31
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
32
TRIM, SIDE PANEL 1
BAR-K817H-60-00
Unavailable
33
NUT, SPRING
90183-062A1-00
Unavailable
34
BOLT, WITH WASHER
90119-06226-00
Unavailable
35
PNL., DOOR FR. LH
B4J-K8557-00-00
Unavailable
36
PROTECTOR 1
B4J-K811V-01-00
Unavailable
37
NUT, SPRING
90183-062A1-00
Unavailable
38
RIVET(8AB)
90269-05073-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
40
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
41
SEAL 2
B4J-F1735-00-00
Unavailable
42
FF. DOOR COMP. RH
B4J-K8505-01-00
Unavailable
43
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
44
SPRING
2HC-F1742-00-00
Unavailable
45
. PIN
90249-05801-00
Unavailable
46
CIRCLIP (EU0)
99080-04600-00
Unavailable
47
ROD 2
B4J-F7248-00-00
Unavailable
48
CLIP, CABLE
BG4-F2805-01-00
Unavailable
49
LOCK ASSY 2
B4J-F16B0-02-00
Unavailable
50
SCREW
90149-08805-00
Unavailable
51
BUSH, SOLID
90381-08001-00
Unavailable
52
HINGE
B4J-F1796-01-00
Unavailable
53
BOLT
90109-068C9-00
Unavailable
54
NUT, U FLANGE
95604-06200-00
Unavailable
55
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
56
TRIM, SIDE PANEL 2
BAR-K817J-60-00
Unavailable
57
NUT, SPRING
90183-062A1-00
Unavailable
58
BOLT, WITH WASHER
90119-06226-00
Unavailable
59
PNL., DOOR FR. RH
B4J-K8558-00-00
Unavailable
60
PROTECTOR 1
B4J-K811V-01-00
Unavailable
61
NUT, SPRING
90183-062A1-00
Unavailable
62
RIVET(8AB)
90269-05073-00
Unavailable
63
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
64
LINING, SIDE COVER
B4J-F171J-00-00
Unavailable
65
SEAL 2
B4J-F1735-00-00
Unavailable
66
HOOK, SIDE COVER 1
B4J-F1331-01-00
Unavailable
67
PLUG
90338-10801-00
Unavailable
68
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
69
HOOK, SIDE COVER 2
B4J-F1332-01-00
Unavailable
70
PLUG
90338-10801-00
Unavailable
71
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
