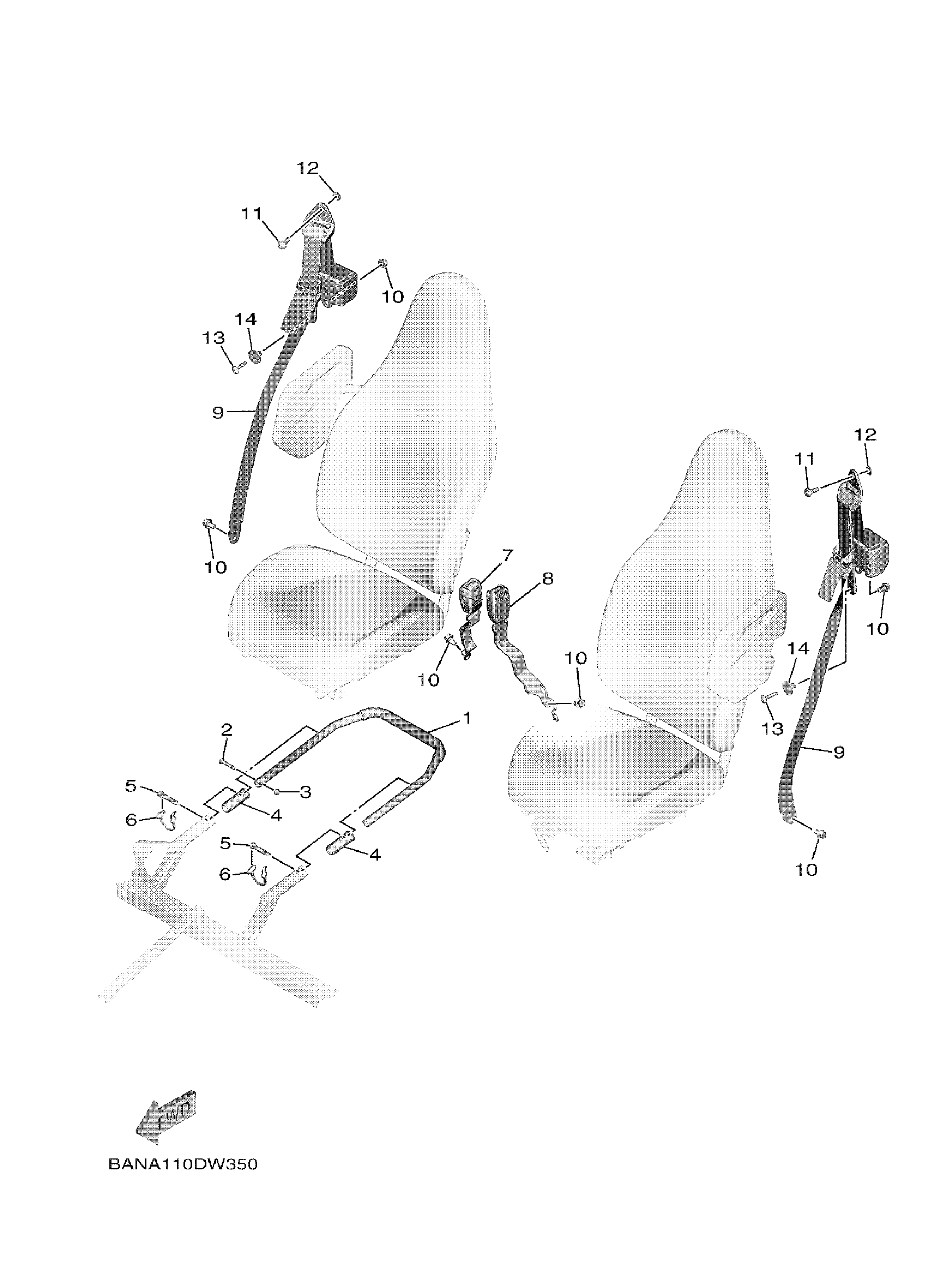

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 SEAT 2 Diagram

#

Description
Price

1

ASSIST GRIP ASSY.,

2MB-F470J-00-00

$98.99

2

BOLT

90101-06824-00

$3.24

3

NUT, SELF-LOCKING

95617-06100-00

$8.49

4

BUSH, CAP

1XD-F467K-00-00

Unavailable

5

PIN, LOCK

1XD-F5926-00-00

Unavailable

6

SNAP, PIN

1XD-F311F-00-00

$7.99

7

FR. BELT RECEIVER

B4J-F470R-01-00

$73.99

8

FR. BELT RECEIVER

B4J-F470R-12-00

$109.99

9

FR. SEAT BELT ASSY

B4J-F470L-02-00

$170.99

10

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.34

11

BOLT,HEX. SOCKET B

90111-11800-00

$2.65

12

WASHER, PLATE (583)

90201-12593-00

$9.49

13

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

Unavailable

14

COLLAR (17W)

90387-075H4-00

$8.49
