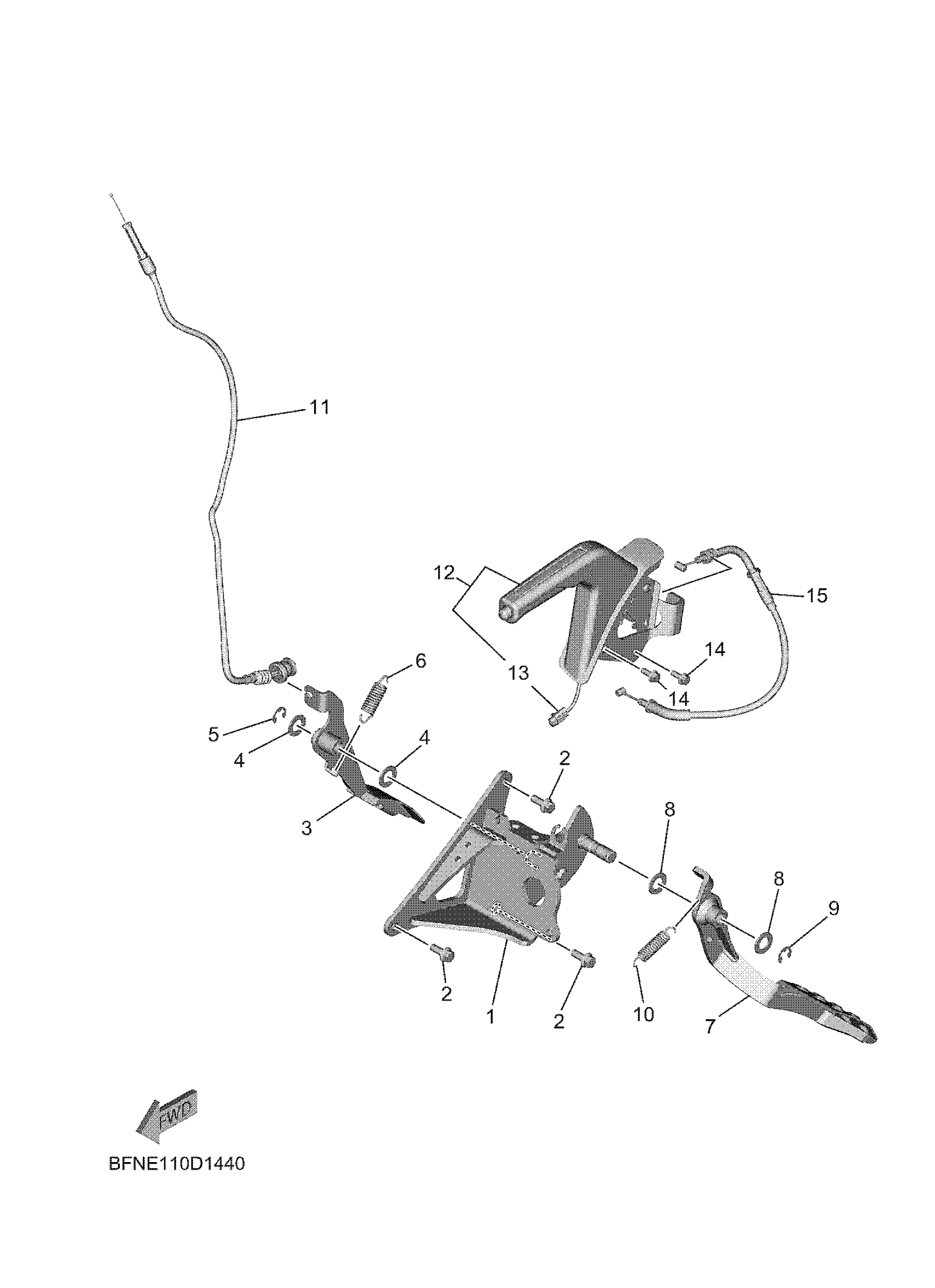

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 PEDAL WIRE Diagram

#

Description

Price

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$61.99

2

BOLT, FLANGE

95812-08020-00

$2.80

3

ACCEL PEDAL ASSY

B4J-F7801-00-00

$28.99

4

WASHER, PLATE

90201-15018-00

$7.49

5

CIRCLIP (122)

93430-12008-00

$8.49

6

SPRING, TENSION

90506-23023-00

$5.49

7

PEDAL, BRAKE

B4J-F7200-00-00

Unavailable

8

WASHER, PLATE

90201-15018-00

$7.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

SPRING, TENSION (2X4)

90506-20192-00

$7.49

11

WIRE, THROTTLE 1

B4J-26311-00-00

$48.99

12

PARKING LEVER ASSY

B4J-F5690-01-00

$155.99

13

SWITCH COMP.

B4J-H251S-00-00

Unavailable

14

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$1.49

15

WIRE, BRAKE 1

B4J-26341-02-00

$36.99
