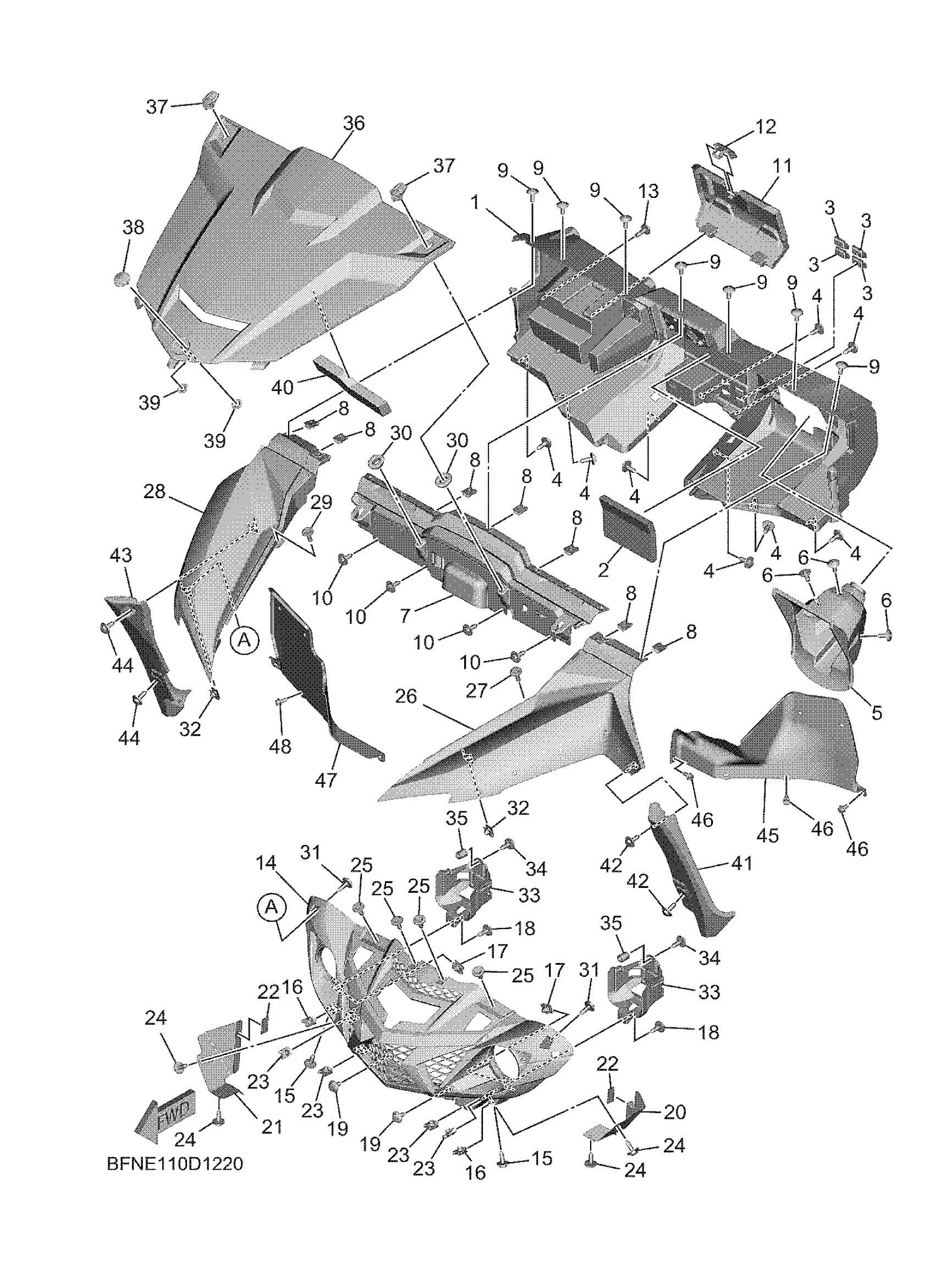

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

BAR-K7711-01-00

$209.99

2

INSULATOR 4

B8K-F173S-00-00

$8.49

3

PLUG, HOLE

BG4-F312G-00-00

Unavailable

4

BOLT, WITH WASHER

90119-06226-00

$8.49

5

COVER, STEERING

BG4-F3818-00-00

$18.99

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

COVER, FRONT

BG4-F2865-00-00

$33.99

8

NUT, SPRING

90183-062A1-00

$1.96

9

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

LID

BG4-F160F-00-00

$13.49

12

LOCK

F2X-U2875-00-00

Unavailable

13

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

14

GRILLE, FRONT

BG4-F8309-11-00

$85.99

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

NUT, SPRING

90183-062A1-00

$1.96

17

NUT, SPRING

90183-062A1-00

$1.96

18

BOLT, WITH WASHER

90119-06226-00

$8.49

19

BOLT

90109-06202-00

Unavailable

20

COVER 1

BFN-E246A-00-00

Unavailable

21

COVER 2

BG4-E246E-00-00

Unavailable

22

DAMPER

5UG-K7588-01-00

Unavailable

23

NUT, SPRING

90183-062A1-00

$1.96

24

BOLT, WITH WASHER

90119-06226-00

$8.49

25

BOLT, WITH WASHER

90119-06226-00

$8.49

26

FENDER, FRONT

BG4-F1511-70-00

Unavailable

27

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

28

FENDER, FRONT 2

BG4-F1556-70-00

Unavailable

29

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

30

GROMMET(4DN)

90480-01558-00

Unavailable

31

BOLT, WITH WASHER

90119-06226-00

$8.49

32

NUT, SPRING

90183-062A1-00

$1.96

33

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

34

BOLT, WITH WASHER

90119-06226-00

$8.49

35

HOSE

90445-08029-00

Unavailable

36

HOOD 1

BG4-F1982-90-00

Unavailable

37

LEVER, LOCK

1XD-2175K-10-00

Unavailable

38

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

39

NUT, SPRING

90183-06071-00

Unavailable

40

DAMPER, PLATE

90520-50004-00

Unavailable

41

EXTENSION, FRONT FENDER 1

BFN-K8185-10-00

Unavailable

42

BOLT, WITH WASHER

90119-06226-00

$8.49

43

EXTENSION, FRONT FENDER 2

BFN-K8186-10-00

Unavailable

44

BOLT, WITH WASHER

90119-06226-00

$8.49

45

PROTECTOR 1

BFN-F622K-01-00

Unavailable

46

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

47

PROTECTOR 2

BFN-F622L-01-00

Unavailable

48

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
