- YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026
FRONT DIFFERENTIAL

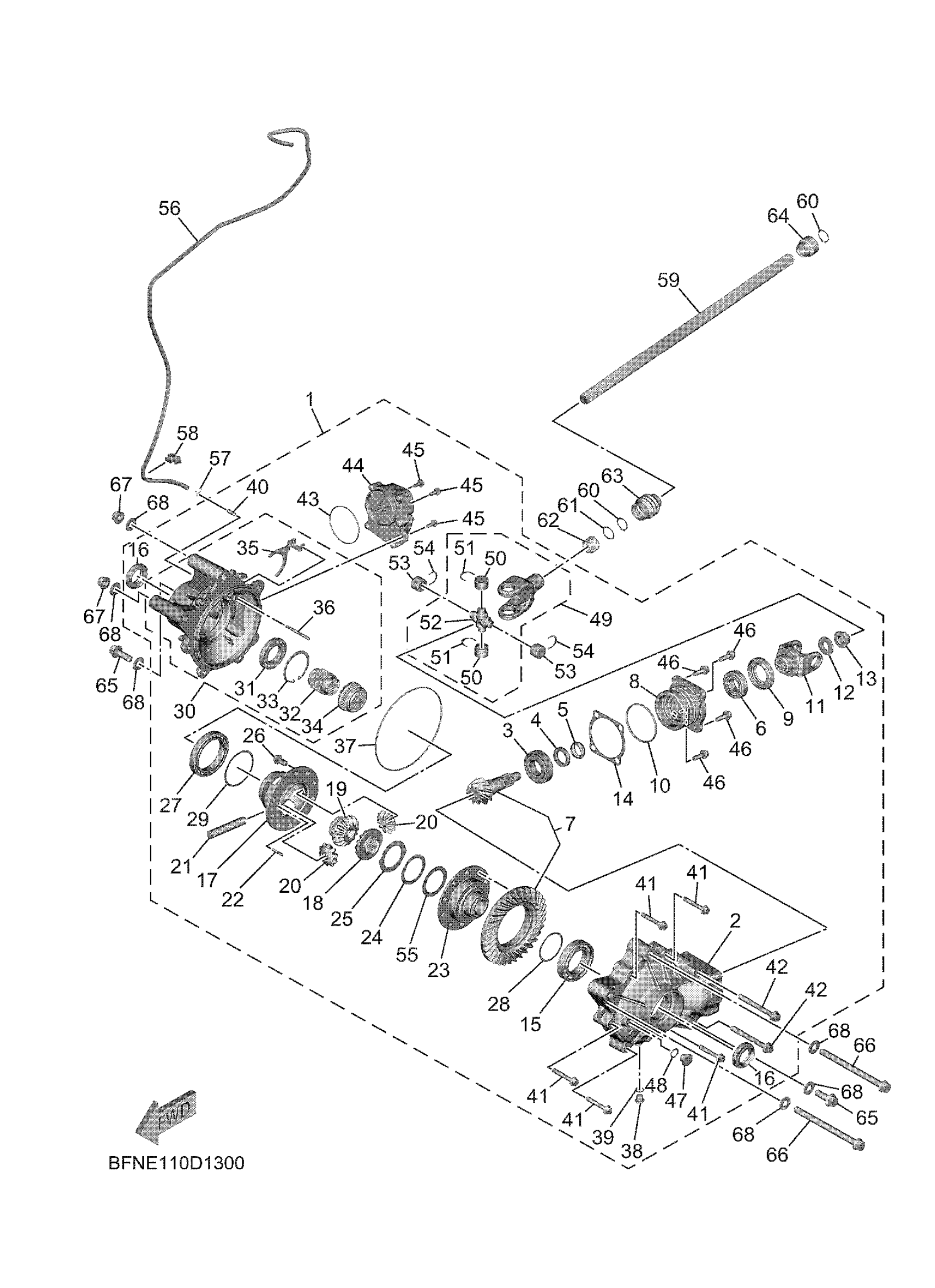

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 FRONT DIFFERENTIAL Diagram
#
1
FRONT AXLE GEAR CASE COMP.
B4J-46160-10-00
$2,119.99
2
HOUSING, SHAFT DRIVE 2
BG4-46161-00-00
Unavailable
3
BEARING (70E)
93332-00046-00
$53.99
4
WASHER, PLATE (1J7)
90201-25634-00
$11.49
5
SPACER, EXPANSION
3B4-46129-00-00
$7.99
6
BEARING TAPER 52-25 (70R)
93332-00053-00
Unavailable
7
. GEAR SET
B4J-45550-00-00
Unavailable
8
HOUSING, PINION BEARING
B4M-46144-00-00
$163.99
9
OIL SEAL(2HR)
93102-35380-00
$22.99
10
O-RING
93210-626A7-00
$14.99
11
YOKE, JOINT 2
BG4-46146-00-00
Unavailable
12
WASHER, PLATE(10L)
90201-165H4-00
$9.49
13
NUT
90179-16004-00
$15.99
14
SHIM, DRIVE PISTON (0.3T)
2HR-46127-00-30
$15.49
14
SHIM, DRIVE PISTON (0.3T)
2HR-46127-00-30
$15.49
14
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
14
SHIM, DRIVE PISTON (0.40T)
2HR-46127-00-40
Unavailable
14
SHIM, DRIVE PISTON (0.50T)
2HR-46127-00-50
Unavailable
14
SHIM, DRIVE PISTON (0.50T)
2HR-46127-00-50
Unavailable
15
BEARING
93306-01006-00
Unavailable
16
OIL SEAL
93102-30017-00
Unavailable
17
. CASE, DIFFERENTIAL 2
B4J-46412-10-00
Unavailable
18
GEAR (14T)
BG4-48232-00-00
Unavailable
19
GEAR 2 (14T)
BG4-48233-00-00
Unavailable
20
PINION, DIFFERENTIAL
BKP-46415-00-00
Unavailable
21
PIN, DIFFERENTIAL
B4J-46417-10-00
Unavailable
22
PIN, SPRING (6G0)
91690-40025-00
Unavailable
23
CASE, DIFFERENTIAL
BG4-46411-00-00
Unavailable
24
SPRING
BG4-42524-00-00
Unavailable
25
PLATE, FRICTION
BG4-42525-00-00
Unavailable
26
BOLT, FLANGE
90105-10471-00
Unavailable
27
BEARING
93306-91301-00
Unavailable
28
SHIM (0.25T)
BG4-46344-00-00
Unavailable
28
SHIM (0.30T)
BG4-46344-10-00
Unavailable
28
SHIM (0.35T)
BG4-46344-20-00
Unavailable
28
SHIM (0.40T)
BG4-46344-30-00
Unavailable
28
SHIM (0.45T)
BG4-46344-40-00
Unavailable
28
SHIM (0.50T)
BG4-46344-50-00
Unavailable
29
SHIM, RING GEAR (0.25T)
BG4-46117-00-00
Unavailable
29
SHIM, RING GEAR (0.30T)
BG4-46117-10-00
Unavailable
29
SHIM, RING GEAR (0.35T)
BG4-46117-20-00
Unavailable
29
SHIM, RING GEAR (0.40T)
BG4-46117-30-00
Unavailable
29
SHIM, RING GEAR (0.45T)
BG4-46117-40-00
Unavailable
29
SHIM, RING GEAR (0.50T)
BG4-46117-50-00
Unavailable
30
DRIVE SHAFT HOUSING COMP.
BG4-46150-00-00
Unavailable
31
BEARING
93316-00702-00
Unavailable
32
ADAPTER
BG4-46451-00-00
Unavailable
33
CIRCLIP(MF1)
99009-62500-00
Unavailable
34
CLUTCH, DOG
BG4-45816-00-00
Unavailable
35
FORK, SHIFT 2
BG4-45682-00-00
Unavailable
36
SHAFT, SHIFT
BG4-45692-00-00
Unavailable
37
O-RING(55X)
93211-63688-00
Unavailable
38
PLUG, STRAIGHT SCREW
90340-12007-00
Unavailable
39
GASKET(4BH)
90430-12219-00
Unavailable
40
. CONNECTOR, SUCTION PIPE
137-13115-01-00
Unavailable
41
BOLT, FLANGE
95817-08050-00
Unavailable
42
BOLT, FLANGE
95812-10100-00
Unavailable
43
O-RING (5G2)
93210-71462-00
Unavailable
44
SERVO MOTOR COMP
BG4-4616A-00-00
Unavailable
45
BOLT, FLANGE
95817-06016-00
Unavailable
46
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
47
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
48
GASKET
214-11198-01-00
Unavailable
49
CROSS JOINT COMP. 3
BG4-46108-00-00
Unavailable
50
BEARING
93399-99965-00
Unavailable
51
CIRCLIP
93440-23197-00
Unavailable
52
SPIDER
1YW-46187-10-00
Unavailable
53
BEARING
93399-99965-00
Unavailable
54
CIRCLIP
93440-23197-00
Unavailable
55
WASHER, PLATE
90201-46014-00
Unavailable
56
HOSE (L1200)
90445-080K8-00
Unavailable
57
CLIP (16G)
90467-08021-00
Unavailable
58
CLAMP
90464-12830-00
Unavailable
59
SHAFT, DRIVE 2
BFN-G6173-00-00
Unavailable
60
CIRCLIP(1EY)
99009-22400-00
Unavailable
61
WASHER, PLATE (3Y1)
90201-22793-00
Unavailable
62
SPRING, COMPRESSION(3HN)
90501-234F8-00
Unavailable
63
SEAL 1
BG4-46136-00-00
Unavailable
64
SEAL
BG4-42615-00-00
Unavailable
65
BOLT, FLANGE
95812-12035-00
Unavailable
66
BOLT, FLANGE
90105-12091-00
Unavailable
67
NUT, SELF-LOCKING
90185-12002-00
Unavailable
68
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
