- YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026
ELECTRICAL 2

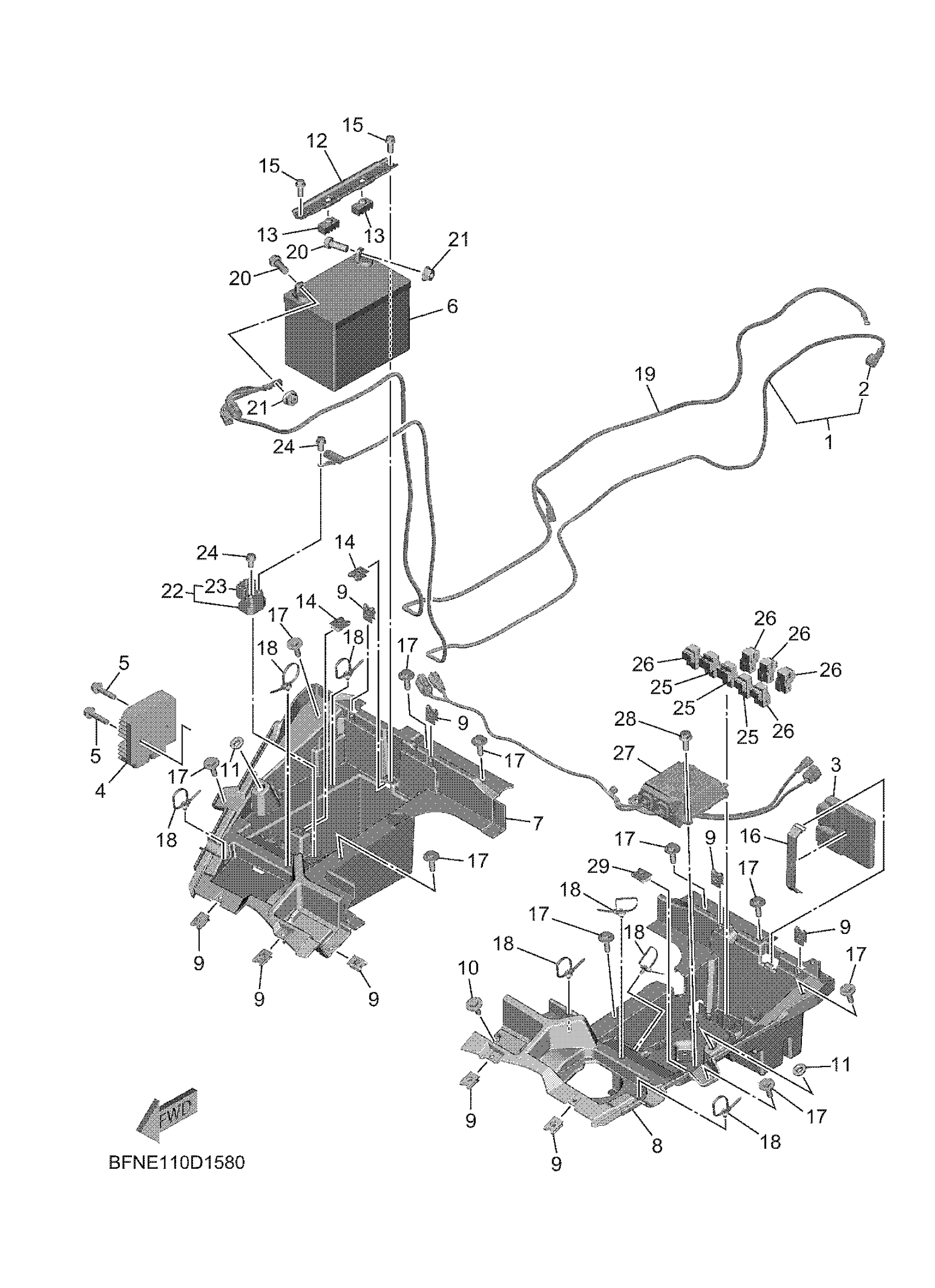

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 ELECTRICAL 2 Diagram
#
Description
Price
1
CORD, STARTER MOTOR
BKP-81815-00-00
Unavailable
2
CAP
4B5-81871-00-00
Unavailable
3
ENGINE CONTROL UNI
BFN-8591A-02-00
Unavailable
4
RECTIFIER & REGULATOR ASSY
BFN-81960-00-00
Unavailable
5
BOLT, FLANGE
90105-06833-00
$2.28
6
BATTERY ASSY (GS U1-H11L)
5UG-H2100-11-00
Unavailable
7
BOX, BATTERY 1
BG4-H212B-00-00
$81.99
8
PANEL, SWITCH
BG4-H2565-00-00
$92.99
9
NUT, SPRING
90183-062A1-00
$1.96
10
BOLT, WITH WASHER
90119-06226-00
$8.49
11
GROMMET(4DN)
90480-01558-00
$4.19
12
BRACKET, BATTERY
2HC-H2128-00-00
$10.49
13
PAD, SEAT
3C3-24741-00-00
$9.99
14
NUT, SPRING
90183-062A1-00
$1.96
15
BOLT, FLANGE
95022-06014-00
$3.14
16
BAND, BATTERY
5JJ-82131-00-00
Unavailable
17
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
18
CLAMP
1NS-F1338-00-00
Unavailable
19
WIRE, MINUS LEAD
BFN-82116-01-00
Unavailable
20
BOLT(6TD)
97080-08020-00
Unavailable
21
NUT
90179-08015-00
Unavailable
22
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
23
FUSE (10A)
42X-82151-00-00
Unavailable
24
BOLT, FLANGE
95022-06008-00
Unavailable
25
RELAY ASSY
5DM-81950-01-00
Unavailable
26
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
27
POWER STRG. CONT.
BFN-859A0-00-00
Unavailable
28
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
29
NUT, SPRING
90183-062A1-00
$1.96
