DRIVE SHAFT

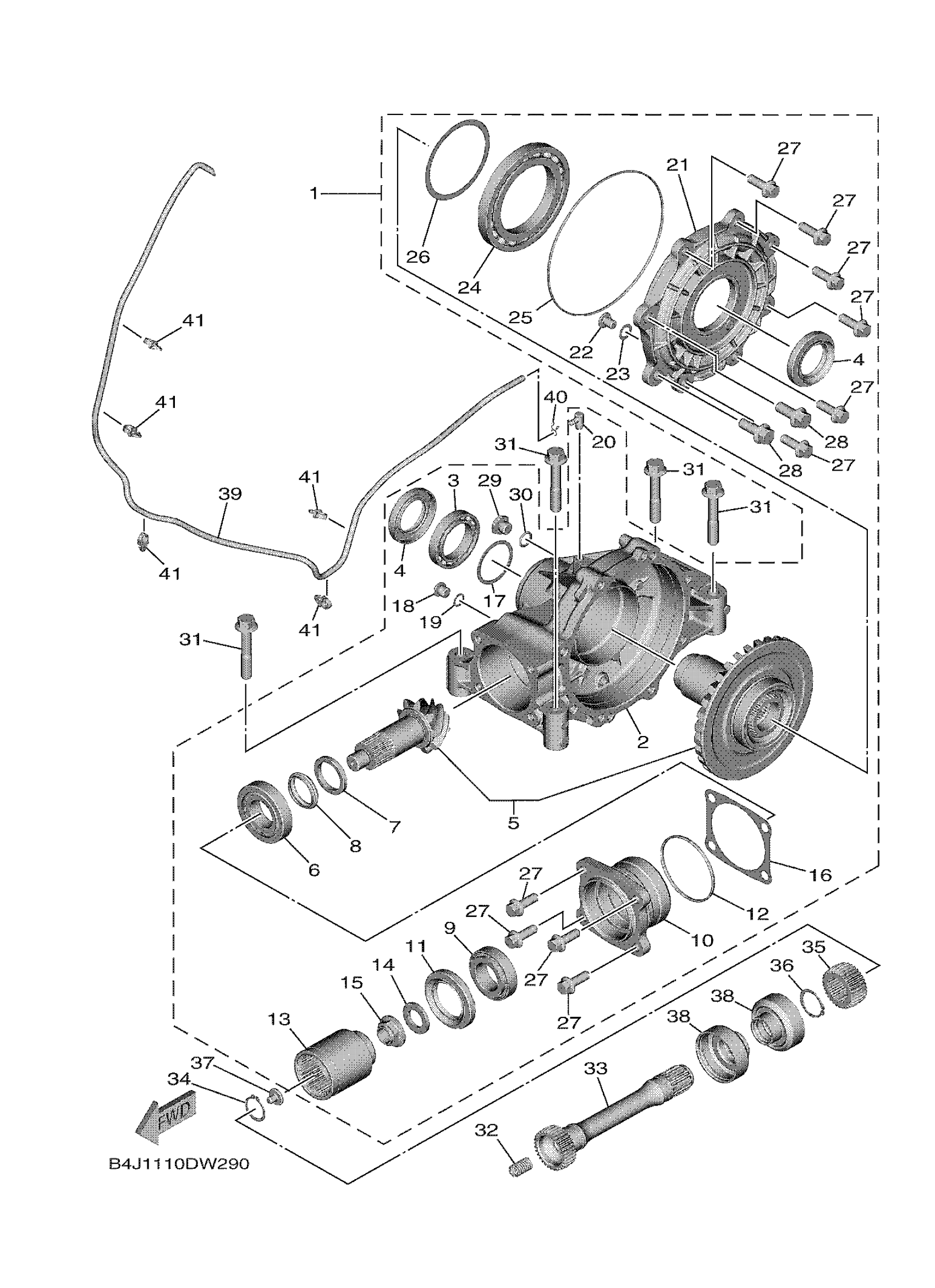

Yamaha YXE10WTZTM (WOLVERINE X2 1000 XT R) BFNE 2026 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
B4J-46101-00-00
Unavailable
2
HOUSING, DRIVE SHAFT
B4J-46151-00-00
$343.99
3
BEARING
93306-90901-00
$114.99
4
OIL SEAL
93102-41004-00
$14.99
5
RING GEAR SET
B4J-461A0-00-00
Unavailable
6
BEARING
93332-000A1-00
Unavailable
7
WASHER, PLATE
90201-35014-00
Unavailable
8
SPACER, EXPANSION
2S3-17571-00-00
Unavailable
9
BEARING
93332-000A0-00
$65.99
10
HOUSING, PINION BEARING
B4J-46144-00-00
Unavailable
11
OIL SEAL
93102-45017-00
$15.99
12
. O-RING
93210-68N50-00
Unavailable
13
COUPLING, GEAR
B4J-46123-00-00
Unavailable
14
WASHER, CONICAL SPRING
90208-22004-00
$23.99
15
NUT
90179-20015-00
$29.99
16
SHIM, DRIVE PINION (0.25T)
B4J-46127-00-00
Unavailable
16
SHIM, DRIVE PINION (0.30T)
B4J-46127-10-00
Unavailable
16
SHIM, DRIVE PINION (0.35T)
B4J-46127-20-00
Unavailable
16
SHIM, DRIVE PINION (0.40T)
B4J-46127-30-00
Unavailable
16
SHIM, DRIVE PINION (0.45T)
B4J-46127-40-00
Unavailable
16
SHIM, DRIVE PINION (0.50T)
B4J-46127-50-00
Unavailable
17
WASHER, THRUST (1.1T)
B4J-46118-00-00
Unavailable
17
WASHER, THRUST (1.2T)
B4J-46118-10-00
Unavailable
17
WASHER, THRUST (1.3T)
B4J-46118-20-00
Unavailable
17
WASHER, THRUST (1.4T)
B4J-46118-30-00
Unavailable
17
WASHER, THRUST (1.5T)
B4J-46118-40-00
Unavailable
17
WASHER, THRUST (1.6T)
B4J-46118-50-00
Unavailable
17
WASHER, THRUST (1.7T)
B4J-46118-60-00
Unavailable
18
PLUG, STRAIGHT SCREW
90340-12007-00
Unavailable
19
GASKET(4BH)
90430-12219-00
Unavailable
20
BREATHER
5UG-15371-00-00
Unavailable
21
HOUSING, BEARING
B4J-46152-00-00
Unavailable
22
STOPPER, RING GEAR
B4J-46156-00-00
Unavailable
23
SHIM, STOPPER
1FK-46157-00-15
Unavailable
23
. SHIM, STOPPER (T=020)
1FK-46157-00-20
Unavailable
24
BEARING
93316-01701-00
Unavailable
25
O-RING
93211-74001-00
Unavailable
26
SHIM, RING GEAR
22U-46117-00-25
Unavailable
26
SHIM, RING GEAR
22U-46117-00-30
Unavailable
26
SHIM, RING GEAR
22U-46117-00-40
Unavailable
27
BOLT, FLANGE
95817-10030-00
Unavailable
28
BOLT, FLANGE
90105-12122-00
Unavailable
29
PLUG, STRAIGHT(2E9)
90340-14029-00
Unavailable
30
GASKET
214-11198-01-00
Unavailable
31
BOLT, FLANGE
95812-12070-00
Unavailable
32
SPRING, COMPRESSION (400)
90501-20361-00
Unavailable
33
SHAFT, DRIVE
B4J-G6172-00-00
Unavailable
34
CIRCLIP(8CJ)
93410-27080-00
Unavailable
35
COUPLING
BG4-46126-00-00
Unavailable
36
CIRCLIP(3VD)
93440-31172-00
Unavailable
37
DAMPER
5KM-46559-00-00
Unavailable
38
SEAL 2
BG4-46137-00-00
Unavailable
39
HOSE (L1110)
90445-07050-00
Unavailable
40
CLIP (1J7)
90467-07029-00
Unavailable
41
CLAMP
90464-12830-00
Unavailable
