- YXE10WTZSB (WOLVERINE X2 1000 XT R) BFNA 2025
OIL COOLER

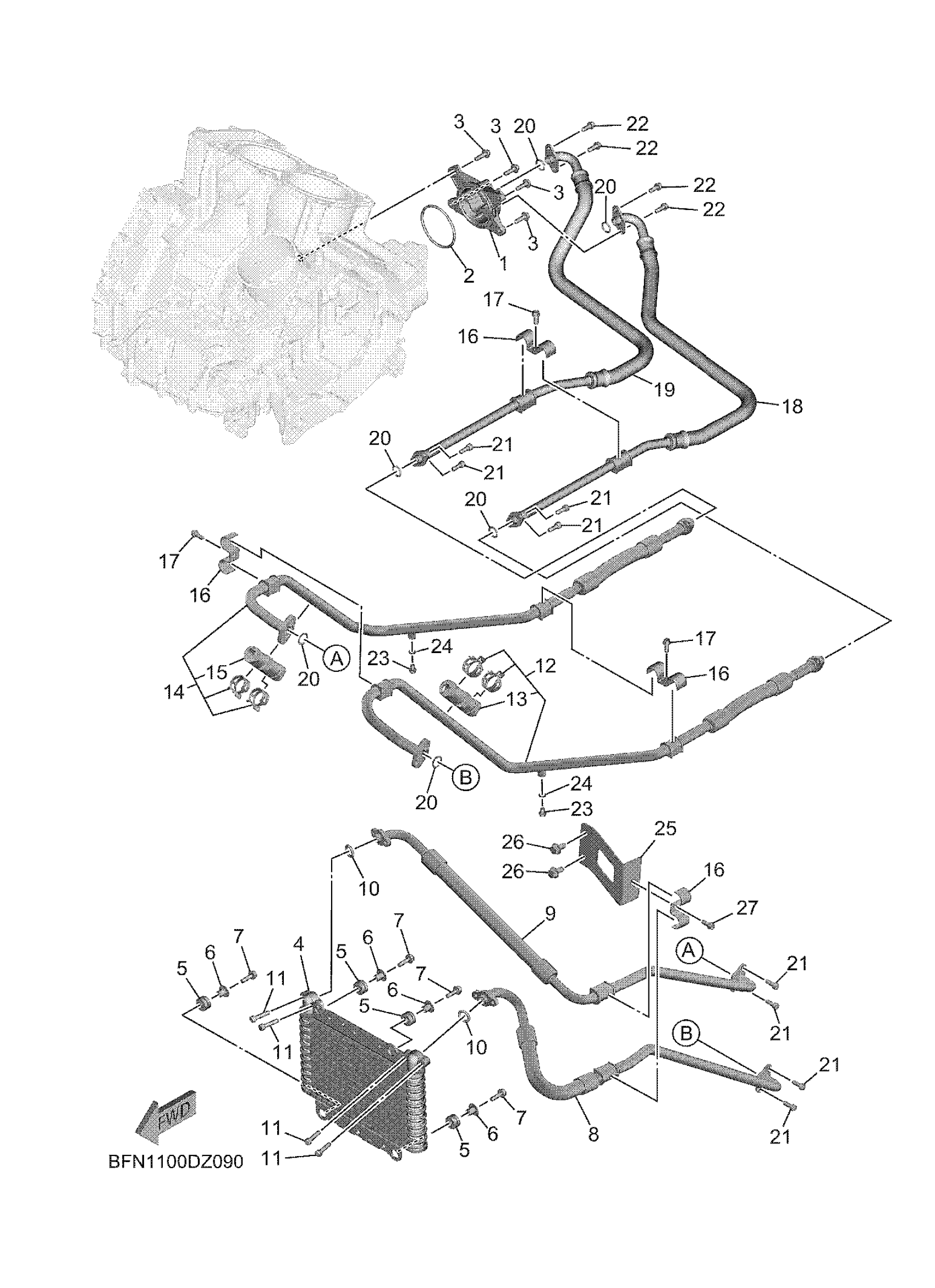

Yamaha YXE10WTZSB (WOLVERINE X2 1000 XT R) BFNA 2025 OIL COOLER Diagram
#
Description
Price
1
PLATE, ADAPTOR
B1R-13461-01-00
Unavailable
2
O-RING (583 OIL CLEANER)
93210-64297-00
$8.49
3
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
$10.49
4
ELEMENT, OIL COOLER
BKP-13480-00-00
Unavailable
5
GROMMET(2GH)
90480-12475-00
$8.49
6
COLLAR
90387-06161-00
$8.49
7
BOLT, FLANGE
95817-06020-00
$3.81
8
HOSE, OIL 1
BFN-1316F-00-00
Unavailable
9
HOSE, OIL 2
BFN-1316G-00-00
Unavailable
10
O-RING (26H)
93210-14637-00
$7.49
11
BOLT,SOCKET
91317-06025-00
$5.60
12
OIL PIPE COMP. 1
BFN-13405-01-00
$284.99
13
DAMPER
BFN-13159-00-00
Unavailable
14
OIL PIPE COMP. 2
BFN-13406-01-00
Unavailable
15
DAMPER
BFN-13159-00-00
Unavailable
16
STAY
B4J-E3151-00-00
Unavailable
17
BOLT, FLANGE (SELF TAPPING)
90105-06832-00
Unavailable
18
HOSE 7
B4J-12551-00-00
Unavailable
19
HOSE 8
B4J-12552-00-00
Unavailable
20
O-RING
93210-16006-00
Unavailable
21
BOLT(3MA)
91312-06016-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD
90110-06248-00
Unavailable
23
BOLT, FLANGE
95022-06008-00
Unavailable
24
GASKET 256113960000
90430-06014-00
Unavailable
25
HOLDER, OIL PIPE
BFN-E3174-00-00
Unavailable
26
BOLT, FLANGE
90105-08867-00
Unavailable
27
BOLT, FLANGE DEEP RECESS
95E32-06014-00
Unavailable
