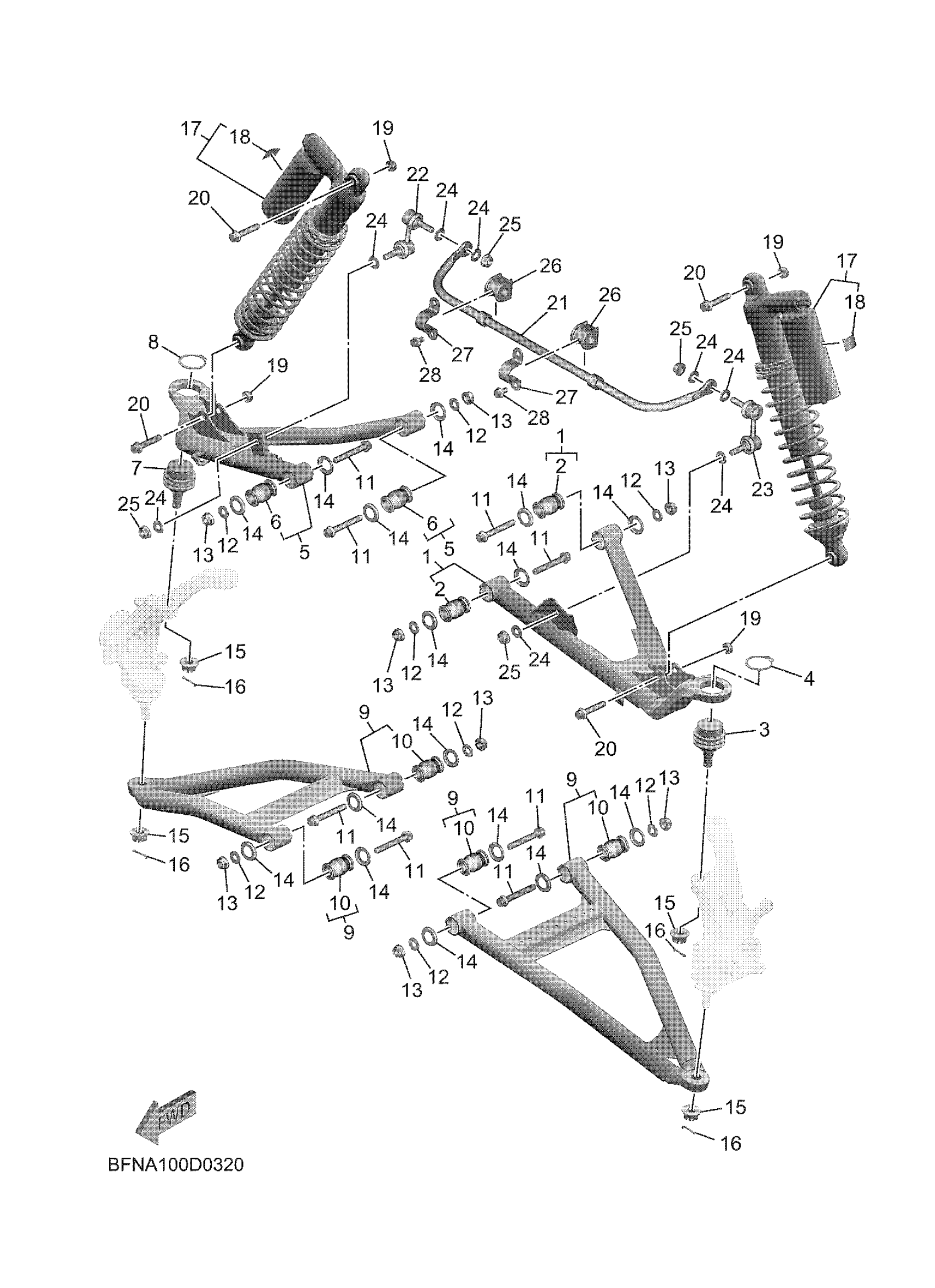

Yamaha YXE10WTZSB (WOLVERINE X2 1000 XT R) BFNA 2025 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

BFN-F3540-05-00

Unavailable

2

BUSH

B4J-F3526-01-00

Unavailable

3

BALL JOINT 2

2HC-23579-00-00

$96.99

4

CIRCLIP

93410-42096-00

$2.55

5

FRONT UPPER ARM CO

BFN-F3550-05-00

Unavailable

6

BUSH

B4J-F3526-01-00

Unavailable

7

BALL JOINT 2

2HC-23579-00-00

$96.99

8

CIRCLIP

93410-42096-00

$2.55

9

FRONT LOWER ARM CO

BFN-F3570-00-00

$117.99

10

BUSH

B4J-F3526-01-00

Unavailable

11

BOLT, FLANGE

90105-12095-00

$9.49

12

WASHER, PLATE

90201-12045-00

$5.60

13

NUT, SELF-LOCKING

90185-12002-00

$12.49

14

COVER, THRUST 1

B4J-F3517-00-00

$0.96

15

NUT, CASTLE

90171-14005-00

$12.49

16

PIN, COTTER

91401-30025-00

Unavailable

17

FR. SHOCK ABSORBER

BFN-F350A-02-00

Unavailable

18

LABEL, WARNING

B4J-F2259-00-00

Unavailable

19

NUT, SELF-LOCKING

90185-10012-00

Unavailable

20

BOLT, FLANGE

90105-10173-00

Unavailable

21

FRONT STABILIZER BAR

BKP-F386E-00-00

Unavailable

22

JOINT, STABILIZER 1

BAS-F385L-04-00

Unavailable

23

JOINT, STABILIZER 2

BAS-F385M-05-00

Unavailable

24

WASHER, PLATE

90201-12045-00

$5.60

25

NUT, SELF-LOCKING

90185-12002-00

$12.49

26

BUSH

B4J-F376B-00-00

Unavailable

27

BRKT., STABILIZER

BFN-F386B-01-00

Unavailable

28

BOLT, FLANGE

95817-08014-00

Unavailable
