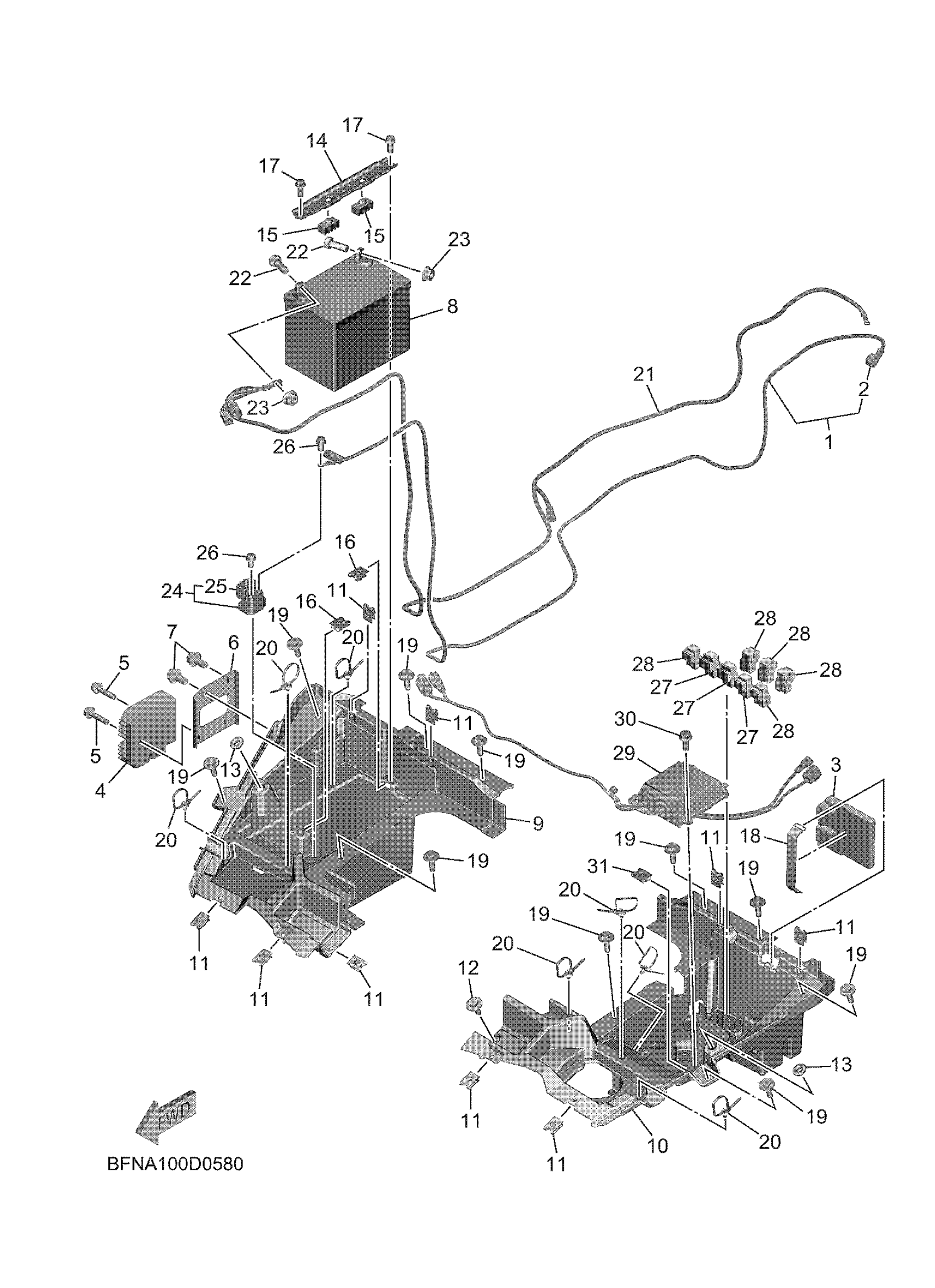

Yamaha YXE10WTZSB (WOLVERINE X2 1000 XT R) BFNA 2025 ELECTRICAL 2 Diagram

CORD, STARTER MOTOR

BKP-81815-00-00

Unavailable

CAP

4B5-81871-00-00

Unavailable

ENGINE CONTROL UNI

BFN-8591A-02-00

Unavailable

RECTIFIER & REGULATOR ASSY

BFN-81960-00-00

Unavailable

BLOT, FLANGE DEEP RECESS

95D32-06025-00

$1.07

PLATE, REGULATOR

BFN-F1169-00-00

Unavailable

BOLT, FLANGE

90105-08867-00

$15.99

BATTERY ASSY (GS U1-H11L)

5UG-H2100-11-00

Unavailable

BOX, BATTERY 1

BG4-H212B-00-00

$81.99

PANEL, SWITCH

BG4-H2565-00-00

$92.99

NUT, SPRING

90183-062A1-00

$1.96

BOLT, WITH WASHER

90119-06226-00

$8.49

GROMMET(4DN)

90480-01558-00

$4.19

BRACKET, BATTERY

2HC-H2128-00-00

$10.49

PAD, SEAT

3C3-24741-00-00

$9.99

NUT, SPRING

90183-062A1-00

$1.96

BOLT, FLANGE

95022-06014-00

Unavailable

BAND, BATTERY

5JJ-82131-00-00

Unavailable

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

CLAMP

1NS-F1338-00-00

Unavailable

WIRE, MINUS LEAD

BFN-82116-01-00

Unavailable

BOLT(6TD)

97080-08020-00

Unavailable

NUT

90179-08015-00

Unavailable

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

FUSE (10A)

42X-82151-00-00

Unavailable

BOLT, FLANGE

95022-06008-00

Unavailable

RELAY ASSY

5DM-81950-01-00

Unavailable

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

POWER STRG. CONT.

BFN-859A0-00-00

Unavailable

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable

NUT, SPRING

90183-062A1-00

$1.96
