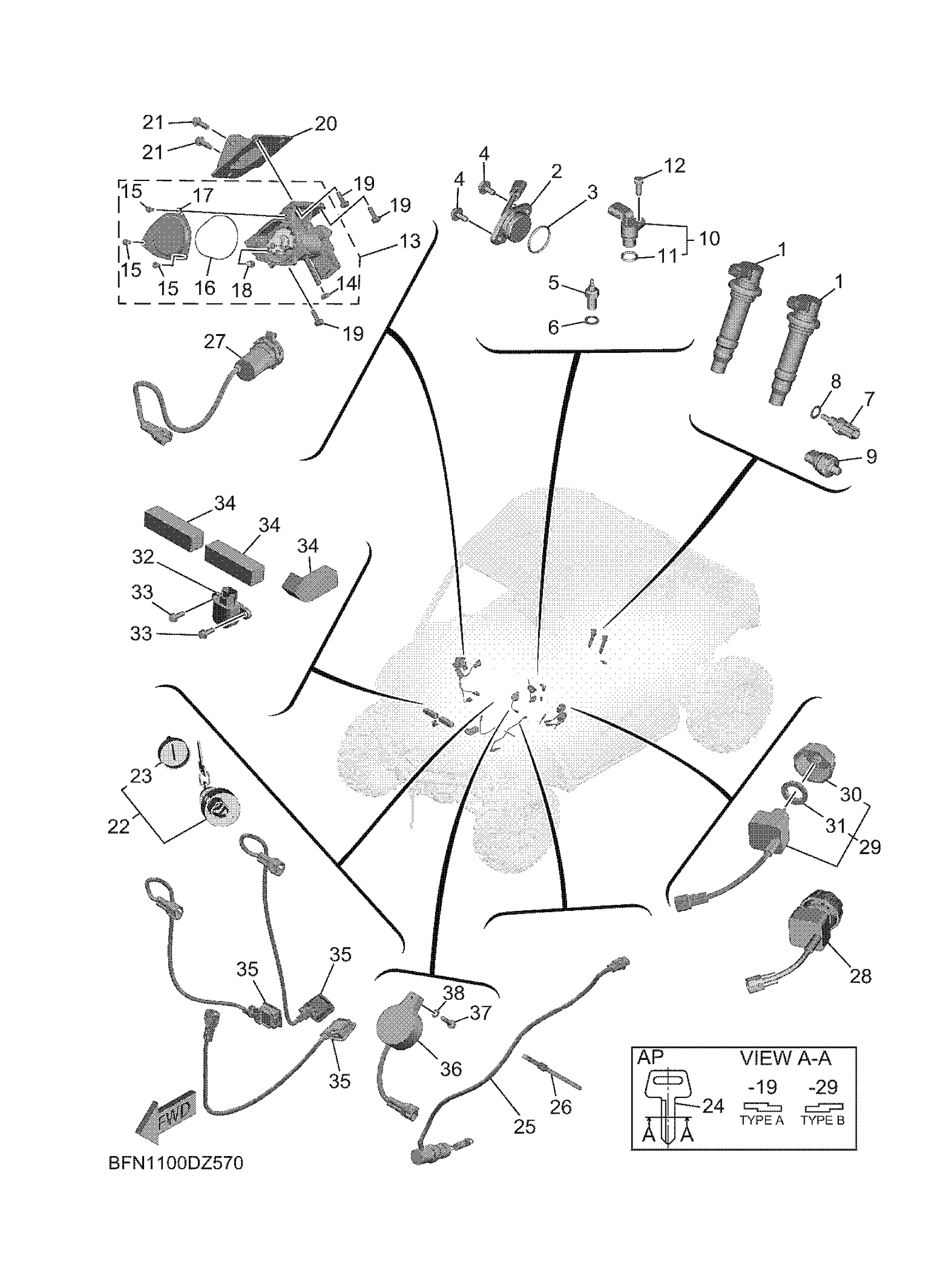

Yamaha YXE10WTZSB (WOLVERINE X2 1000 XT R) BFNA 2025 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

NEUTRAL SWITCH ASS

BG4-82540-02-00

Unavailable

O-RING (371)

93210-29196-00

$8.49

BOLT, WITH WASHER

90119-06137-00

$8.49

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

THERMO UNIT

52B-H3591-00-00

$34.99

GASKET

90430-10004-00

$7.49

OIL PRESSURE SWITCH

8FP-82504-01-00

$71.99

SENSOR, SPEED

1TP-83755-00-00

$77.99

O-RING

4D9-81168-00-00

$6.99

BOLT(3MA)

91312-06016-00

$5.60

SENSOR UNIT

BG4-8A410-01-00

Unavailable

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

O-RING

5LP-14147-00-00

Unavailable

COVER 1

5UG-14293-00-00

Unavailable

GUIDE, CABLE

1UY-14155-00-00

Unavailable

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

BRKT, PIPE 1

BFN-F133K-10-00

Unavailable

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

MAIN SWITCH ASSY

1XD-H2510-11-00

Unavailable

CAP, KEY

1XD-H2579-10-00

Unavailable

KEY, MAIN SWITCH

1XD-H2511-19-00

Unavailable

KEY, MAIN SWITCH

1XD-H2511-29-00

Unavailable

STOP SWITCH ASSY

B90-82530-01-00

Unavailable

CLAMP(JN6)

90464-31827-00

Unavailable

TERMINAL COMP.

B4J-H254B-00-00

Unavailable

SWITCH, LAMP

BG4-82526-02-00

Unavailable

SWITCH, SELECT

1XD-87280-01-00

Unavailable

KNOB, SELECT SWITCH

1XD-87285-00-00

Unavailable

SPRING

1XD-87288-00-00

Unavailable

SENSOR, LEAN ANGLE

3B4-82576-10-00

Unavailable

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

DAMPER, PLATE

90520-30009-00

Unavailable

AUXILIARY LIGHT AS

B4J-H5460-00-00

Unavailable

BUZZER

2MB-83383-00-00

Unavailable

BOLT(3JK)

97027-05020-00

Unavailable

WASHER, PLAIN (646)

92990-05600-00

Unavailable
