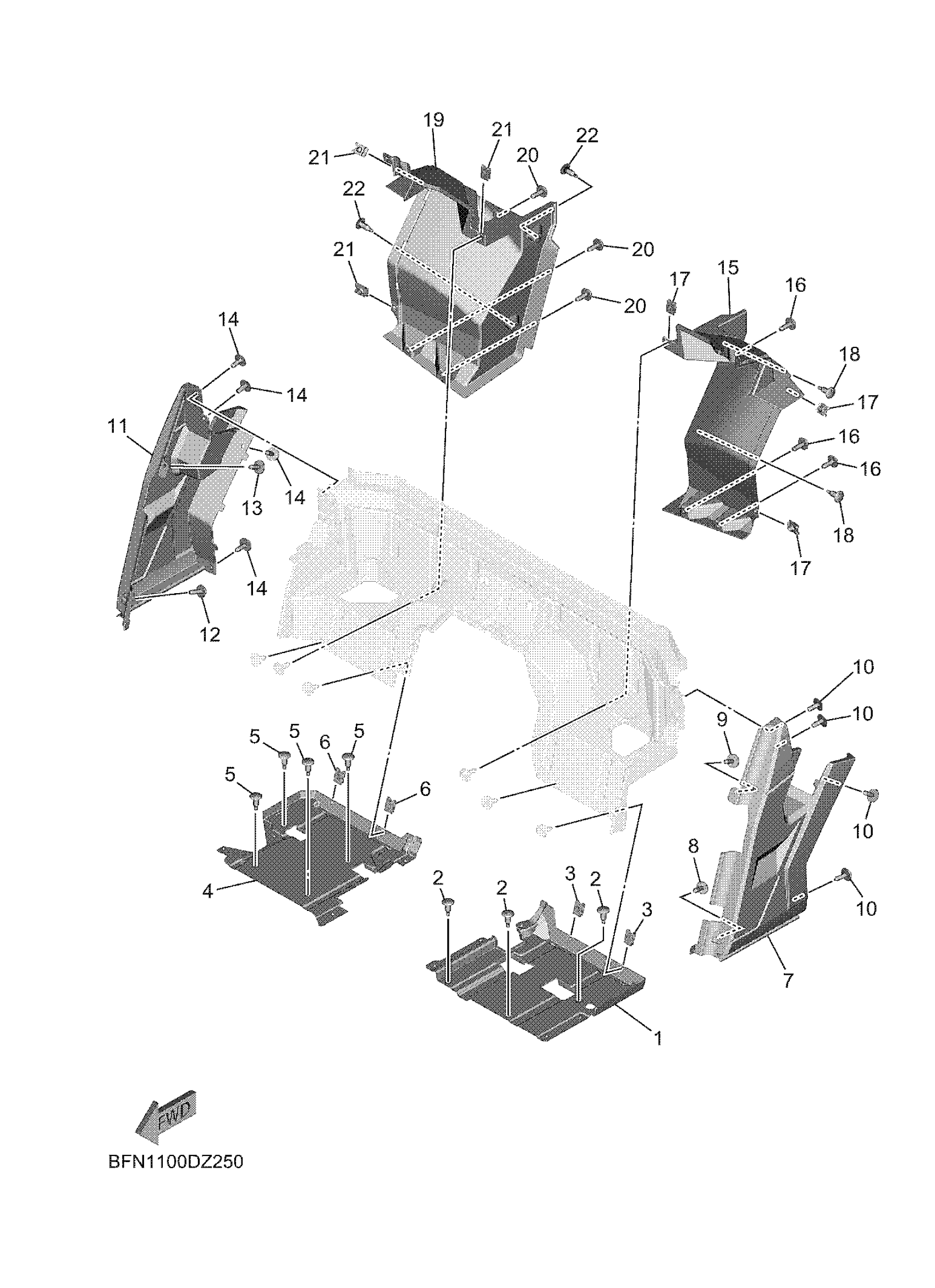

Yamaha YXE10WTZRD (WOLVERINE 1000 X2 EPS XT R) BFN1 2024 SIDE COVER 2 Diagram

#

Description
Price

1

PLATE

B8K-F84A3-01-00

$18.59

2

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

3

NUT, SPRING

90183-062A1-00

$1.75

4

PLATE, UNDER 2

B8K-F84A4-00-00

$6.40

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

NUT, SPRING

90183-062A1-00

$1.75

7

COVER, SIDE 4

B8K-F1741-00-00

$24.20

8

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

COVER, SIDE 5

B8K-F171E-00-00

$22.17

12

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

13

BOLT, WITH WASHER

90119-06226-00

$2.12

14

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

15

MUD GUARD 1

B8K-F2327-00-00

$41.23

16

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

17

NUT, SPRING

90183-062A1-00

$1.75

18

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

19

MUD GUARD 2

B8K-F2328-00-00

Unavailable

20

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

21

NUT, SPRING

90183-062A1-00

$1.75

22

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
