- YXE10WTZRD (WOLVERINE 1000 X2 EPS XT R) BFN1 2024
ELECTRICAL 2

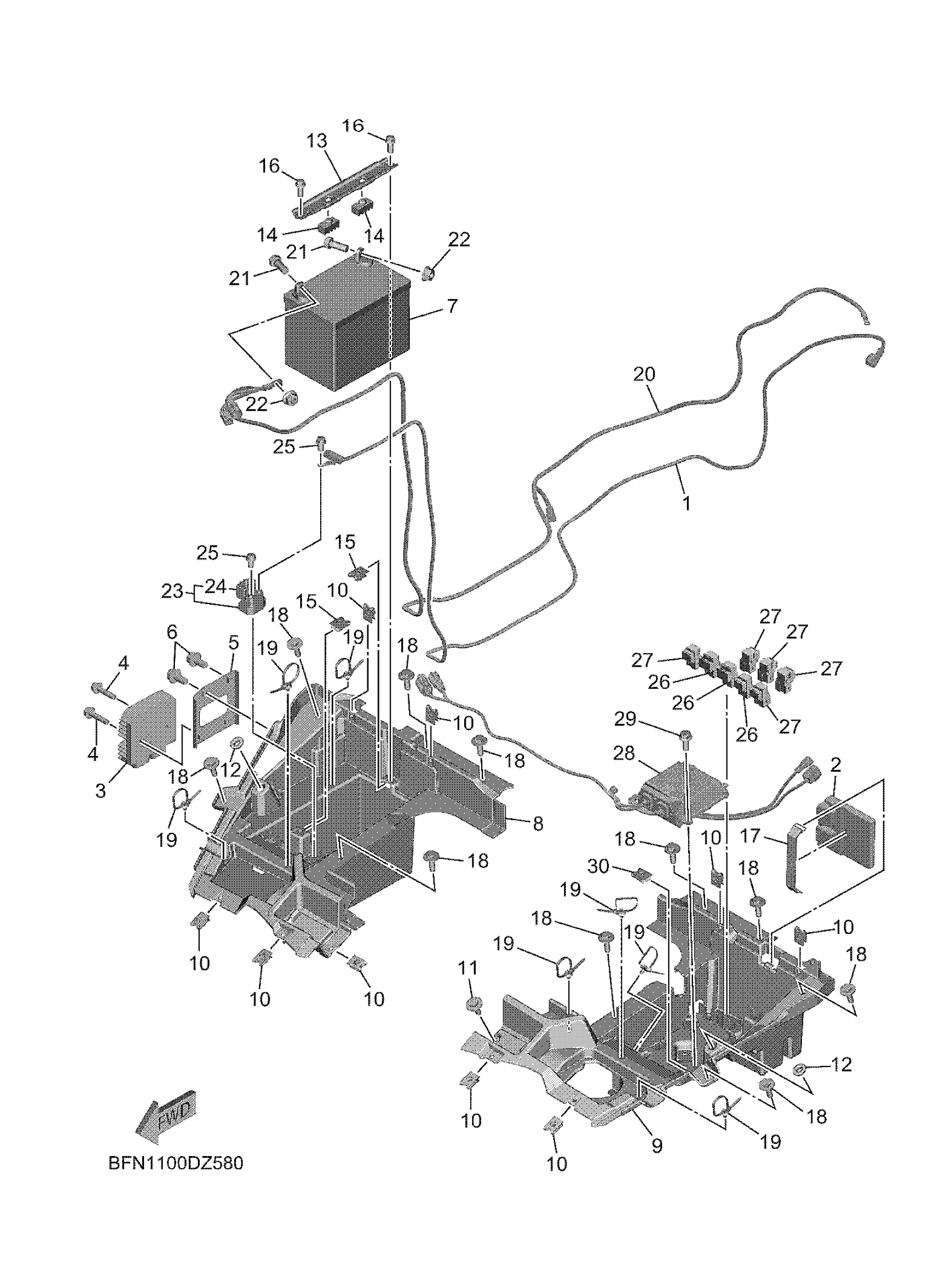

Yamaha YXE10WTZRD (WOLVERINE 1000 X2 EPS XT R) BFN1 2024 ELECTRICAL 2 Diagram
#
1
CORD, STARTER MOTOR
B1R-81815-00-00
Unavailable
2
ENGINE CONTROL UNIT ASSY
BFN-8591A-01-00
Unavailable
3
RECTIFIER & REGULATOR ASSY
BFN-81960-00-00
Unavailable
4
BLOT, FLANGE DEEP RECESS
95D32-06025-00
$1.07
5
PLATE, REGULATOR
BFN-F1169-00-00
Unavailable
6
BOLT, FLANGE
90105-08867-00
$15.99
7
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
8
BOX, BATTERY 1
BG4-H212B-00-00
$81.99
9
PANEL, SWITCH
BG4-H2565-00-00
$92.99
10
NUT, SPRING
90183-062A1-00
$1.96
11
BOLT, WITH WASHER
90119-06226-00
$8.49
12
GROMMET(4DN)
90480-01558-00
$4.19
13
BRACKET, BATTERY
2HC-H2128-00-00
$10.49
14
PAD, SEAT
3C3-24741-00-00
$9.99
15
NUT, SPRING
90183-062A1-00
$1.96
16
BOLT, FLANGE
95022-06014-00
Unavailable
17
BAND, BATTERY
5JJ-82131-00-00
Unavailable
18
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
19
CLAMP
1NS-F1338-00-00
Unavailable
20
WIRE, MINUS LEAD
BFN-82116-00-00
Unavailable
21
BOLT(6TD)
97080-08020-00
Unavailable
22
NUT
90179-08015-00
Unavailable
23
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
24
FUSE (10A)
42X-82151-00-00
Unavailable
25
BOLT, FLANGE
95022-06008-00
Unavailable
26
RELAY ASSY
5DM-81950-01-00
Unavailable
27
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
28
POWER STRG. CONT.
BFN-859A0-00-00
Unavailable
29
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
30
NUT, SPRING
90183-062A1-00
$1.96
