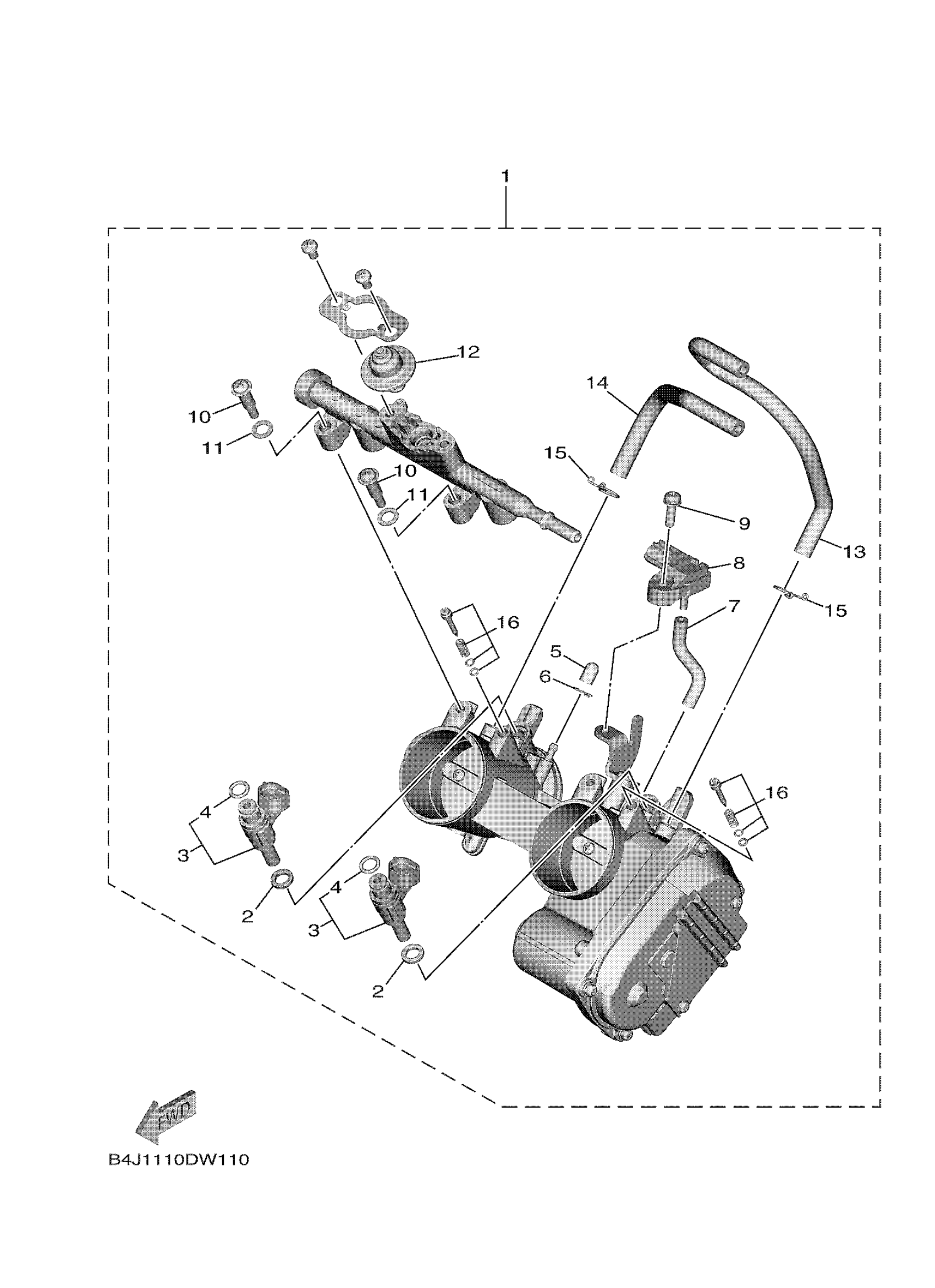

Yamaha YXE10WTATG (WOLVERINE X2 1000 R SPEC) BFNG 2026 THROTTLE BODY ASSY 1 Diagram

Description

Price

THROTTLE BODY ASSY

B4J-13750-00-00

$1,117.99

. RUBBER, INJECTOR

68V-13766-10-00

$17.45

INJECTOR

B4J-13761-00-00

$77.30

. O-RING

68V-1416A-00-00

$10.18

CAP

895-14169-00-00

$3.73

CLIP, PIPE

8A7-14139-00-00

$6.34

HOSE

5PS-14987-00-00

$5.91

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

SCREW

2C0-14216-00-00

$2.98

BOLT 1

14B-13573-00-00

$4.48

GASKET

363-14198-00-00

$9.25

DAMPER

5VK-13982-00-00

Unavailable

PIPE

B4J-14465-00-00

$14.29

PIPE

B4J-14466-00-00

$13.00

CLIP

90467-090A2-00

$2.47

PILOT SCREW SET

2C0-14105-00-00

Unavailable
