- YXE10WTATG (WOLVERINE X2 1000 R SPEC) BFNG 2026
SIDE COVER 3

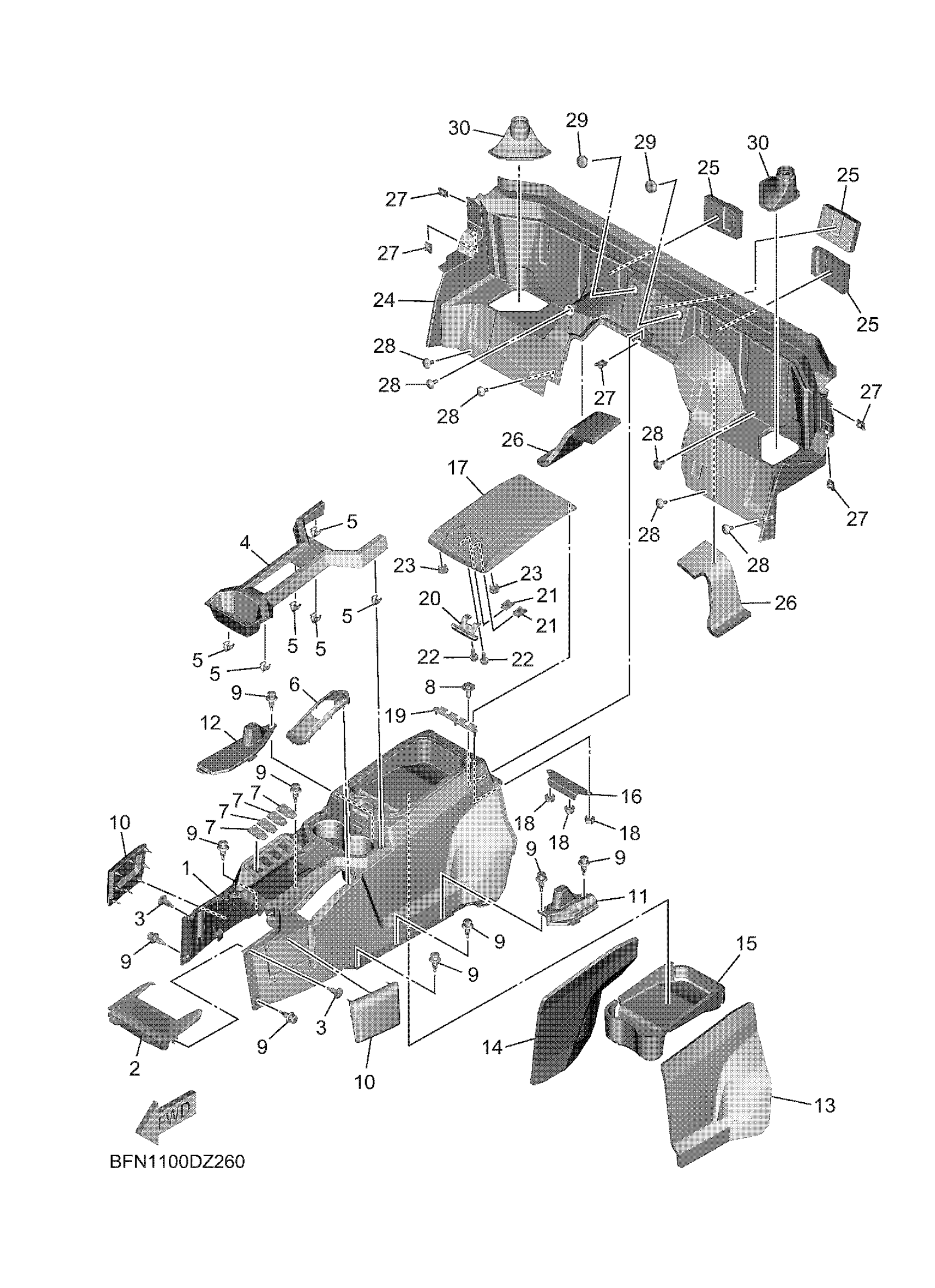

Yamaha YXE10WTATG (WOLVERINE X2 1000 R SPEC) BFNG 2026 SIDE COVER 3 Diagram
#
1
COVER 1
B4J-F8219-01-00
Unavailable
2
COVER, TOP
BFN-F171A-00-00
$16.99
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
COVER, TOP
B4J-F171A-60-00
Unavailable
5
CLIP
90468-040A0-00
$8.49
6
COVER,HANDLE LEVER
B4J-F6372-01-00
$8.49
7
PLUG, HOLE
BG4-F312G-00-00
$1.64
8
BOLT, WITH WASHER
90119-06226-00
$8.49
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
PAD 1
B4J-K7151-02-00
$33.99
11
PLATE, RUBBER 4
BG4-F8499-00-00
$7.49
12
PLATE, RUBBER 3
BG4-F8485-00-00
$13.49
13
INSU. , 2
B4J-H272M-00-00
$25.99
14
INSULATOR, 1
B4J-H272L-00-00
$23.99
15
INSULATOR 3
B4J-F172S-00-00
$22.99
16
BRACKET, HINGE
B4J-F114B-00-00
Unavailable
17
LID 2
BFN-F177J-01-00
Unavailable
18
NUT, U FLANGE
95604-06200-00
Unavailable
19
HINGE, CAP
BFN-F464F-00-00
Unavailable
20
LATCH
B4J-F389E-00-00
Unavailable
21
NUT, SPRING
90183-062A1-00
Unavailable
22
BOLT, FLANGE
95812-06014-00
Unavailable
23
GROMMET
90480-10003-00
Unavailable
24
COVER,REAR PURPBLU
B8K-F2866-01-00
Unavailable
25
INSULATOR, SIDE CO
B8K-F174A-00-00
Unavailable
26
INSULATOR, SIDE CO
B8K-F174T-00-00
Unavailable
27
NUT, SPRING
90183-062A1-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
29
PLUG
90338-18266-00
Unavailable
30
PLATE, RUBBER 5
B8K-F845J-01-00
Unavailable
