Description

Price

1

PLATE

B8K-F84A3-01-00

$29.99

2

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

3

NUT, SPRING

90183-062A1-00

$1.96

4

PLATE, UNDER 2

B8K-F84A4-00-00

$28.99

5

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

6

NUT, SPRING

90183-062A1-00

$1.96

7

COVER, SIDE 4

B8K-F1741-00-00

$29.99

8

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

COVER, SIDE 5

B8K-F171E-00-00

$28.99

12

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

15

MUD GUARD 1

B8K-F2327-00-00

$46.99

16

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

17

NUT, SPRING

90183-062A1-00

$1.96

18

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

19

MUD GUARD 2

B8K-F2328-00-00

Unavailable

20

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

21

NUT, SPRING

90183-062A1-00

$1.96

22

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

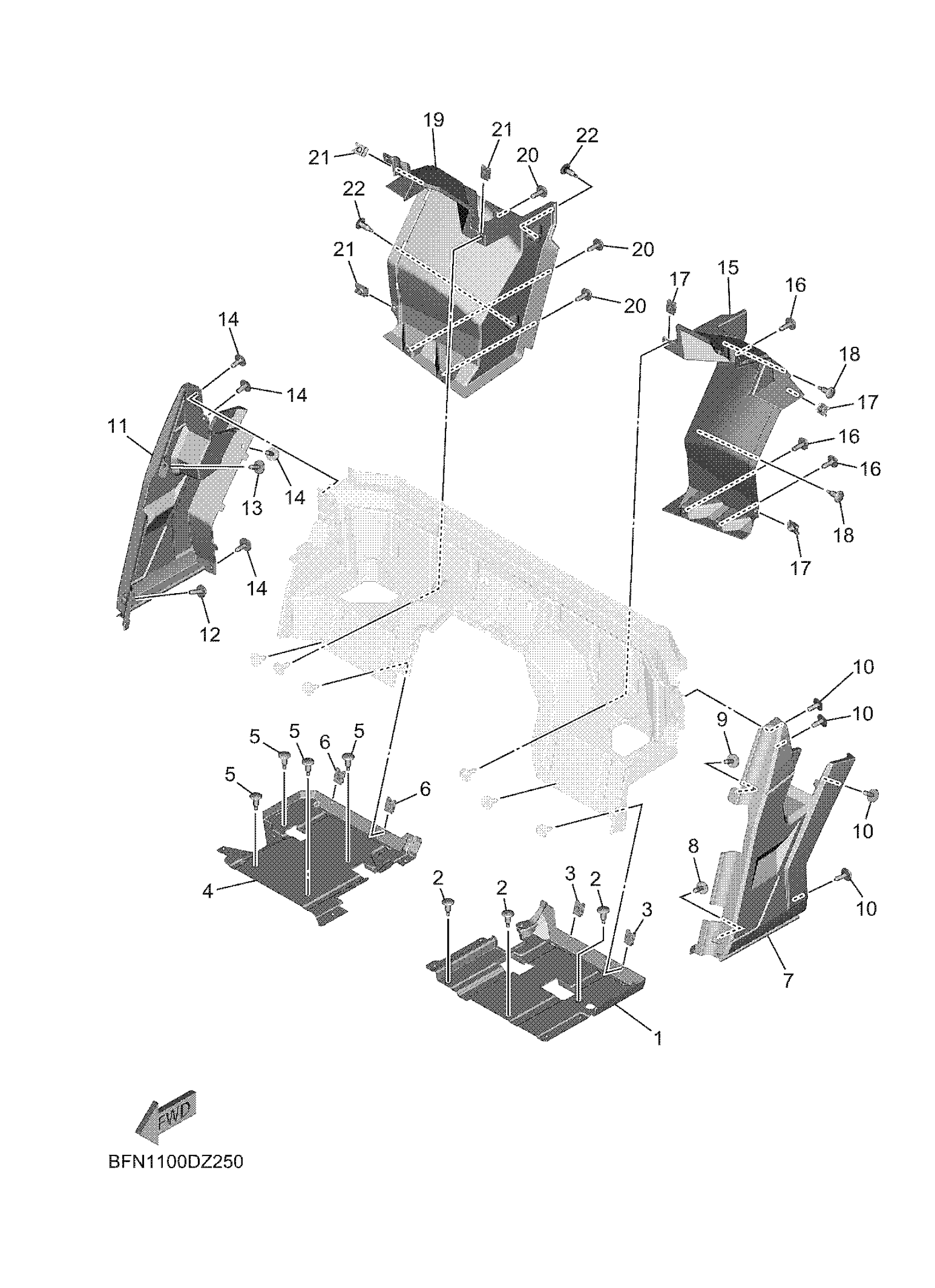

Yamaha YXE10WTATG (WOLVERINE X2 1000 R SPEC) BFNG 2026 SIDE COVER 2 Diagram

PLATE

RIVET,SPEC'L SHAPE

NUT, SPRING

PLATE, UNDER 2

RIVET,SPEC'L SHAPE

NUT, SPRING

COVER, SIDE 4

BOLT, SPECIAL 1

BOLT, WITH WASHER

BOLT, HEXAGON SOCKET HEAD(51L)

COVER, SIDE 5

BOLT, SPECIAL 1

BOLT, WITH WASHER

BOLT, HEXAGON SOCKET HEAD(51L)

MUD GUARD 1

BOLT, SPECIAL 1

NUT, SPRING

RIVET,SPEC'L SHAPE

MUD GUARD 2

BOLT, SPECIAL 1

NUT, SPRING

RIVET,SPEC'L SHAPE
