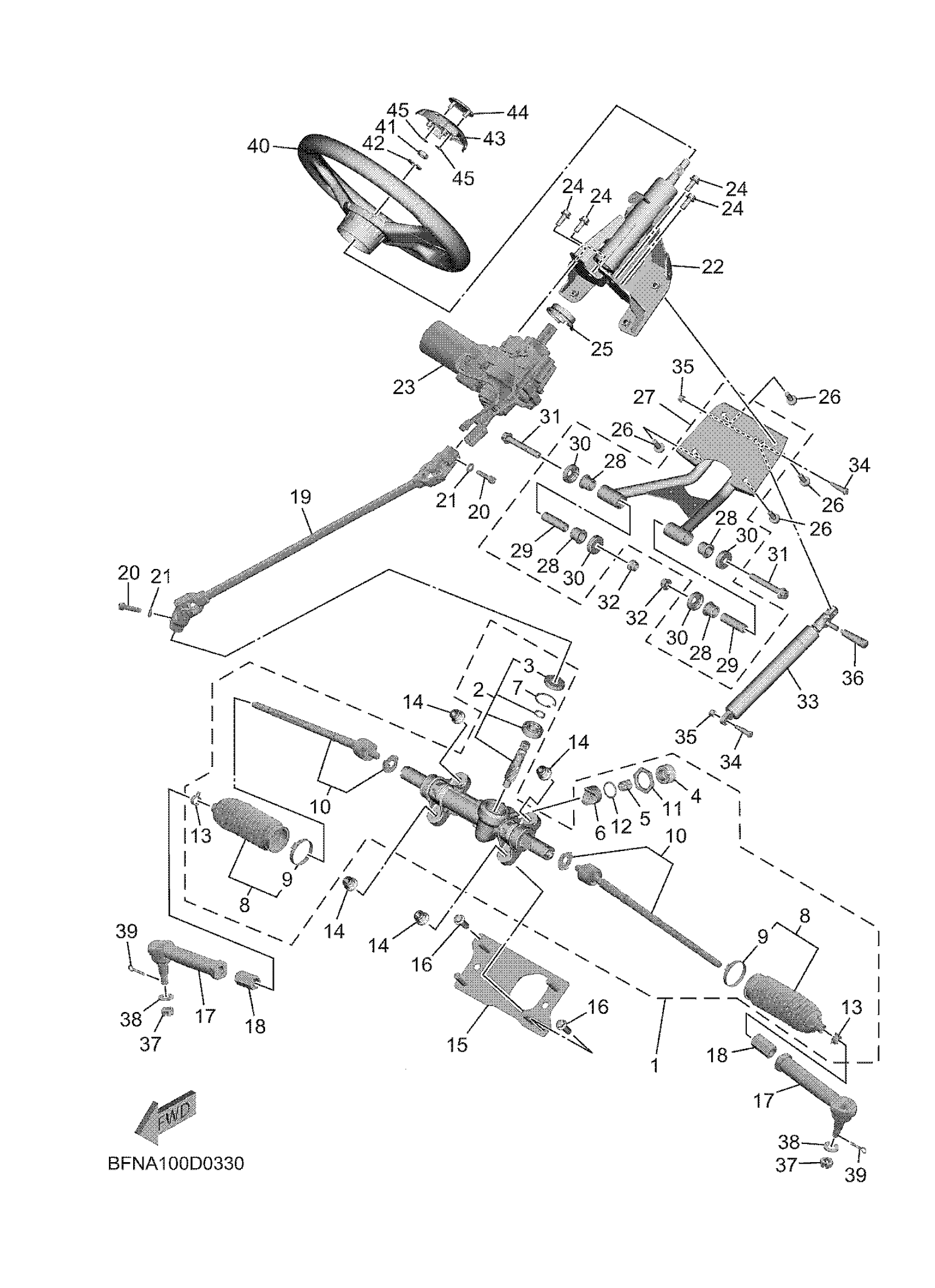

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 STEERING Diagram

#

Description
Price

1

STEERING ASSY

BFN-F3400-00-00

$231.99

2

STEERING PINION SE

BFN-F38G0-00-00

$64.99

3

SEAL

B4J-F3844-00-00

$10.49

4

COVER,ADJUST

1XD-F387G-00-00

Unavailable

5

SPRING,PRESSURE

1XD-F387K-00-00

Unavailable

6

PAD,PRESSURE

1XD-F387F-00-00

Unavailable

7

RING, STOPPE

B4J-F387J-00-00

$88.99

8

SEAL 1 W/ BAND SET OF 2

1XD-F1208-00-00

Unavailable

9

BAND

1XD-F3489-00-00

$2.81

10

RACK END SET

BFN-F38H0-00-00

Unavailable

11

LOCK ASSY

1XD-F178K-00-00

Unavailable

12

WASHER

1XD-F3165-00-00

$1.92

13

CLIP

1XD-F3447-00-00

$1.92

14

NUT, SELF-LOCKING

90185-12002-00

$12.49

15

BRACKET, STEERING

BFN-F3868-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

JOINT, UNIVERSAL 1

2HC-23841-00-00

Unavailable

18

NUT 1

2HC-F3833-00-00

Unavailable

19

STEERING SHAFT ASSY

BFN-F3840-00-00

Unavailable

20

91312-08030

91312-08030-00

Unavailable

21

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

22

COLUMN, STEERING 2

BG4-23813-02-00

Unavailable

23

POWER STRG. ACTUATOR ASSY

BFN-238B0-05-00

Unavailable

24

BOLT, FLANGE DEEP RECESS

95D32-08020-00

Unavailable

25

COVER, DUST

2MB-2384L-00-00

Unavailable

26

BOLT, FLANGE

90105-08142-00

Unavailable

27

TOP MOUNT COMP.

BG4-F33B0-02-00

Unavailable

28

BUSH, SOLID(3GG)

90381-15088-00

Unavailable

29

COLLAR

90387-10111-00

Unavailable

30

COVER, THRUST 1

1UY-23517-01-00

Unavailable

31

BOLT, FLANGE

90105-10267-00

Unavailable

32

NUT, S/L FLANGE

95602-10200-00

Unavailable

33

SPRING,DAMPER

BG4-F3855-01-00

Unavailable

34

BOLT

90109-06255-00

Unavailable

35

NUT, NYLON

95707-06300-00

Unavailable

36

HANDLE

BG4-F4812-01-00

Unavailable

37

NUT, CASTLE

90171-12001-00

Unavailable

38

WASHER, PLATE

90201-12045-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

WHEEL,STEERING

2HC-F3838-02-00

Unavailable

41

NUT, SELF-LOCKING

90185-12007-00

Unavailable

42

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

43

COVER, STEERING

2HC-F3818-00-00

Unavailable

44

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

45

NUT, SPRING

90183-06071-00

Unavailable
