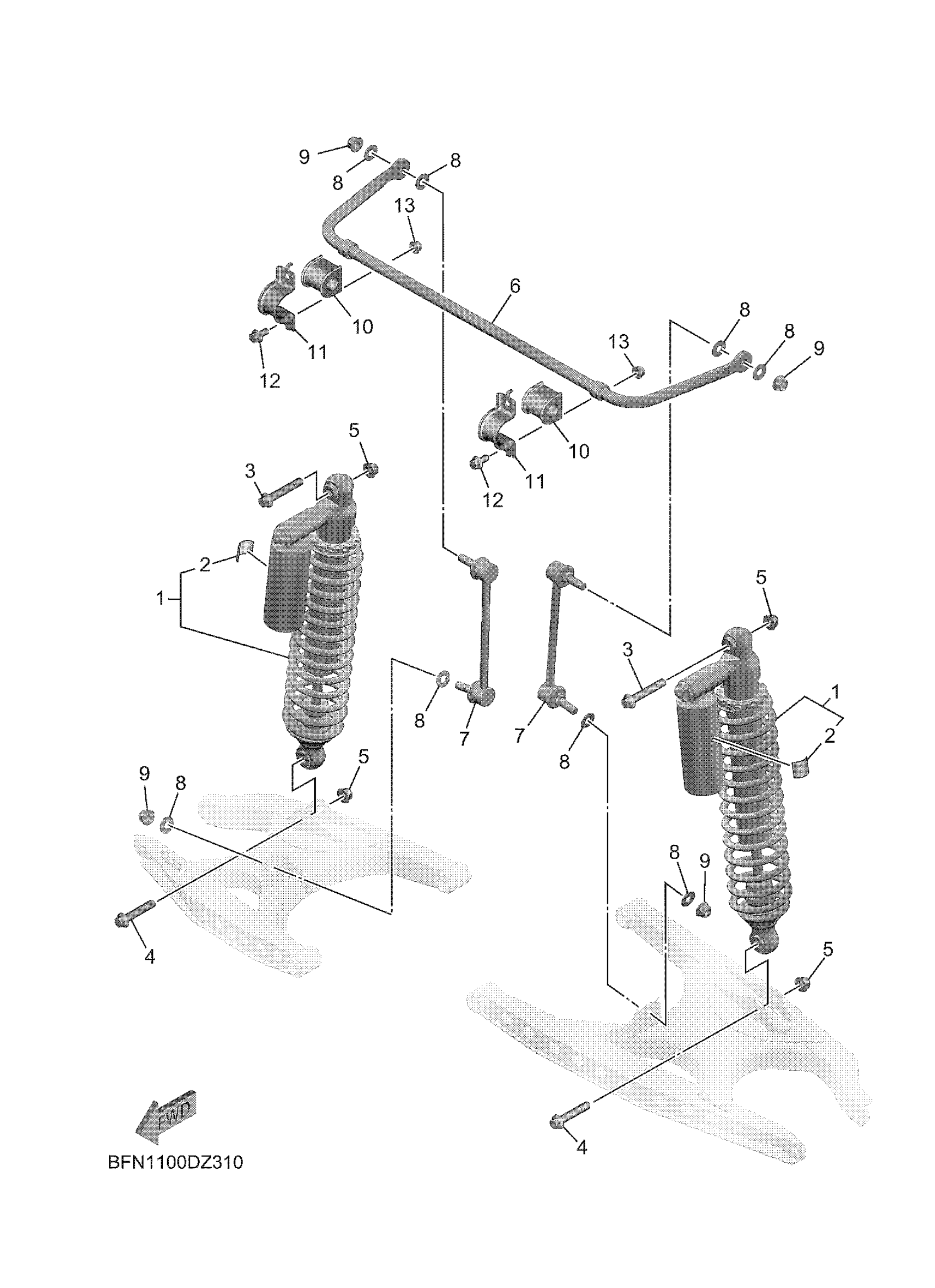

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 REAR SUSPENSION Diagram

#

Description
Price

1

RR. SHOCK ABSORBER

BFN-F220T-02-00

Unavailable

2

LABEL, WARNING

B4J-F2259-00-00

$1.43

3

BOLT, FLANGE

90105-12095-00

$9.49

4

BOLT, FLANGE

90105-12051-00

$9.49

5

NUT, SELF-LOCKING

90185-12002-00

$12.49

6

BAR, STABILIZER

BFN-G7491-10-00

Unavailable

7

JOINT, STABILIZER

B4J-F385L-01-00

$92.99

8

WASHER, PLATE

90201-12045-00

$5.60

9

NUT, SELF-LOCKING

90185-12002-00

$12.49

10

BUSH, STABILIZER F

BFN-F386G-00-00

Unavailable

11

COVER, STABILIZER

1XD-F386H-00-00

$8.99

12

BOLT, FLANGE

90105-10489-00

$3.13

13

NUT, SELF-LOCKING

90185-10818-00

Unavailable
