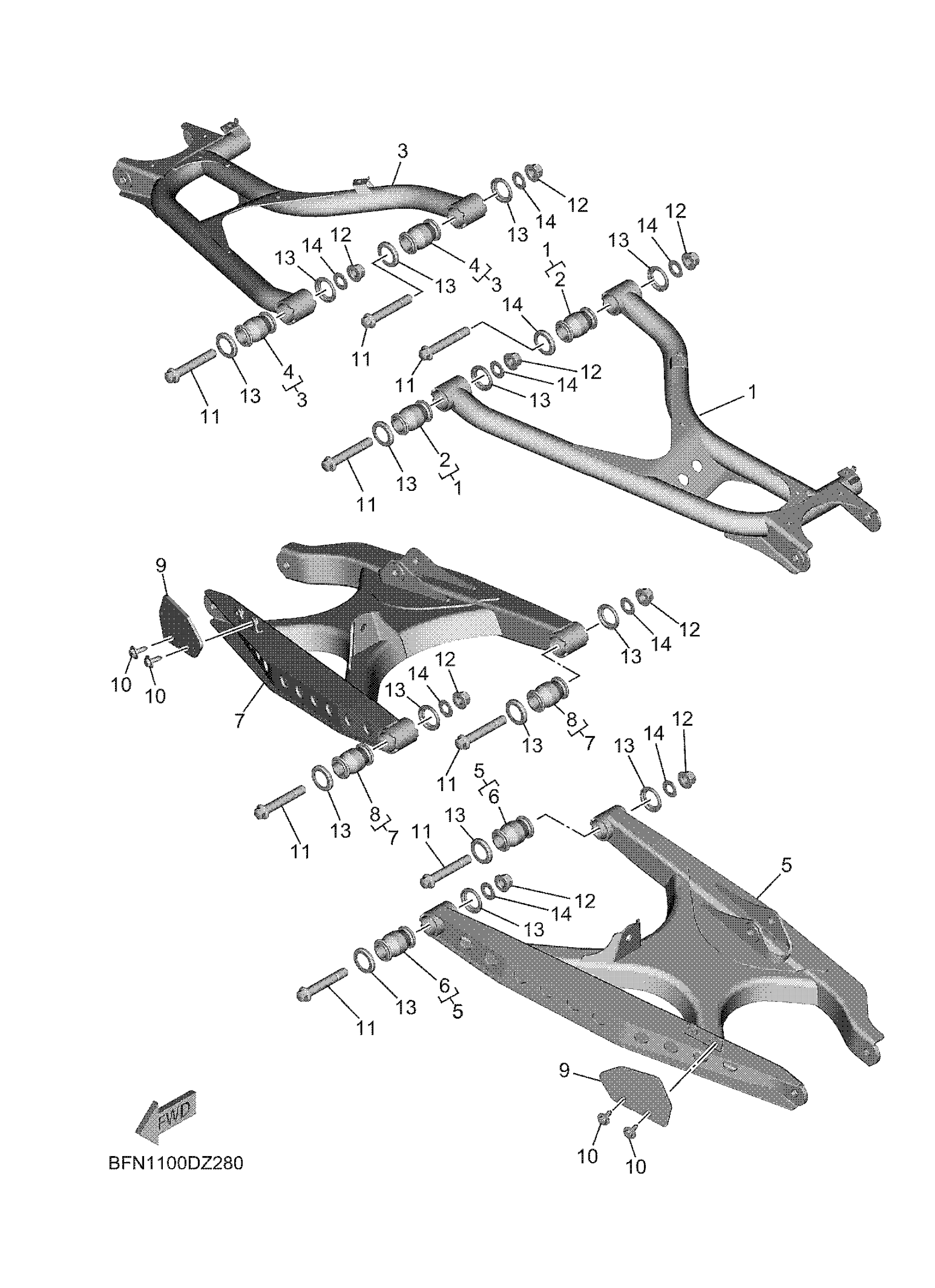

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 REAR ARM Diagram

#

Description
Price

1

RR. ARM ASSY

BFN-F2102-00-00

$119.99

2

BUSH

B4J-F3526-01-00

Unavailable

3

RR. ARM ASSY

BFN-F2103-00-00

Unavailable

4

BUSH

B4J-F3526-01-00

Unavailable

5

REAR ARM ASSY 1

BFN-F210M-02-00

$207.99

6

BUSH

B4J-F3526-01-00

Unavailable

7

REAR ARM ASSY 2

BFN-F210N-02-00

Unavailable

8

BUSH

B4J-F3526-01-00

Unavailable

9

COVER, THRUST 1

2HC-F2128-10-00

$2.49

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

BOLT, FLANGE

90105-12095-00

$9.49

12

NUT, SELF-LOCKING

90185-12002-00

$12.49

13

COVER, THRUST 1

B4J-F3517-00-00

$0.96

14

WASHER, PLATE

90201-12045-00

$5.60
