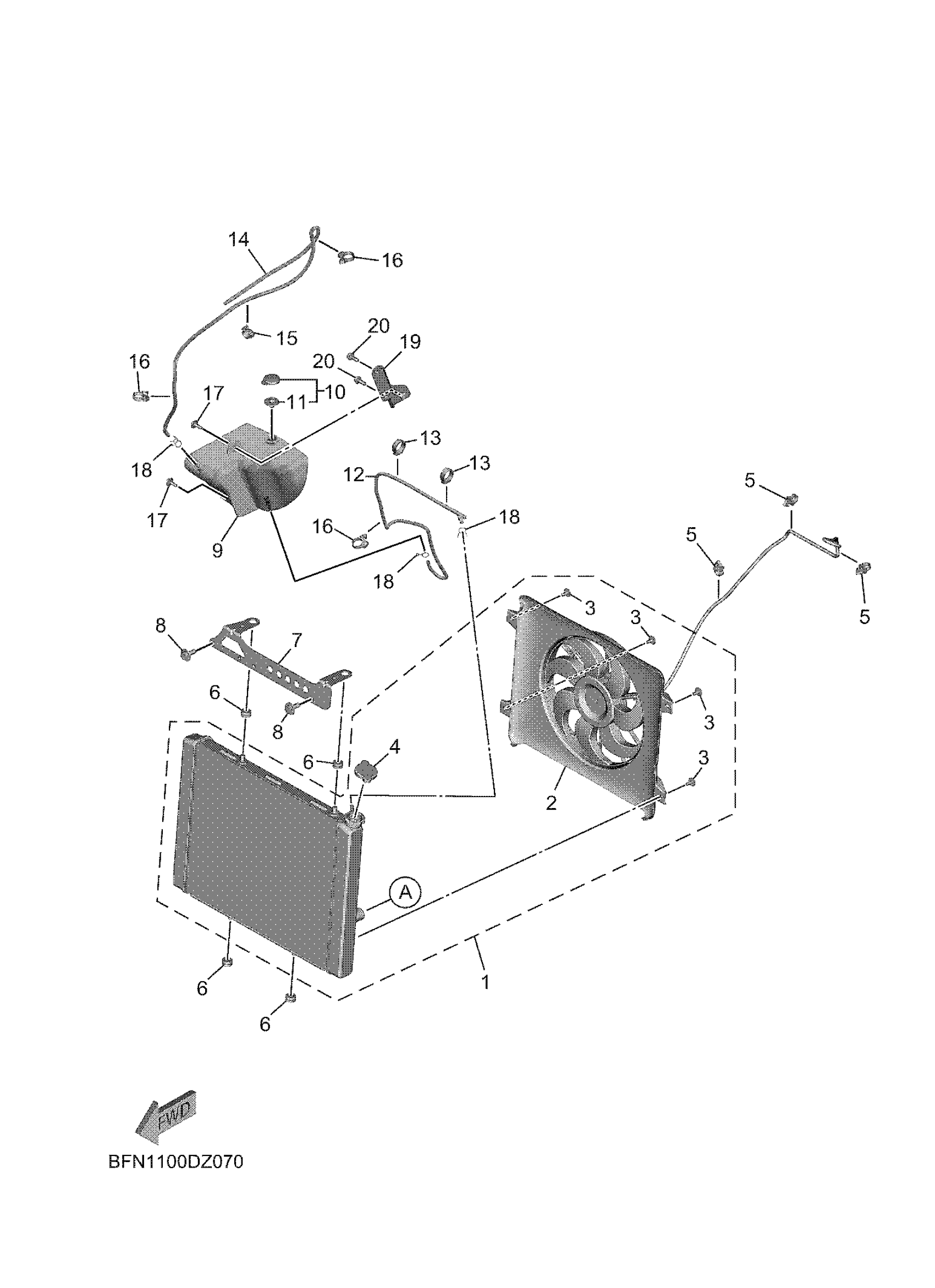

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

BG4-E2460-03-00

Unavailable

2

BLOWER ASSY

BG4-E2405-02-00

Unavailable

3

BOLT, BLOWER HOLDI

1XD-E2675-00-00

$1.66

4

CAP, RADIATOR

1XD-E2462-00-00

$15.49

5

CLAMP

90464-12830-00

$1.49

6

GROMMET(2GH)

90480-12475-00

$8.49

7

BRACKET, WATER COO

BG4-E2518-00-00

$15.99

8

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

9

TANK, RECOVERY

BFN-F1871-00-00

$25.99

10

CAP

1AA-21815-00-00

$12.99

11

GASKET

1AA-21874-00-00

$7.99

12

HOSE

90445-08811-00

Unavailable

13

CLAMP

90464-12830-00

$1.49

14

HOSE (L1040)

90445-08041-00

Unavailable

15

CLAMP

90464-16006-00

$9.49

16

CLAMP

90464-20010-00

Unavailable

17

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

18

CLIP 101235600

90467-08003-00

Unavailable

19

BRACKET, REGULATOR

BFN-F128A-00-00

Unavailable

20

BOLT, FLANGE

90105-06831-00

Unavailable
