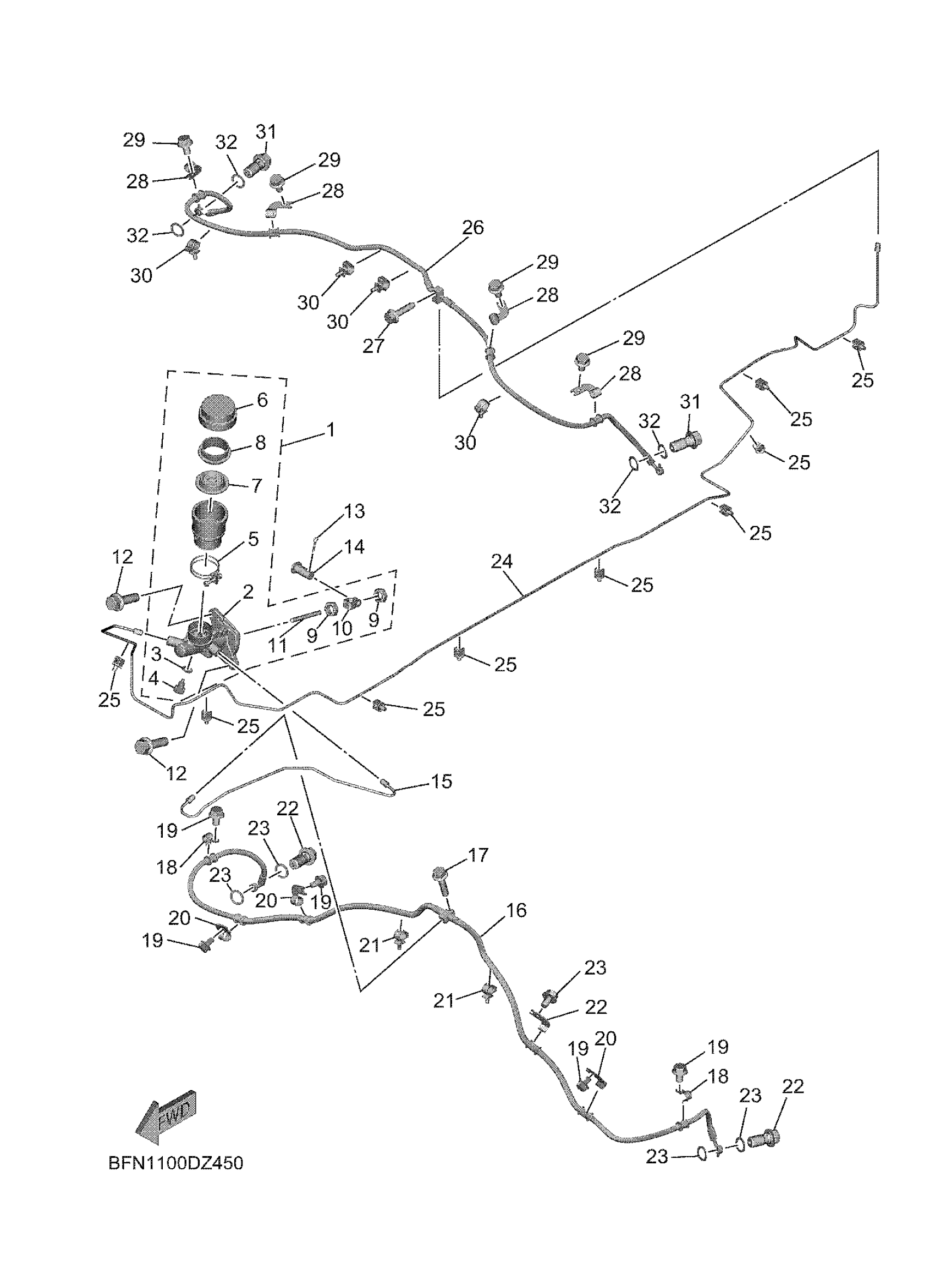

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER AS

2PG-2583T-01-00

Unavailable

2

CYLINDER KIT, MAST

5UG-25808-00-00

Unavailable

3

WASHER, OIL BOLT

5UG-25878-00-00

Unavailable

4

BOLT, OIL 1

5UG-25877-00-00

$0.99

5

BAND

5UG-25719-00-00

$6.99

6

CAP, RESERVOIR

5UG-25852-00-00

$17.49

7

DIAPHRAGM, RESERVOIR

5UG-25854-00-00

$9.99

8

BUSH,DIAPHRAGM

5UG-25855-00-00

$5.49

9

NUT, HEXAGON SMALL

95317-08700-00

$9.49

10

JOINT

2YK-27222-00-00

$21.99

11

PUSH ROD COMP.

5UG-25880-00-00

Unavailable

12

BOLT, FLANGE

90105-08129-00

$4.88

13

PIN, CLEVIS

90240-08005-00

$8.49

14

PIN, COTTER

91490-20025-00

$1.99

15

PIPE, BRAKE 2

BAR-F5882-01-00

Unavailable

16

HOSE, BRAKE 1

BFN-F5872-02-00

Unavailable

17

BOLT, FLANGE

95817-06025-00

Unavailable

18

HOLDER, BRAKE HOSE 1

5KM-25875-00-00

Unavailable

19

BOLT, FLANGE

95812-06010-00

Unavailable

20

HOLDER, BRAKE HOSE

2PG-25876-00-00

Unavailable

21

CLAMP

90464-16012-00

Unavailable

22

BOLT, UNION

90401-10015-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

24

PIPE, BRAKE

BAR-F5871-11-00

Unavailable

25

CLAMP 1

5KM-81677-00-00

Unavailable

26

HOSE, BRAKE 2

BFN-F5873-02-00

Unavailable

27

BOLT, FLANGE

90105-06833-00

Unavailable

28

HOLDER, BRAKE HOSE

2PG-25876-00-00

Unavailable

29

BOLT, FLANGE

95812-06010-00

Unavailable

30

CLAMP

90464-16012-00

Unavailable

31

BOLT, UNION

90401-10015-00

Unavailable

32

WASHER, PLATE(481)

90201-10118-00

Unavailable
