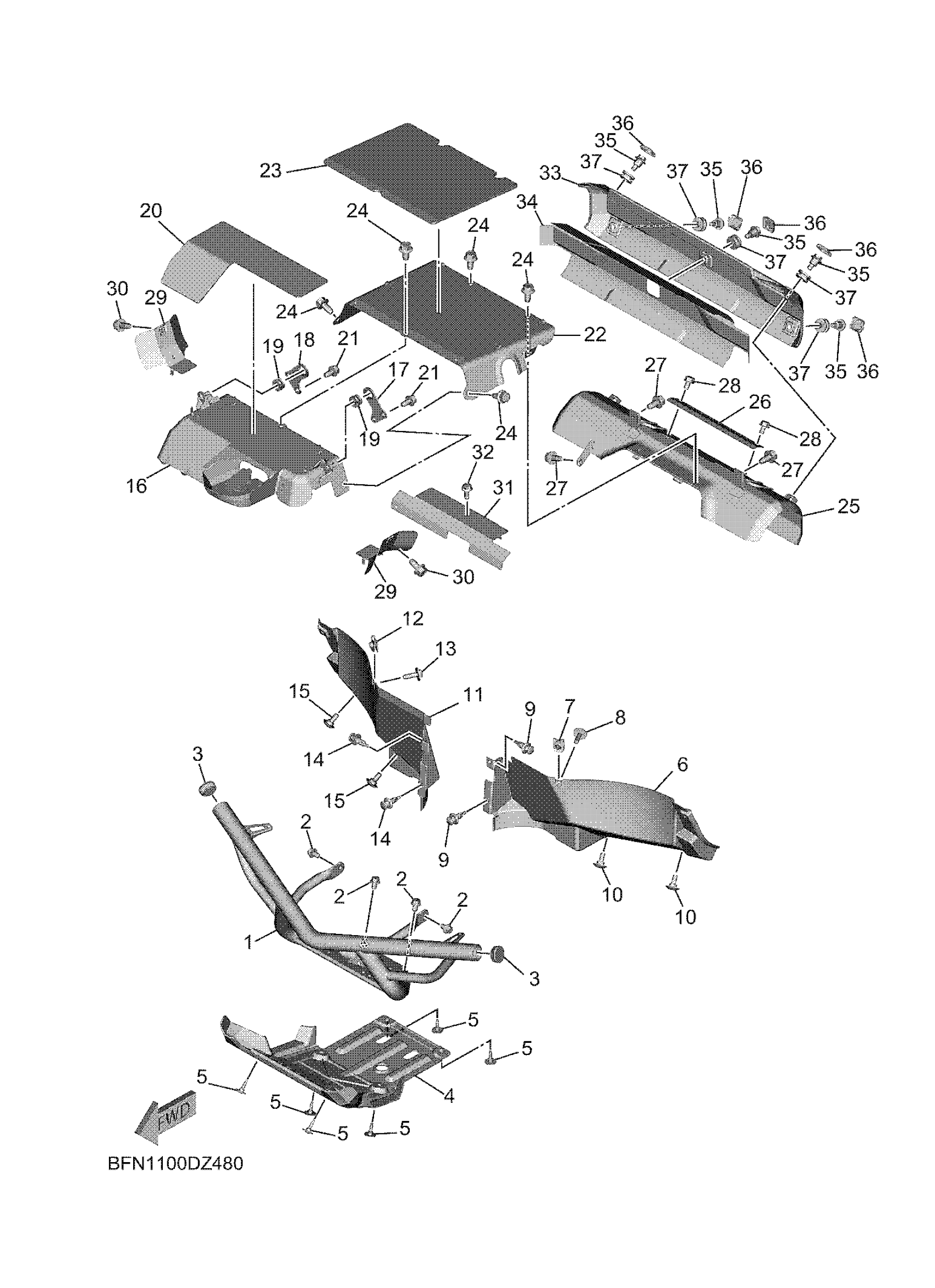

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 GUARD Diagram
#
1
BAR, CARRY FRONT
BAR-F845N-11-00
$234.99
2
BOLT, FLANGE
95812-10016-00
$9.49
3
PLUG (FRONT BUMPER)
5UG-F2417-00-00
$6.99
4
COVER, LOWER
2MB-F8385-01-00
$44.99
5
BOLT
90109-068A5-00
$7.49
6
GUARD 1
BG4-F2361-01-00
$18.99
7
NUT, SPRING
90183-062A1-00
$1.96
8
BOLT, WITH WASHER
90119-06226-00
$8.49
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
BOLT
90109-06334-00
$2.60
11
GUARD 2
BG4-F2362-01-00
$26.99
12
NUT, SPRING
90183-062A1-00
$1.96
13
BOLT, WITH WASHER
90119-06226-00
$8.49
14
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
15
BOLT
90109-06334-00
$2.60
16
INSULATOR, HEAT
B4J-F2898-10-00
Unavailable
17
STAY, 4
B4J-F846W-00-00
Unavailable
18
STAY 5
B4J-F846X-00-00
Unavailable
19
GROMMET
90480-18019-00
Unavailable
20
DAMPER 1
B4J-F8415-00-00
Unavailable
21
BOLT, FLANGE
90105-08867-00
Unavailable
22
SHIELD, HEAT
B4J-F3892-02-00
Unavailable
23
DAMPER 3
B4J-F8425-00-00
Unavailable
24
BOLT, FLANGE
90105-08867-00
Unavailable
25
INSULATOR, MOUNTIN
B4J-F2891-11-00
Unavailable
26
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
27
BOLT, FLANGE
90105-08867-00
Unavailable
28
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
29
PROTECTOR 1
BAR-F2825-00-00
Unavailable
30
BOLT, FLANGE
90105-08867-00
Unavailable
31
PROTECTOR 1
B4J-F2825-03-00
Unavailable
32
BOLT, FLANGE
90105-06831-00
Unavailable
33
PROTECTOR, MUFFLER
BKP-F194H-00-00
Unavailable
34
SHEET, INSULATOR
B4J-HA7E0-00-00
Unavailable
35
BOLT
90109-06214-00
Unavailable
36
CAP
2MB-F143A-00-00
Unavailable
37
GROMMET
90480-12025-00
Unavailable
