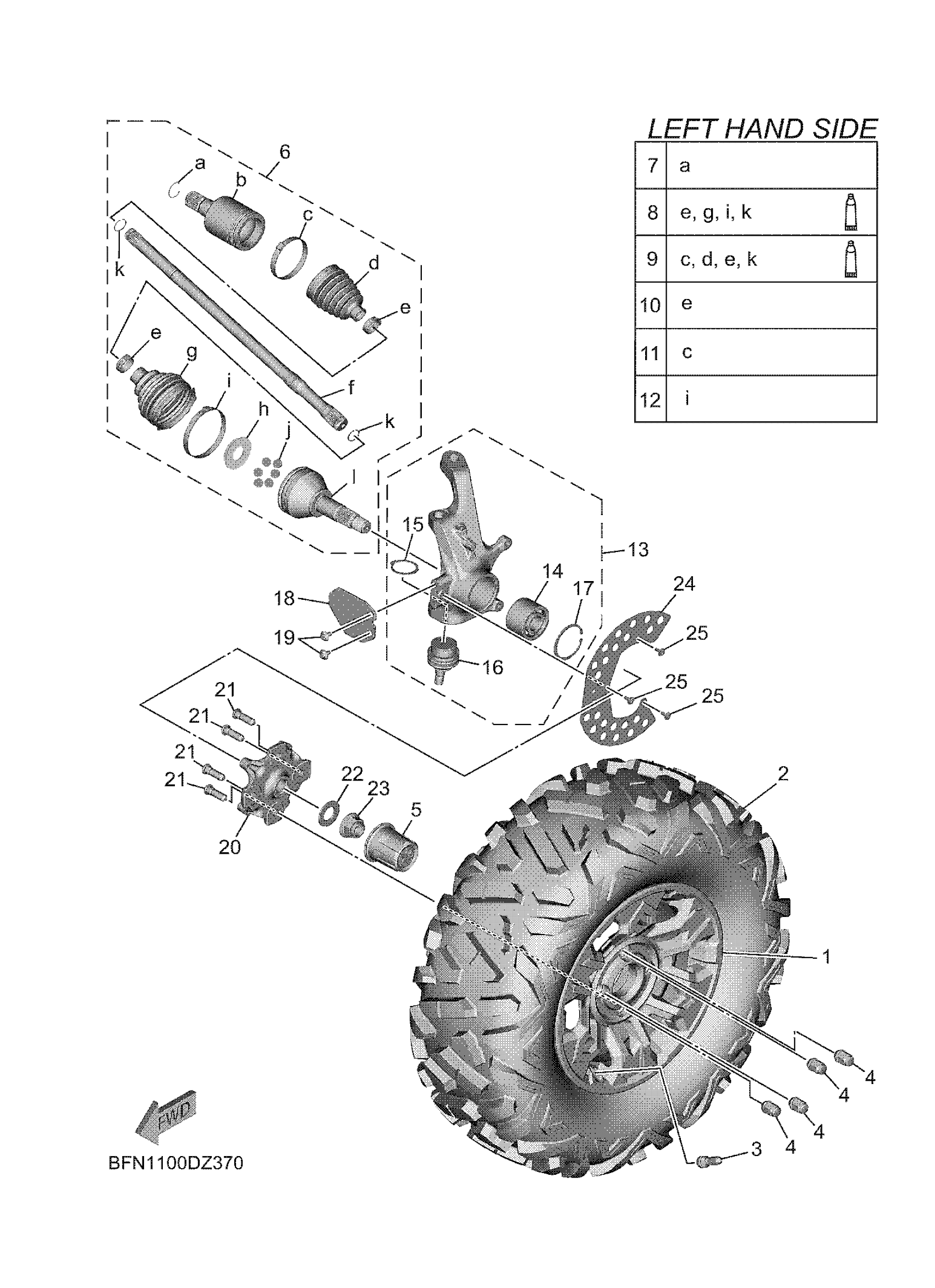

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

BFN-F5168-30-00

Unavailable

2

TIRE (28X10.00R14 M918 6PR TL)

94110-14812-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT, CROWN

90176-12801-00

Unavailable

5

CAP, WHEEL

2MB-F512A-00-00

$2.65

6

DRIVE SHAFT ASSY

BFN-F518F-01-00

$303.99

7

CLIP, SPRING

BFN-F536E-00-00

Unavailable

8

BOOT SET (BALL JOI

BFN-F510G-00-00

$83.99

9

BOOT SET(DOUBLE OF

BFN-F510H-00-00

$198.99

10

BAND

B4J-F5719-00-00

$10.49

11

BOOT BAND(DOUBLE O

BFN-F511H-00-00

Unavailable

12

BAND

B4J-F639A-00-00

$5.60

13

STEERING KNUCKLE A

BFN-F3501-00-00

$242.99

14

BEARING

93305-00604-00

$125.99

15

CIRCLIP(MF1)

99009-62500-00

$8.49

16

BALL JOINT 2

2HC-23579-00-00

Unavailable

17

CIRCLIP

93410-42096-00

Unavailable

18

COVER, UNDER 1

BFN-F3123-00-00

Unavailable

19

BOLT

90109-06202-00

Unavailable

20

HUB, FRONT

2HC-F5111-02-00

Unavailable

21

BOLT, SERRATION

90114-12005-00

Unavailable

22

WASHER, PLATE

90201-25023-00

Unavailable

23

NUT

90179-24006-00

Unavailable

24

RING, WHEEL 1

BFN-F514A-01-00

Unavailable

25

SCREW

90149-06852-00

Unavailable
