- YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025
FRONT FENDER

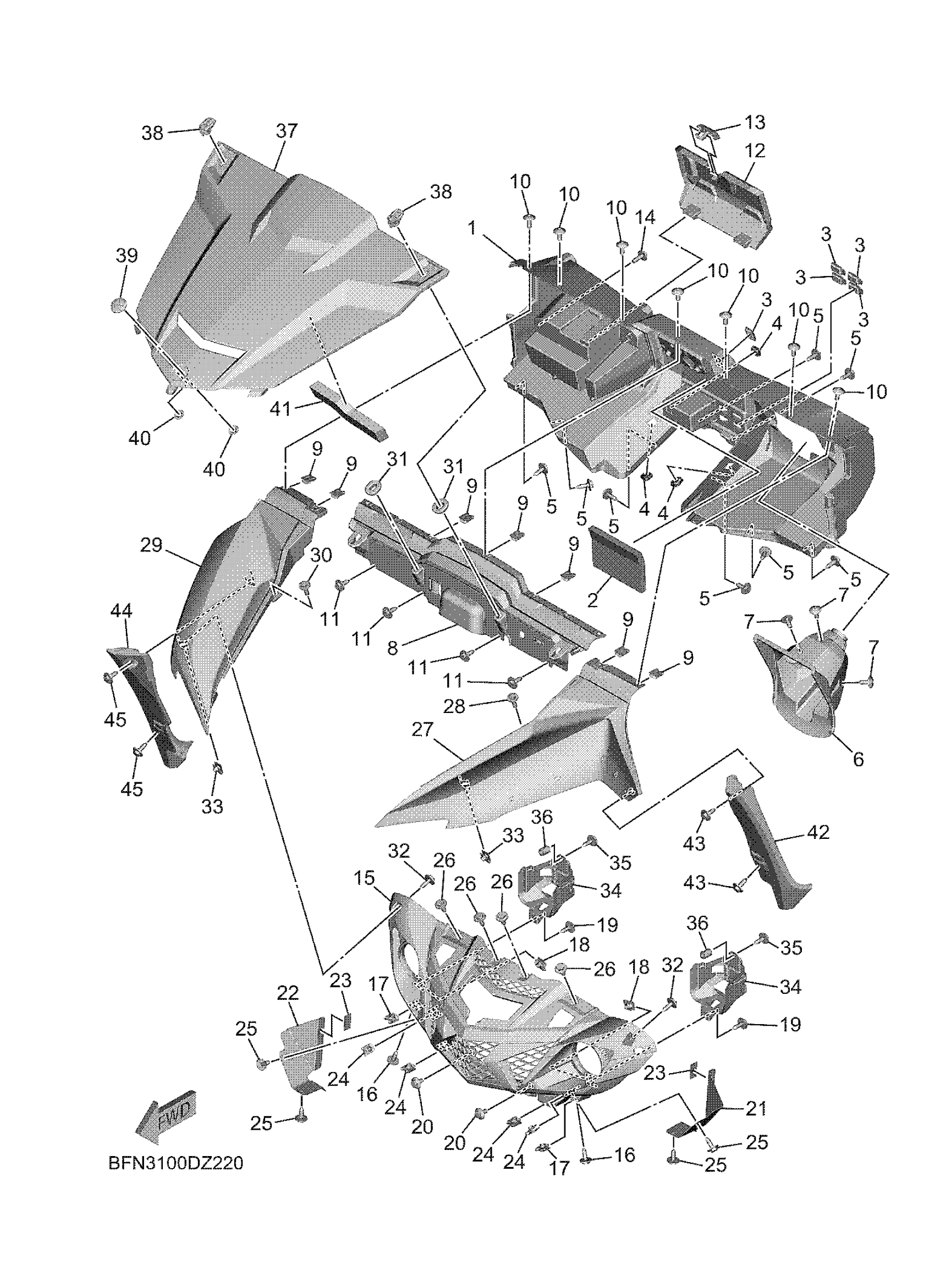

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 FRONT FENDER Diagram
#
Description
Price
3
PLUG, HOLE
BG4-F312G-00-00
Unavailable
7
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
10
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
13
LOCK
F2X-U2875-00-00
Unavailable
14
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
20
BOLT
90109-06202-00
Unavailable
21
COVER 1
BFN-E246A-00-00
Unavailable
22
COVER 2
BG4-E246E-00-00
Unavailable
23
DAMPER
5UG-K7588-01-00
Unavailable
27
FENDER, FRONT
BG4-F1511-80-00
Unavailable
28
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
29
FENDER, FRONT 2
BG4-F1556-80-00
Unavailable
30
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
31
GROMMET(4DN)
90480-01558-00
Unavailable
34
COVER, HEADLIGHT
2UD-F838E-00-00
Unavailable
36
HOSE
90445-08029-00
Unavailable
37
HOOD 1
BG4-F1982-80-00
Unavailable
38
LEVER, LOCK
1XD-2175K-10-00
Unavailable
39
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
40
NUT, SPRING
90183-06071-00
Unavailable
41
DAMPER, PLATE
90520-50004-00
Unavailable
42
EXTENSION, FRONT F
BFN-K8185-00-00
Unavailable
44
EXTENSION, FRONT F
BFN-K8186-00-00
Unavailable
