- YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025
FRONT BRAKE CALIPER

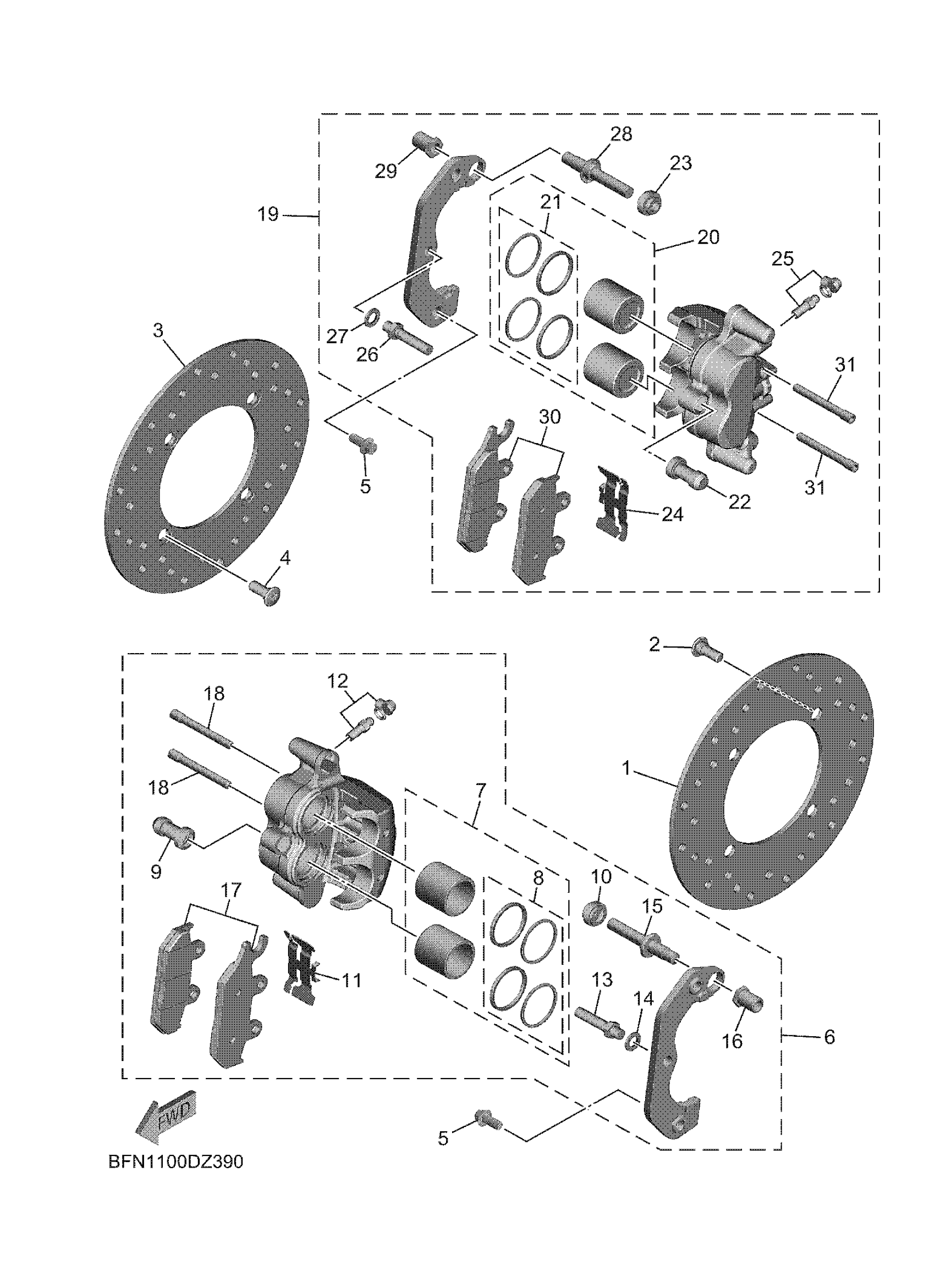

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 FRONT BRAKE CALIPER Diagram
#
1
DISC, BRAKE (LEFT)
2MB-F582T-00-00
Unavailable
2
BOLT
90109-08077-00
$8.49
3
DISC, BRAKE (LEFT)
2MB-F582T-00-00
Unavailable
4
BOLT
90109-08077-00
$8.49
5
BOLT, FLANGE
90105-10265-00
$5.60
6
CALIPER ASSY (LEFT)
1XD-2580T-00-00
$427.99
7
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
8
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
9
BOOT 2
1UY-25937-51-00
$14.49
10
BOOT, CALIPER
3JD-25917-00-00
$8.99
11
SUPPORT, PAD
1XD-25919-00-00
$13.49
12
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
13
BOLT
1UY-25926-51-00
$4.47
14
WASHER, SPRING
1UY-25938-51-00
Unavailable
15
BOLT
3JD-25926-00-00
$7.99
16
NUT
3JD-25961-00-00
Unavailable
17
BRAKE PAD KIT
1XD-25805-00-00
Unavailable
18
PIN, PAD
3TB-25933-00-00
Unavailable
19
CALIPER ASSY (RIGHT)
1XD-2580U-00-00
Unavailable
20
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
21
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
22
BOOT 2
1UY-25937-51-00
$14.49
23
BOOT, CALIPER
3JD-25917-00-00
$8.99
24
SUPPORT, PAD
1XD-25919-00-00
$13.49
25
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
26
BOLT
1UY-25926-51-00
$4.47
27
WASHER, SPRING
1UY-25938-51-00
Unavailable
28
BOLT
3JD-25926-00-00
$7.99
29
NUT
3JD-25961-00-00
Unavailable
30
BRAKE PAD KIT
1XD-25805-10-00
Unavailable
31
PIN, PAD
3TB-25933-00-00
Unavailable
