Description

Price

1

SENSOR, OXYGEN

1WS-8592A-10-00

$224.99

2

PLATE

B4J-E4255-00-00

$2.12

3

GASKET

B4J-11198-00-00

$5.49

4

WIRE HARNESS ASSY

BFN-82590-10-00

Unavailable

5

FUSE

5JJ-82151-60-00

$7.99

6

FUSE (15A)

67F-82151-50-00

Unavailable

7

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

8

. FUSE (10A)

67F-82151-40-00

Unavailable

9

CIRCUIT BREAKER ASSY

5B4-82180-00-00

$43.99

10

THERMO SWITCH ASSY

5B4-82560-00-00

$56.99

11

FUSE

5JJ-82151-20-00

$7.99

12

FUSE (50A)

BMG-82151-B0-00

Unavailable

13

FUSE

BDW-82151-A0-00

$10.49

14

CLAMP

90464-48800-00

Unavailable

15

CLAMP(2TV)

90464-10112-00

$8.49

16

CLAMP

90464-12830-00

Unavailable

17

CLAMP

90464-36008-00

Unavailable

18

CLAMP

1NS-F1338-00-00

Unavailable

19

CLAMP(2TV)

90464-10112-00

$8.49

20

CLAMP(JN6)

90464-31827-00

Unavailable

21

CLAMP(JN6)

90464-40825-00

Unavailable

22

CLAMP

90464-10009-00

Unavailable

23

CONNECTOR

B5H-82378-00-00

Unavailable

24

MOLD, FUEL TANK

5VN-24188-00-00

Unavailable

25

CONNECTOR

B4J-82378-20-00

Unavailable

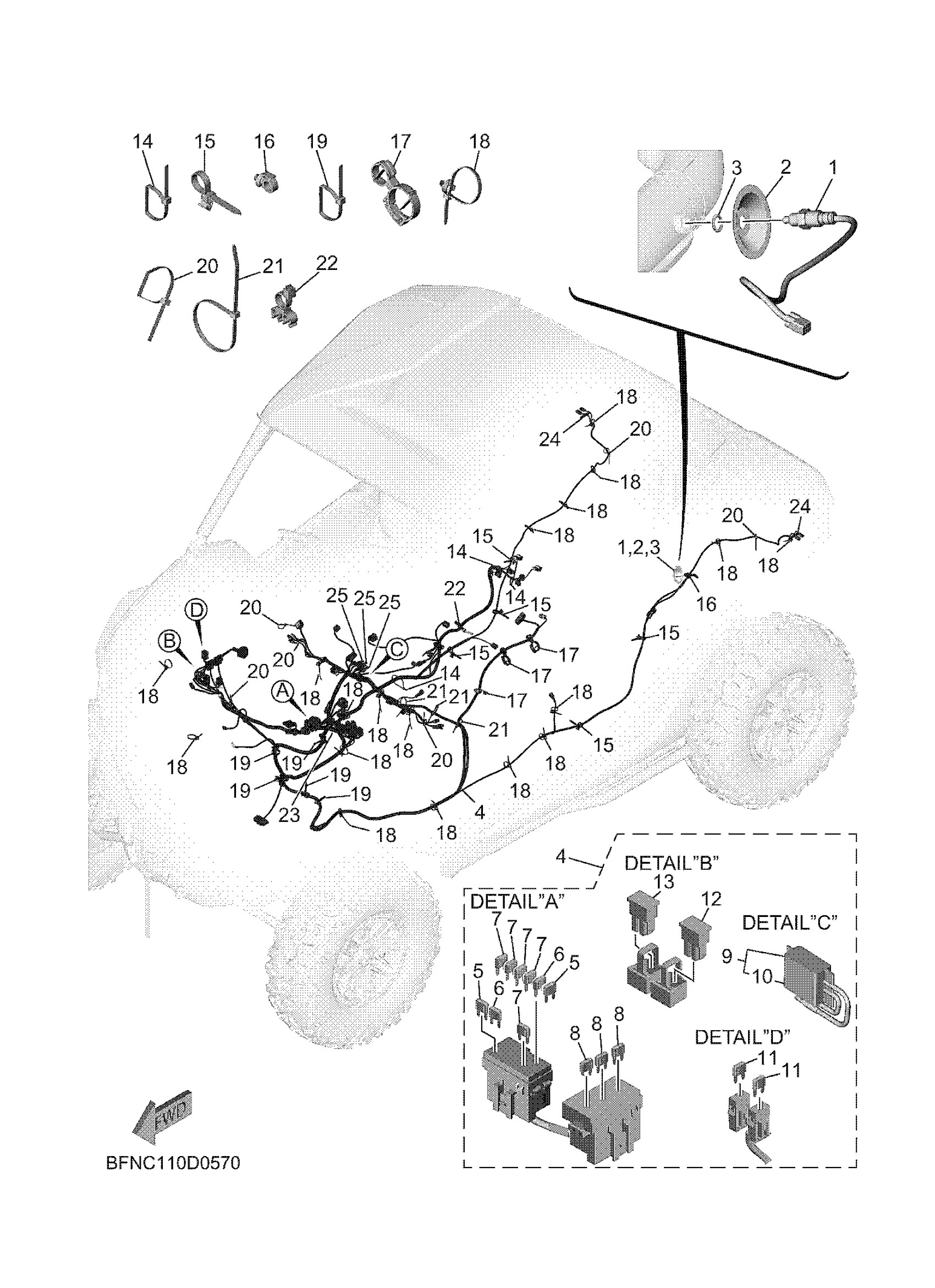

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 ELECTRICAL 3 Diagram

SENSOR, OXYGEN

PLATE

GASKET

WIRE HARNESS ASSY

FUSE

FUSE (15A)

FUSE (7.5A-BL)

. FUSE (10A)

CIRCUIT BREAKER ASSY

THERMO SWITCH ASSY

FUSE

FUSE (50A)

FUSE

CLAMP

CLAMP(2TV)

CLAMP

CLAMP

CLAMP

CLAMP(2TV)

CLAMP(JN6)

CLAMP(JN6)

CLAMP

CONNECTOR

MOLD, FUEL TANK

CONNECTOR
