- YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025
ELECTRICAL 2

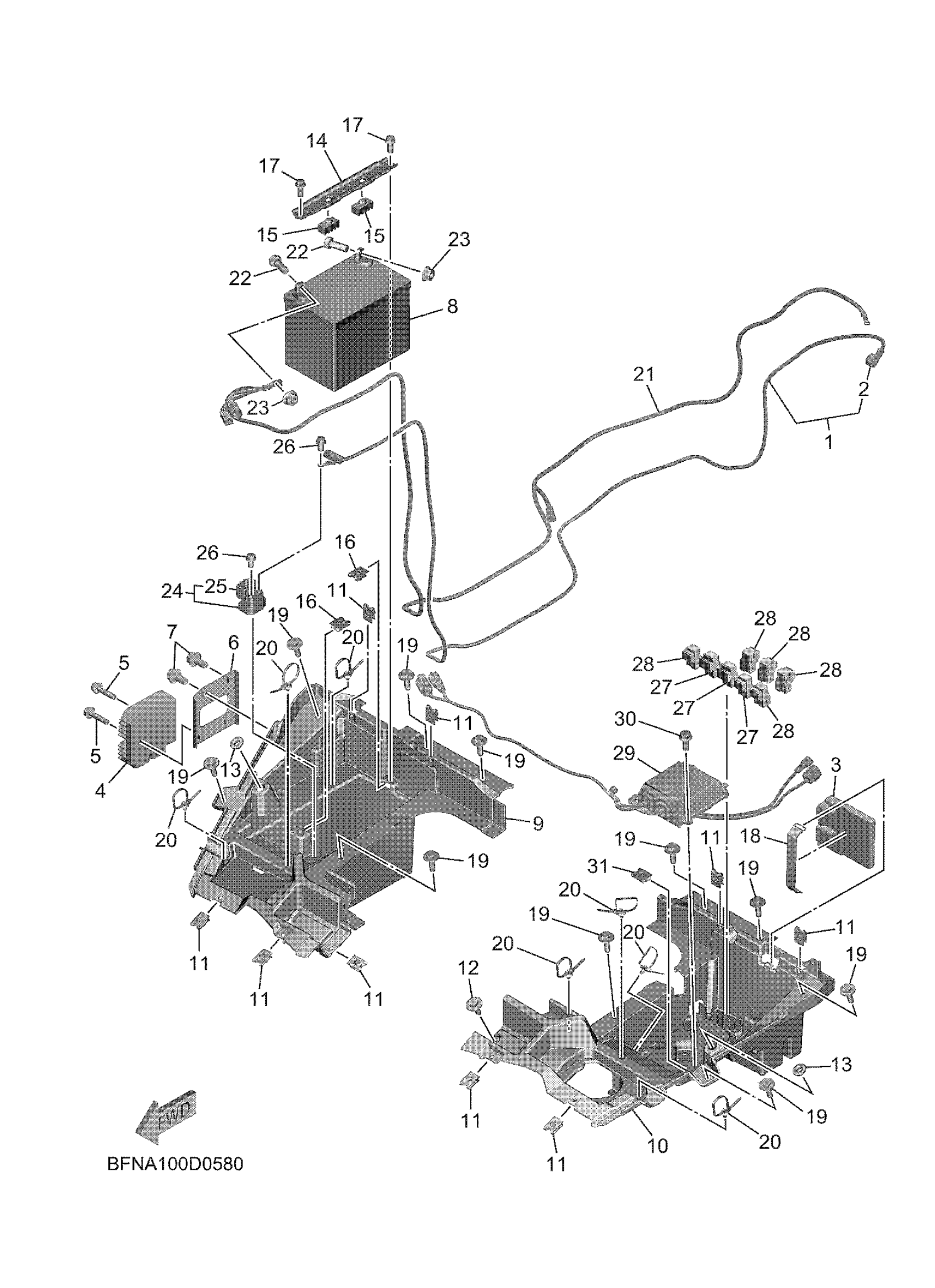

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 ELECTRICAL 2 Diagram
#
1
CORD, STARTER MOTOR
BKP-81815-00-00
Unavailable
2
CAP
4B5-81871-00-00
Unavailable
3
ENGINE CONTROL UNI
BFN-8591A-02-00
Unavailable
4
RECTIFIER & REGULATOR ASSY
BFN-81960-00-00
Unavailable
5
BLOT, FLANGE DEEP RECESS
95D32-06025-00
$1.07
6
PLATE, REGULATOR
BFN-F1169-00-00
Unavailable
7
BOLT, FLANGE
90105-08867-00
$15.99
8
BATTERY ASSY (GS U1-H11L)
5UG-H2100-11-00
Unavailable
9
BOX, BATTERY 1
BG4-H212B-00-00
$81.99
10
PANEL, SWITCH
BG4-H2565-00-00
$92.99
11
NUT, SPRING
90183-062A1-00
$1.96
12
BOLT, WITH WASHER
90119-06226-00
$8.49
13
GROMMET(4DN)
90480-01558-00
$4.19
14
BRACKET, BATTERY
2HC-H2128-00-00
$10.49
15
PAD, SEAT
3C3-24741-00-00
$9.99
16
NUT, SPRING
90183-062A1-00
$1.96
17
BOLT, FLANGE
95022-06014-00
Unavailable
18
BAND, BATTERY
5JJ-82131-00-00
Unavailable
19
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
20
CLAMP
1NS-F1338-00-00
Unavailable
21
WIRE, MINUS LEAD
BFN-82116-01-00
Unavailable
22
BOLT(6TD)
97080-08020-00
Unavailable
23
NUT
90179-08015-00
Unavailable
24
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
25
FUSE (10A)
42X-82151-00-00
Unavailable
26
BOLT, FLANGE
95022-06008-00
Unavailable
27
RELAY ASSY
5DM-81950-01-00
Unavailable
28
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
29
POWER STRG. CONT.
BFN-859A0-00-00
Unavailable
30
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
31
NUT, SPRING
90183-062A1-00
$1.96
