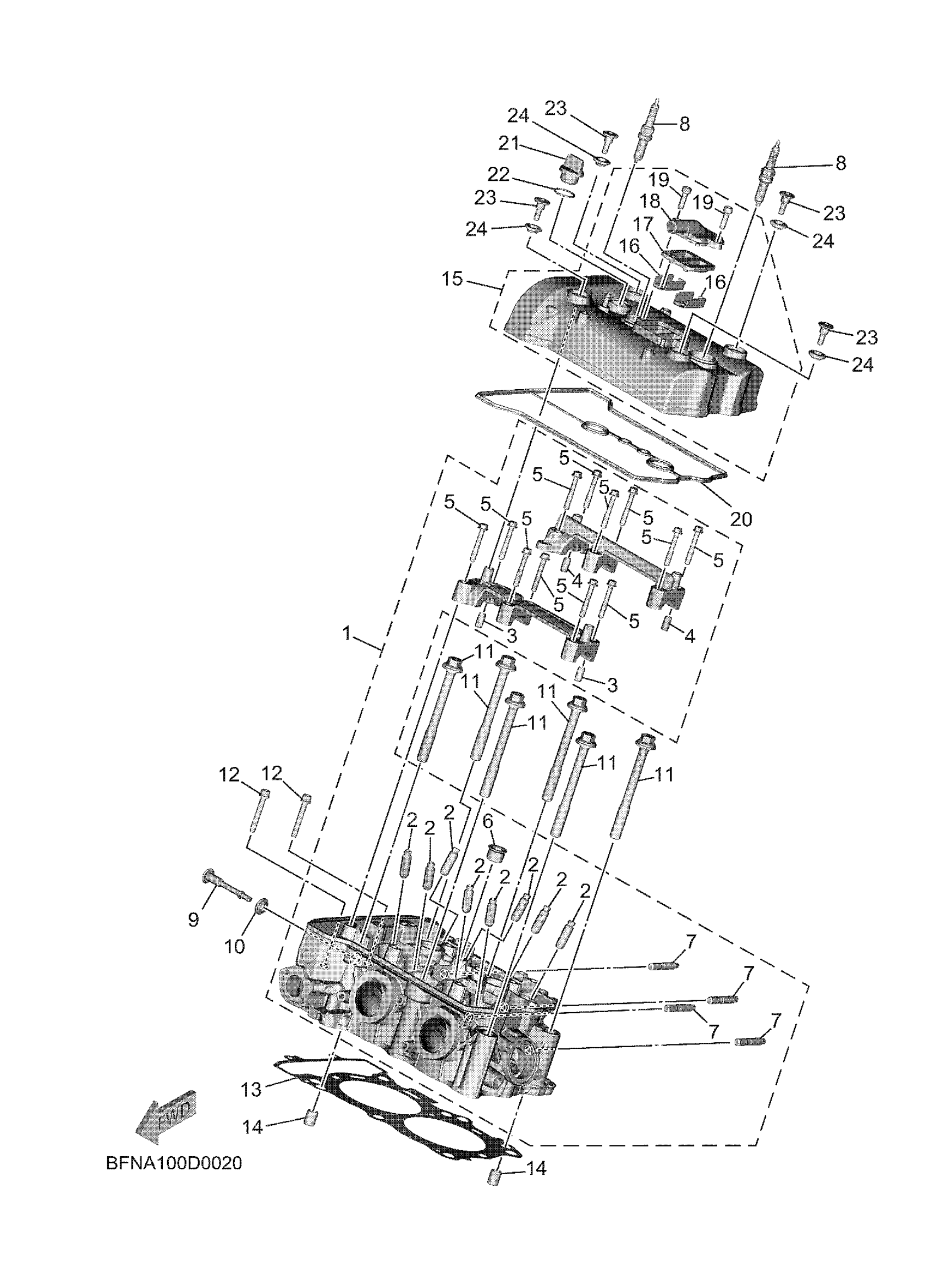

Yamaha YXE10WTASD (WOLVERINE X2 1000 R SPEC) BFNC 2025 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

B1R-E1101-09-00

$448.99

2

GUIDE, VALVE 1

23P-11133-10-00

$80.99

3

PIN, DOWEL(3XW)

91808-16023-00

$8.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

7

BOLT, STUD

90116-08087-00

$8.49

8

PLUG, SPARK (NGK LMAR8GI-8)

LMA-R8GI8-00-00

Unavailable

9

BOLT

90109-06293-00

$13.99

10

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

11

BOLT, WITH WASHER

90119-12004-00

$16.99

12

BOLT, HEXAGON SOCKET HEAD

90110-06081-00

Unavailable

13

GASKET, CYLINDER HEAD 1

B1R-11181-00-00

Unavailable

14

PIN, DOWEL

99530-12016-00

$4.89

15

COVER, CYLINDER HEAD 1

B1R-E1190-01-00

Unavailable

16

PLATE

5VY-1482K-00-00

Unavailable

17

REED VALVE ASSY

5SL-14890-00-00

Unavailable

18

CAP, CASE

B1R-E4899-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

20

GASKET, HEAD COVER 1

B1R-11193-00-00

Unavailable

21

PLUG, OIL

3Y1-15363-10-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

BOLT(4BP)

90109-066F0-00

Unavailable

24

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99
