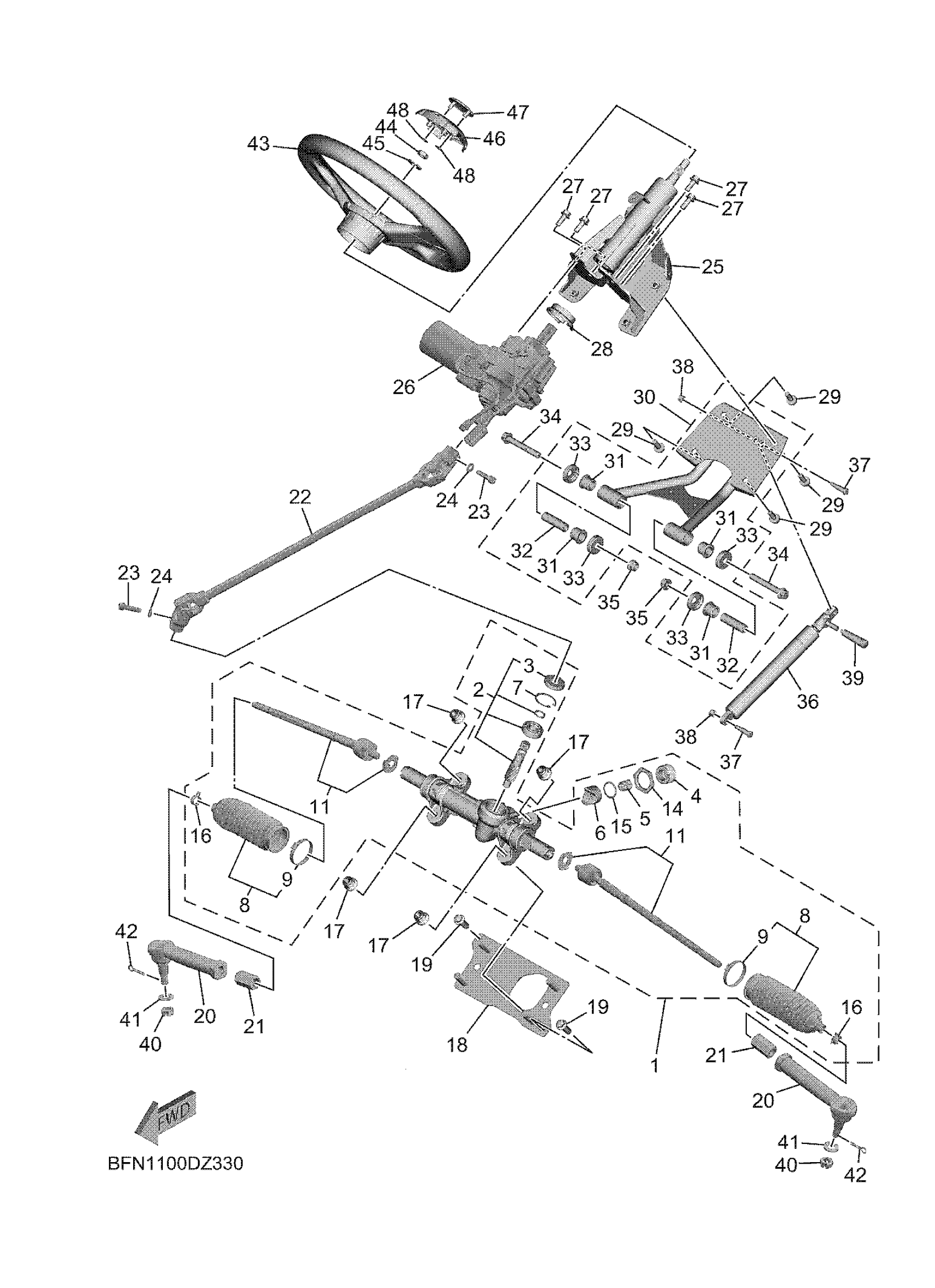

Yamaha YXE10WTARW (WOLVERINE 1000 X2 EPS) BFN3 2024 STEERING Diagram
#
1
STEERING ASSY
BFN-F3400-00-00
$231.99
2
STEERING PINION SE
BFN-F38G0-00-00
$64.99
3
SEAL
B4J-F3844-00-00
$10.49
4
COVER,ADJUST
1XD-F387G-00-00
Unavailable
5
SPRING,PRESSURE
1XD-F387K-00-00
Unavailable
6
PAD,PRESSURE
1XD-F387F-00-00
Unavailable
7
RING, STOPPE
B4J-F387J-00-00
$88.99
8
SEAL 1 W/ BAND SET OF 2
1XD-F1208-00-00
Unavailable
9
BAND
1XD-F3489-00-00
$2.81
11
RACK END SET
BFN-F38H0-00-00
Unavailable
14
LOCK ASSY
1XD-F178K-00-00
Unavailable
15
WASHER
1XD-F3165-00-00
$1.92
16
CLIP
1XD-F3447-00-00
$1.92
17
NUT, SELF-LOCKING
90185-12002-00
$12.49
18
BRACKET, STEERING
BFN-F3868-00-00
Unavailable
19
BOLT, FLANGE
95817-06012-00
Unavailable
20
JOINT, UNIVERSAL 1
2HC-23841-00-00
Unavailable
21
NUT 1
2HC-F3833-00-00
Unavailable
22
STEERING SHAFT ASSY
BFN-F3840-00-00
Unavailable
23
91312-08030
91312-08030-00
Unavailable
24
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
25
COLUMN, STEERING 2
BG4-23813-01-00
Unavailable
26
POWER STRG. ACTUATOR ASSY
BFN-238B0-04-00
Unavailable
27
BOLT, FLANGE DEEP RECESS
95D32-08020-00
Unavailable
28
COVER, DUST
2MB-2384L-00-00
Unavailable
29
BOLT, FLANGE DEEP RECESS
95D32-08020-00
Unavailable
30
TOP MOUNT COMP.
BG4-F33B0-02-00
Unavailable
31
BUSH, SOLID(3GG)
90381-15088-00
Unavailable
32
COLLAR
90387-10111-00
Unavailable
33
COVER, THRUST 1
1UY-23517-01-00
Unavailable
34
BOLT, FLANGE
90105-10267-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
Unavailable
36
SPRING,DAMPER
BG4-F3855-01-00
Unavailable
37
BOLT
90109-06255-00
Unavailable
38
NUT, NYLON
95707-06300-00
Unavailable
39
HANDLE
BG4-F4812-01-00
Unavailable
40
NUT, CASTLE
90171-12001-00
Unavailable
41
WASHER, PLATE
90201-12045-00
Unavailable
42
PIN, COTTER
91490-20025-00
Unavailable
43
WHEEL,STEERING
2HC-F3838-02-00
Unavailable
44
NUT, SELF-LOCKING
90185-12007-00
Unavailable
45
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
46
COVER, STEERING
2HC-F3818-00-00
Unavailable
47
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
48
NUT, SPRING
90183-06071-00
Unavailable
