- YXE10WTARW (WOLVERINE 1000 X2 EPS) BFN3 2024
REAR WHEEL 2

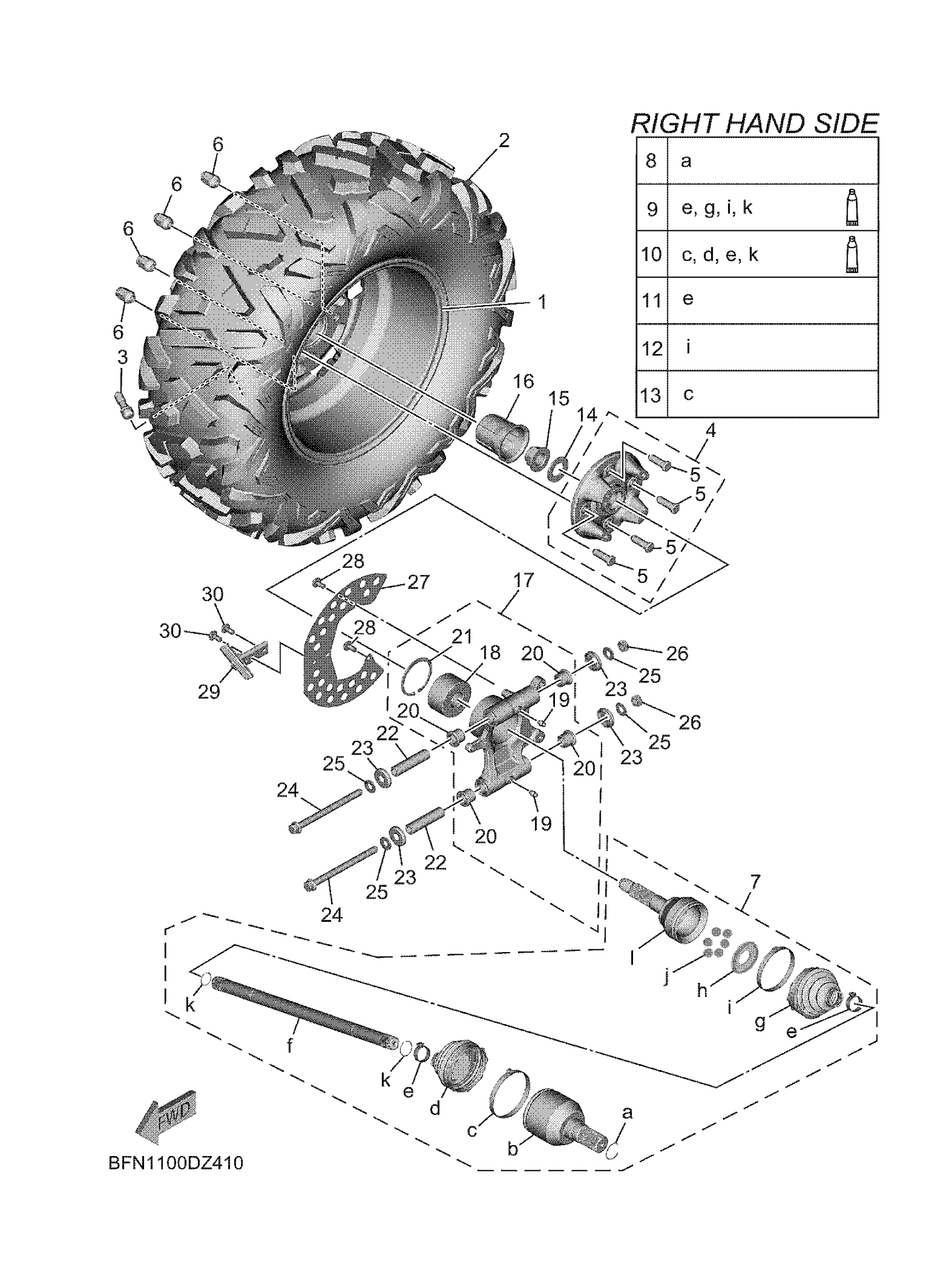

Yamaha YXE10WTARW (WOLVERINE 1000 X2 EPS) BFN3 2024 REAR WHEEL 2 Diagram
#
1
CAST WHEEL, FRONT
BFN-F5168-00-00
$815.99
2
TIRE (28X10.00R14 M918 6PR TL)
94110-14812-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB ASSY 2
2MB-F510D-04-00
Unavailable
5
BOLT, SERRATION
90114-12005-00
$2.97
6
NUT, CROWN
90176-12801-00
Unavailable
7
REAR DRIVE SHAFT A
BFN-F531H-01-00
$348.99
8
CLIP, SPRING
B4J-F536E-00-00
Unavailable
9
BOOT SET (BALL JOI
BFN-F530X-00-00
$83.99
10
BOOT SET(DOUBLE OF
BFN-F530Y-00-00
$159.99
11
BAND
B4J-F5719-00-00
$10.49
12
BAND
B4J-F639A-00-00
$5.60
13
BAND
BFN-F6293-00-00
Unavailable
14
WASHER, PLATE
90201-25023-00
$10.49
15
NUT
90179-24006-00
$13.99
16
CAP, WHEEL
2MB-F512A-00-00
Unavailable
17
REAR KNUCKLE ASSY.
BFN-F532F-00-00
Unavailable
18
BEARING
93305-00603-00
Unavailable
19
NIPPLE, GREASE
93700-06M03-00
Unavailable
20
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
21
CIRCLIP (70R)
93420-72065-00
Unavailable
22
COLLAR
90387-12060-00
Unavailable
23
COVER, THRUST 1
1XD-23517-01-00
Unavailable
24
BOLT, FLANGE
90105-12091-00
Unavailable
25
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
26
NUT, SELF-LOCKING
90185-12007-00
Unavailable
27
RING, WHEEL 1
BFN-F514A-01-00
Unavailable
28
SCREW
90149-06852-00
Unavailable
29
PLATE, GUIDE 2
1XD-F2342-00-00
Unavailable
30
SCREW
90149-06852-00
Unavailable
