Description

Price

1

CAST WHEEL, FRONT

BFN-F5168-00-00

$815.99

2

TIRE (28X10.00R14 M918 6PR TL)

94110-14812-00

Unavailable

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT, CROWN

90176-12801-00

Unavailable

5

CAP, WHEEL

2MB-F512A-00-00

$2.65

6

DRIVE SHAFT ASSY

BFN-F518F-01-00

$303.99

7

CLIP, SPRING

BFN-F536E-00-00

Unavailable

8

BOOT SET (BALL JOI

BFN-F510G-00-00

$83.99

9

BOOT SET(DOUBLE OF

BFN-F510H-00-00

$198.99

10

BAND

B4J-F5719-00-00

$10.49

11

BOOT BAND(DOUBLE O

BFN-F511H-00-00

Unavailable

12

BAND

B4J-F639A-00-00

$5.60

13

STEERING KNUCKLE A

BFN-F3501-00-00

$242.99

14

BEARING

93305-00604-00

$125.99

15

CIRCLIP(MF1)

99009-62500-00

$8.49

16

BALL JOINT 2

2HC-23579-00-00

Unavailable

17

CIRCLIP

93410-42096-00

Unavailable

18

COVER, UNDER 1

BFN-F3123-00-00

Unavailable

19

BOLT

90109-06202-00

Unavailable

20

HUB, FRONT

2HC-F5111-02-00

Unavailable

21

BOLT, SERRATION

90114-12005-00

Unavailable

22

WASHER, PLATE

90201-25023-00

Unavailable

23

NUT

90179-24006-00

Unavailable

24

RING, WHEEL 1

BFN-F514A-01-00

Unavailable

25

SCREW

90149-06852-00

Unavailable

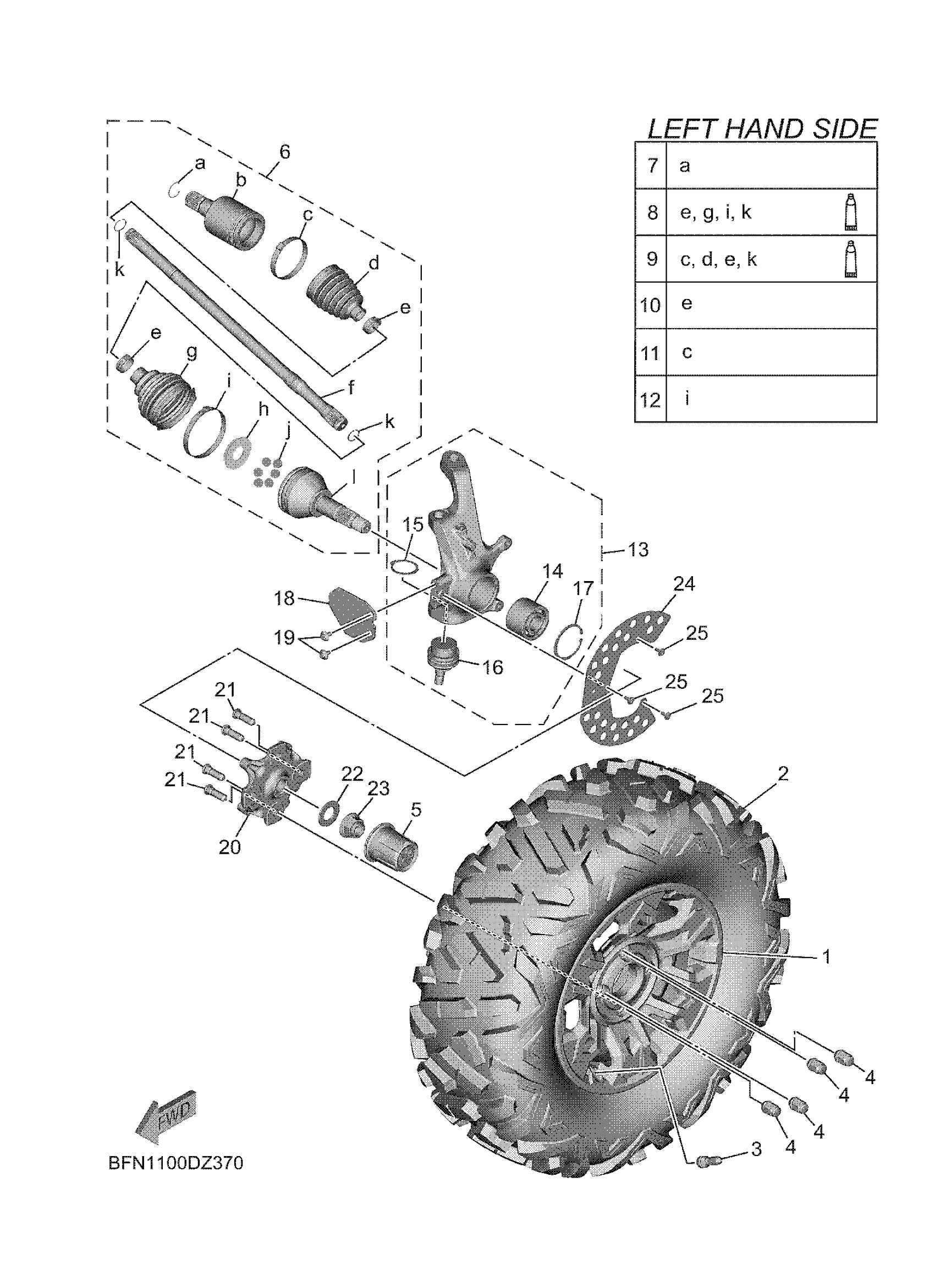

Yamaha YXE10WTARW (WOLVERINE 1000 X2 EPS) BFN3 2024 FRONT WHEEL Diagram

CAST WHEEL, FRONT

TIRE (28X10.00R14 M918 6PR TL)

VALVE, RIM

NUT, CROWN

CAP, WHEEL

DRIVE SHAFT ASSY

CLIP, SPRING

BOOT SET (BALL JOI

BOOT SET(DOUBLE OF

BAND

BOOT BAND(DOUBLE O

BAND

STEERING KNUCKLE A

BEARING

CIRCLIP(MF1)

BALL JOINT 2

CIRCLIP

COVER, UNDER 1

BOLT

HUB, FRONT

BOLT, SERRATION

WASHER, PLATE

NUT

RING, WHEEL 1

SCREW
