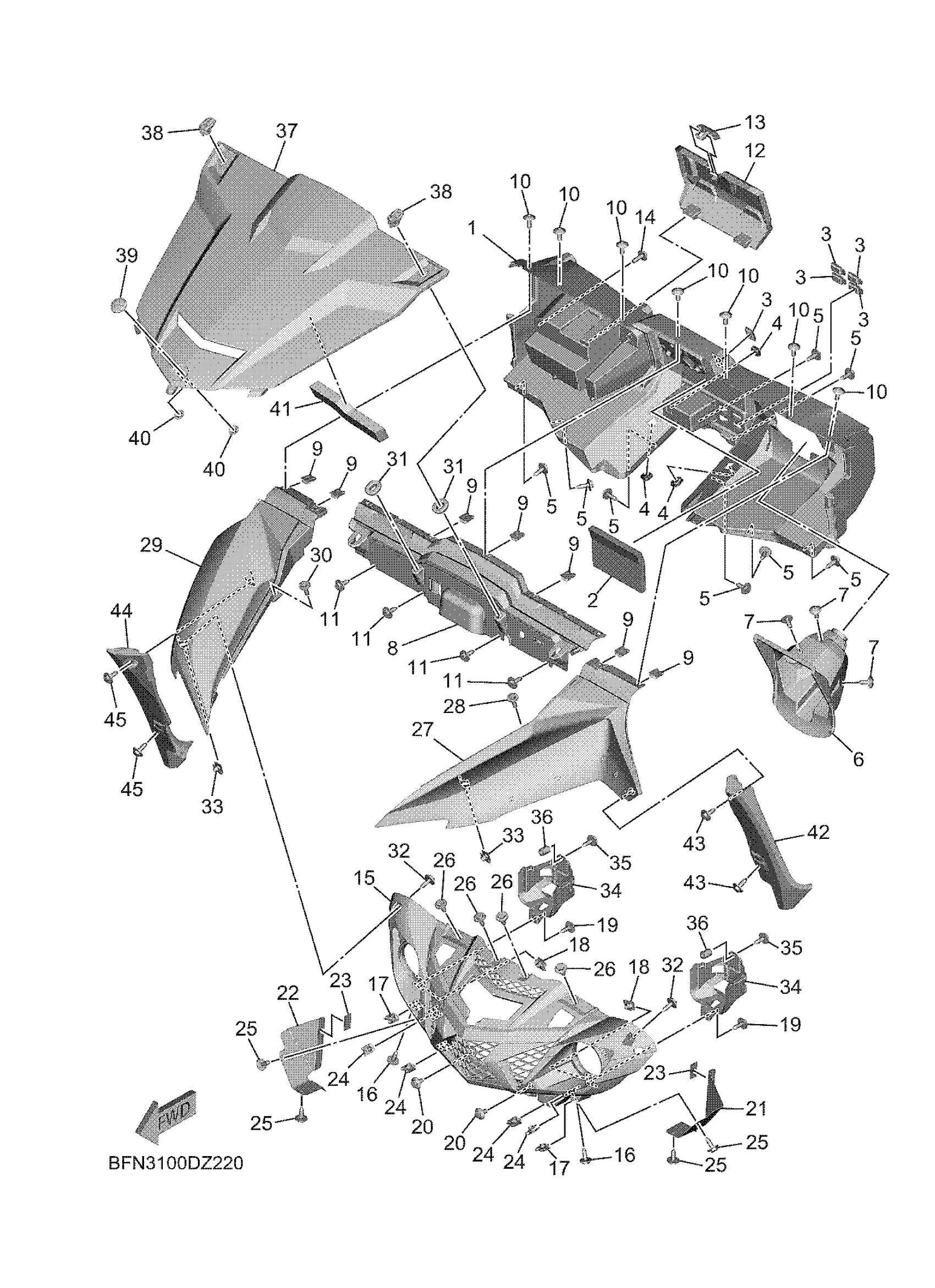

Yamaha YXE10WTARW (WOLVERINE 1000 X2 EPS) BFN3 2024 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

BAR-K7711-01-00

$170.83

2

INSULATOR 4

B8K-F173S-00-00

$6.36

3

PLUG, HOLE

BG4-F312G-00-00

$1.51

4

CAP 2

B4J-F3742-00-00

$1.55

5

BOLT, WITH WASHER

90119-06226-00

$2.12

6

COVER, STEERING

BG4-F3818-00-00

$16.95

7

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

8

COVER, FRONT

BG4-F2865-00-00

$34.67

9

NUT, SPRING

90183-062A1-00

$1.75

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

LID

BG4-F160F-00-00

$11.03

13

LOCK

F2X-U2875-00-00

$2.57

14

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

15

GRILLE, FRONT

BG4-F8309-11-00

$67.85

16

BOLT, WITH WASHER

90119-06226-00

$2.12

17

NUT, SPRING

90183-062A1-00

$1.75

18

NUT, SPRING

90183-062A1-00

$1.75

19

BOLT, WITH WASHER

90119-06226-00

$2.12

20

BOLT

90109-06202-00

Unavailable

21

COVER 1

BFN-E246A-00-00

Unavailable

22

COVER 2

BG4-E246E-00-00

Unavailable

23

DAMPER

5UG-K7588-01-00

Unavailable

24

NUT, SPRING

90183-062A1-00

$1.75

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

BOLT, WITH WASHER

90119-06226-00

$2.12

27

FENDER, FRONT

BG4-F1511-50-00

Unavailable

28

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

29

FENDER, FRONT 2

BG4-F1556-50-00

Unavailable

30

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

31

GROMMET(4DN)

90480-01558-00

Unavailable

32

BOLT, WITH WASHER

90119-06226-00

$2.12

33

NUT, SPRING

90183-062A1-00

$1.75

34

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

35

BOLT, WITH WASHER

90119-06226-00

$2.12

36

HOSE

90445-08029-00

$3.07

37

HOOD 1

BG4-F1982-21-00

Unavailable

38

LEVER, LOCK

1XD-2175K-10-00

Unavailable

39

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

40

NUT, SPRING

90183-06071-00

$0.50

41

DAMPER, PLATE

90520-50004-00

Unavailable

42

EXTENSION, FRONT F

BFN-K8185-00-00

Unavailable

43

BOLT, WITH WASHER

90119-06226-00

$2.12

44

EXTENSION, FRONT F

BFN-K8186-00-00

Unavailable

45

BOLT, WITH WASHER

90119-06226-00

$2.12
