Description

Price

1

PIPE, EXHAUST 1

B4J-E4611-01-00

$237.99

2

HEAT PROTECTOR 3

B4J-E268A-00-00

$4.82

3

HOSE CLAMP ASSY

90450-45807-00

$3.45

4

HEAT PROTECTOR 4

B4J-E268B-00-00

$7.49

5

HOSE CLAMP ASSY

90450-65802-00

$3.61

6

PIPE, EXHAUST 2

B4J-E4621-00-00

$123.99

7

HEAT PROTECTOR 5

B4J-E268C-00-00

$5.60

8

HOSE CLAMP ASSY

90450-65802-00

$3.61

9

MUFFLER 1

B4J-E4711-03-00

Unavailable

10

SPARK ARRESTER ASS

B4J-E4780-01-00

$86.99

11

GASKET, SILENCER

2HC-14755-00-00

$22.99

12

BOLT, FLANGE

95022-06012-00

$3.29

13

DAMPER,FOOTREST

1HP-F7414-00-00

$21.99

14

GASKET, EXHAUST PIPE

3EG-14613-00-00

$23.99

15

NUT,FLANGE(J10)

95702-08500-00

$1.43

16

SPRING, MUFFLER

B4J-14774-00-00

Unavailable

17

BOLT

B4J-14651-00-00

Unavailable

18

BOLT, FLANGE

95817-08040-00

Unavailable

19

WASHER

3B4-14759-01-00

Unavailable

20

GASKET, MUFFLER

B4J-14714-00-00

Unavailable

21

HOSE, BEND 1

B4J-E4881-00-00

Unavailable

22

HOSE, BEND 2

B4J-E4882-00-00

Unavailable

23

AIR CUT VALVE ASSY

2MB-14840-00-00

Unavailable

24

CLIP(3TB)

90467-17128-00

Unavailable

25

CLIP (4V3)

90467-20050-00

Unavailable

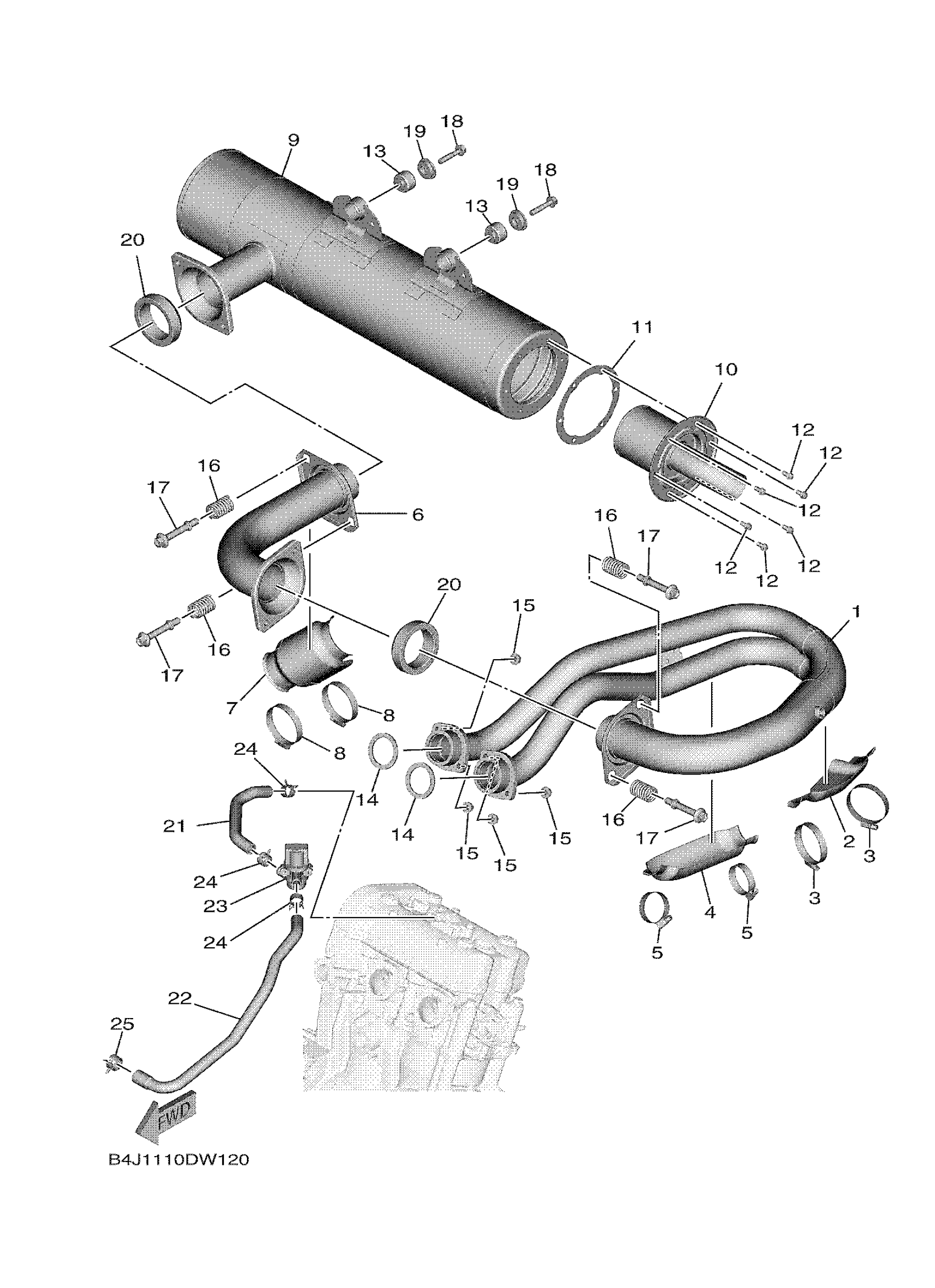

Yamaha YXE10WTARW (WOLVERINE 1000 X2 EPS) BFN3 2024 EXHAUST Diagram

PIPE, EXHAUST 1

HEAT PROTECTOR 3

HOSE CLAMP ASSY

HEAT PROTECTOR 4

HOSE CLAMP ASSY

PIPE, EXHAUST 2

HEAT PROTECTOR 5

HOSE CLAMP ASSY

MUFFLER 1

SPARK ARRESTER ASS

GASKET, SILENCER

BOLT, FLANGE

DAMPER,FOOTREST

GASKET, EXHAUST PIPE

NUT,FLANGE(J10)

SPRING, MUFFLER

BOLT

BOLT, FLANGE

WASHER

GASKET, MUFFLER

HOSE, BEND 1

HOSE, BEND 2

AIR CUT VALVE ASSY

CLIP(3TB)

CLIP (4V3)
