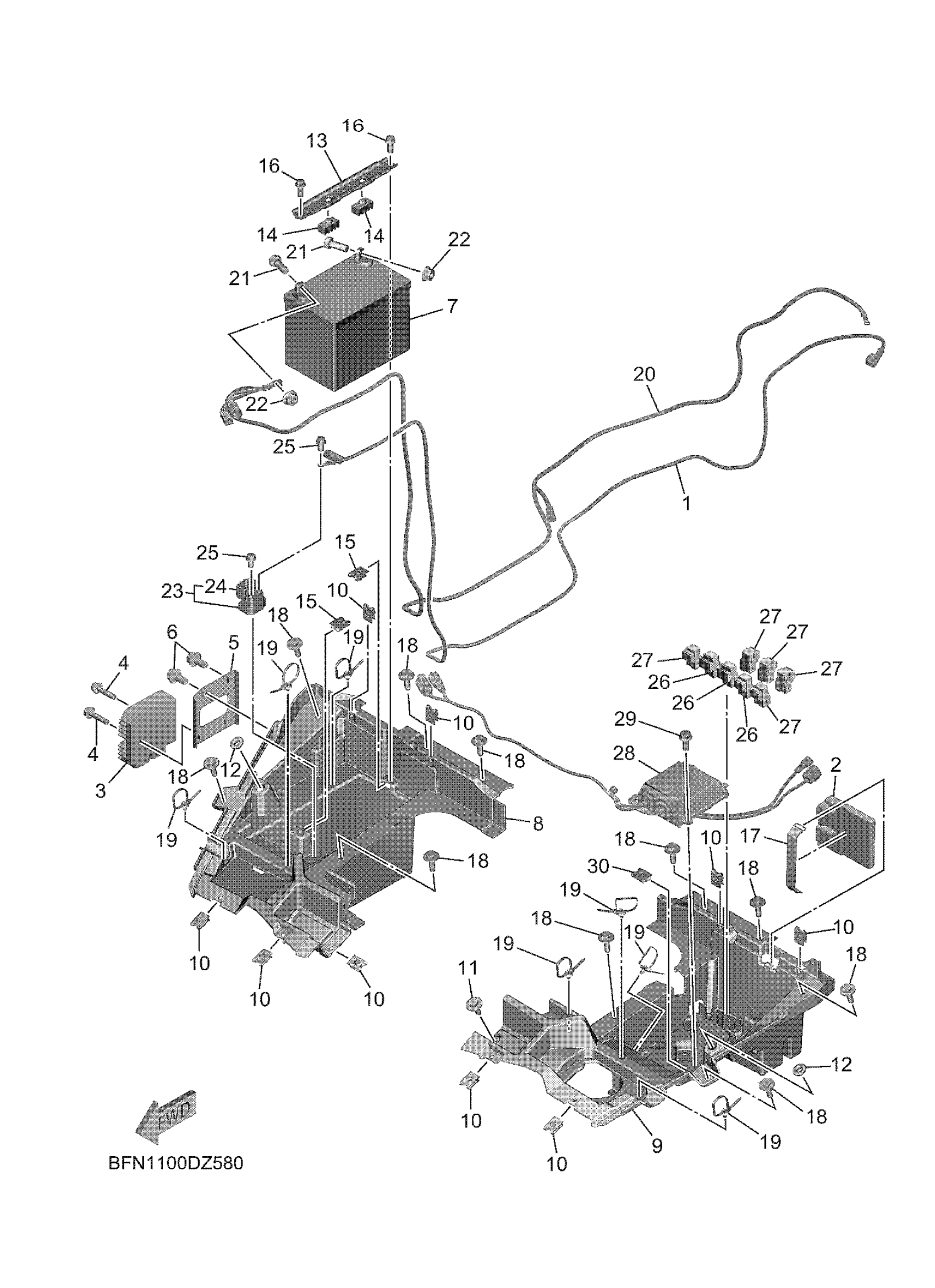

Yamaha YXE10WTARW (WOLVERINE 1000 X2 EPS) BFN3 2024 ELECTRICAL 2 Diagram

#

Description
Price

1

CORD, STARTER MOTOR

B1R-81815-00-00

Unavailable

2

ENGINE CONTROL UNIT ASSY

BFN-8591A-01-00

Unavailable

3

RECTIFIER & REGULATOR ASSY

BFN-81960-00-00

Unavailable

4

BLOT, FLANGE DEEP RECESS

95D32-06025-00

$1.07

5

PLATE, REGULATOR

BFN-F1169-00-00

Unavailable

6

BOLT, FLANGE

90105-08867-00

$15.99

7

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

8

BOX, BATTERY 1

BG4-H212B-00-00

$81.99

9

PANEL, SWITCH

BG4-H2565-00-00

$92.99

10

NUT, SPRING

90183-062A1-00

$1.96

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

GROMMET(4DN)

90480-01558-00

$4.19

13

BRACKET, BATTERY

2HC-H2128-00-00

$10.49

14

PAD, SEAT

3C3-24741-00-00

$9.99

15

NUT, SPRING

90183-062A1-00

$1.96

16

BOLT, FLANGE

95022-06014-00

Unavailable

17

BAND, BATTERY

5JJ-82131-00-00

Unavailable

18

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

19

CLAMP

1NS-F1338-00-00

Unavailable

20

WIRE, MINUS LEAD

BFN-82116-00-00

Unavailable

21

BOLT(6TD)

97080-08020-00

Unavailable

22

NUT

90179-08015-00

Unavailable

23

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

24

FUSE (10A)

42X-82151-00-00

Unavailable

25

BOLT, FLANGE

95022-06008-00

Unavailable

26

RELAY ASSY

5DM-81950-01-00

Unavailable

27

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

28

POWER STRG. CONT.

BFN-859A0-00-00

Unavailable

29

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable

30

NUT, SPRING

90183-062A1-00

$1.96
