- YXE10WRZTM (WOLVERINE RMAX2 1000 XT R) BKP9 2026
SHIFT SHAFT

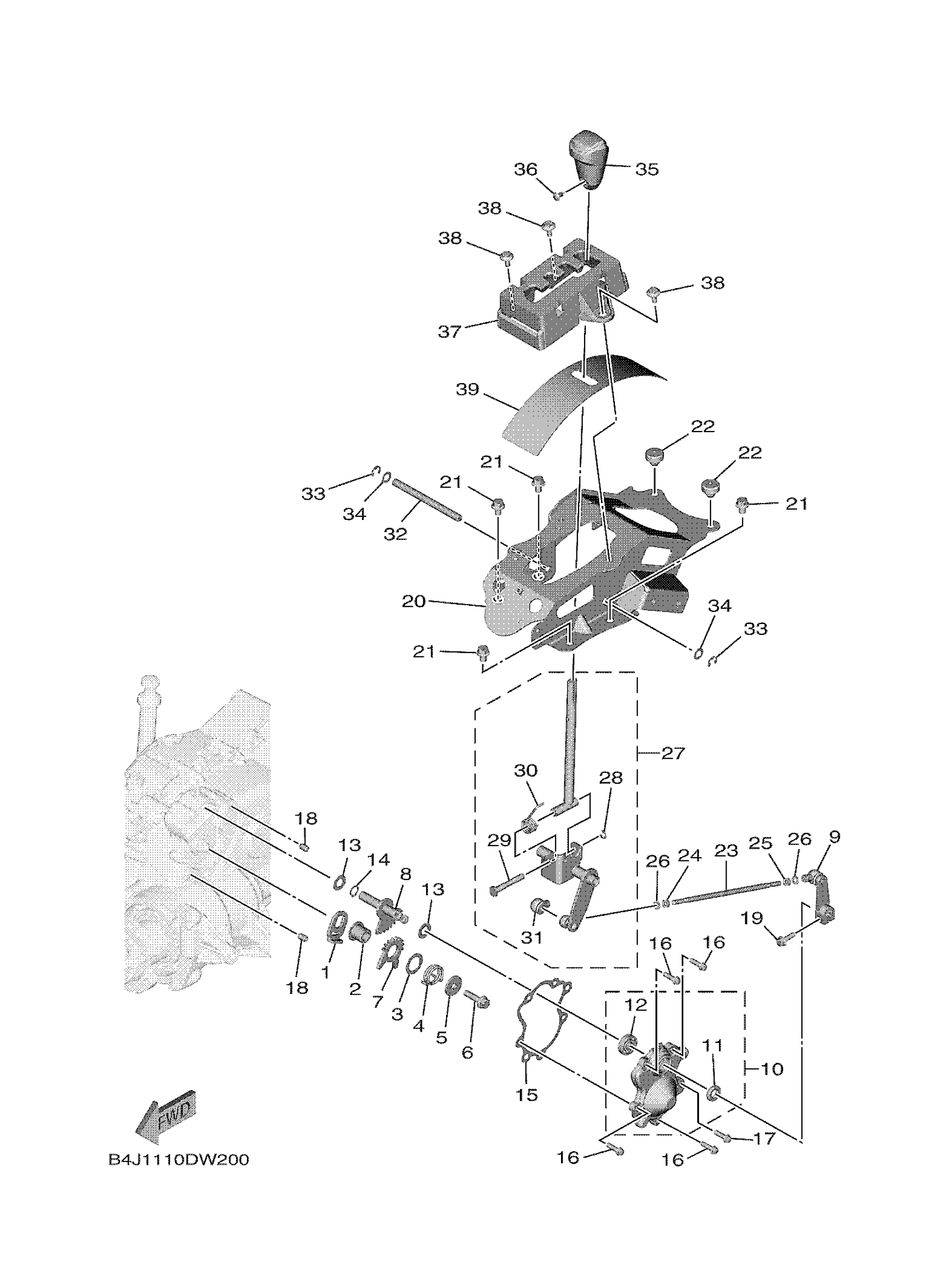

Yamaha YXE10WRZTM (WOLVERINE RMAX2 1000 XT R) BKP9 2026 SHIFT SHAFT Diagram
#
1
LEVER
BG4-18198-00-00
$4.88
2
COLLAR
90387-13007-00
Unavailable
3
WASHER PLATE 328171160000
90201-20276-00
$8.49
4
SPRING, TORSION
90508-32143-00
$3.76
5
WASHER, PLATE (8M2)
90201-083A8-00
$2.02
6
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
7
LEVER
BG4-18191-00-00
$9.49
8
SHIFT SHAFT COMP.
BG4-18103-00-00
$38.99
9
SHIFT GUIDE COMP.
BG4-18104-00-00
Unavailable
10
SHIFTER BRKT. ASSY
BG4-18380-00-00
Unavailable
11
OIL SEAL (12X22X5-371)
93102-12106-00
$11.49
12
BRG,R-B 6001 28MM 28G KY
93306-00105-00
$30.99
13
WASHER, PLATE (5N6)
90201-127E1-00
$4.29
14
CIRCLIP(10Y)
99009-12400-00
$3.59
15
GASKET
BG4-18146-00-00
$8.49
16
. BOLT, FLANGE
95027-06020-00
Unavailable
17
BOLT, FLANGE
95022-06020-00
Unavailable
18
PIN, DOWEL
99530-08012-00
Unavailable
19
BOLT, FLANGE
95817-06020-00
Unavailable
20
SUPPORT, SHIFT BRA
B4J-F2595-01-00
Unavailable
21
BOLT, FLANGE DEEP RECESS
95D32-08012-00
Unavailable
22
PLUG
90338-10801-00
Unavailable
23
ROD, SHIFT
B4J-18115-00-00
Unavailable
24
NUT (2H9)
90170-06228-00
Unavailable
25
NUT(JN5)
95317-06700-00
Unavailable
26
WASHER, PLATE
90201-06034-00
Unavailable
27
SHIFT LEVER ASSY
B4J-E8150-01-00
Unavailable
28
CIRCLIP(53L)
99001-06600-00
Unavailable
29
SHAFT, SHIFT
1HP-E8125-00-00
Unavailable
30
SPRING, RETURN
1HP-E8196-00-00
Unavailable
31
COVER, DUST
2H9-18154-00-00
Unavailable
32
PIN, SHIFT
BG4-18173-00-00
Unavailable
33
CIRCLIP(2R6)
99001-08600-00
Unavailable
34
WASHER, PLAIN(735)
90201-10119-00
Unavailable
35
KNOB, SHIFT LEVER
B4J-E8174-00-00
Unavailable
36
RIVET(81E)
90269-05055-00
Unavailable
37
GUIDE, SHIFT
B4J-E8172-01-00
Unavailable
38
BOLT
90109-06172-00
Unavailable
39
COVER, DUST
B4J-E8154-01-00
Unavailable
