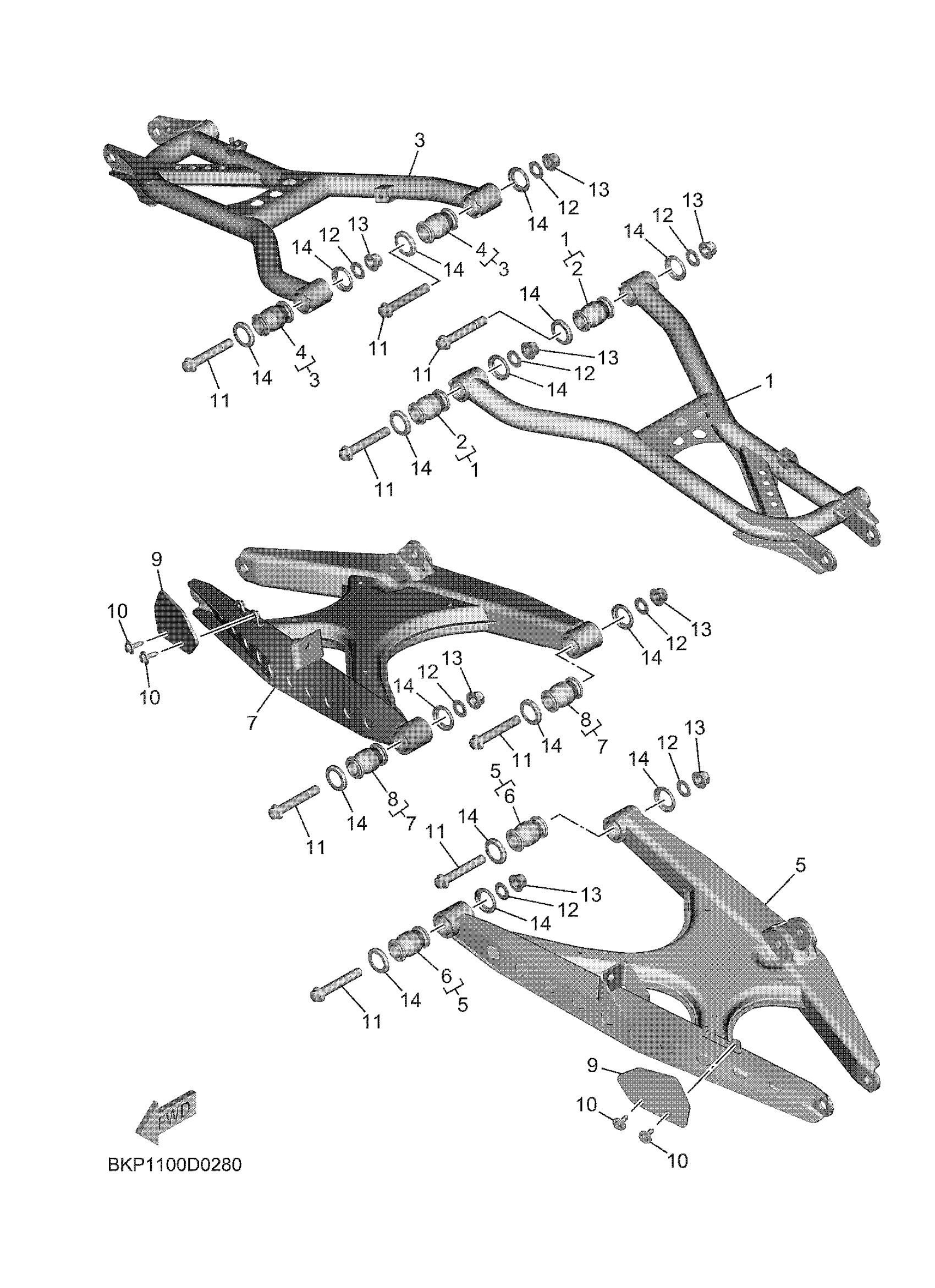

Yamaha YXE10WRZTM (WOLVERINE RMAX2 1000 XT R) BKP9 2026 REAR ARM Diagram

#

Description
Price

1

RR. ARM ASSY

B4M-F2102-03-00

$112.99

2

BUSH

B4J-F3526-01-00

Unavailable

3

RR. ARM ASSY

B4M-F2103-03-00

Unavailable

4

BUSH

B4J-F3526-01-00

Unavailable

5

REAR ARM ASSY 1

BYP-F210M-01-00

$216.99

6

BUSH

B4J-F3526-01-00

Unavailable

7

REAR ARM ASSY 2

BYP-F210N-01-00

Unavailable

8

BUSH

B4J-F3526-01-00

Unavailable

9

COVER, THRUST 1

2HC-F2128-10-00

$2.49

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

BOLT, FLANGE

90105-12095-00

$9.49

12

WASHER, PLATE

90201-12045-00

$5.60

13

NUT, SELF-LOCKING

90185-12002-00

$12.49

14

COVER, THRUST 1

B4J-F3517-00-00

$0.96
