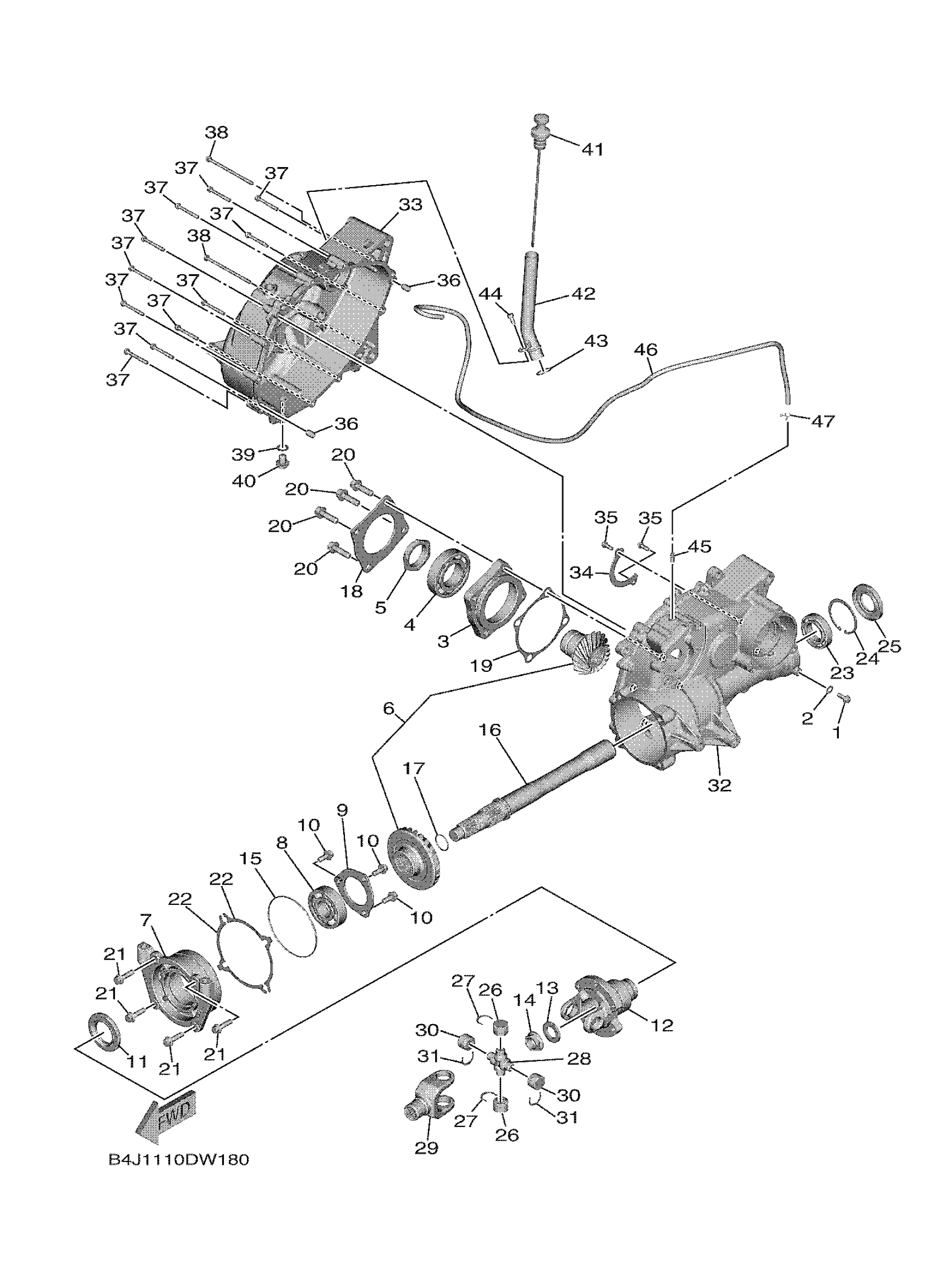

Yamaha YXE10WRZTM (WOLVERINE RMAX2 1000 XT R) BKP9 2026 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

BOLT, FLANGE

95022-06010-00

$5.60

2

GASKET 256113960000

90430-06014-00

Unavailable

3

HOUSING, BEARING

BG4-17521-00-00

Unavailable

4

BEARING

93306-20904-00

$86.99

5

NUT

90179-44001-00

Unavailable

6

PINION SET

B4J-17530-00-00

Unavailable

7

HOUSING, BEARING

B4J-17551-00-00

Unavailable

8

BEARING

93306-30646-00

$75.99

9

PLATE, BRG. 2

B4J-17568-00-00

Unavailable

10

BOLT, FLANGE

95812-08020-00

$2.80

11

OIL SEAL

93102-40031-00

$16.99

12

YOKE,JOINT 2

B4J-17576-00-00

Unavailable

13

WASHER, PLATE

90201-22026-00

$7.49

14

NUT

90179-22025-00

$20.99

15

O-RING (5H0)

93211-05471-00

$14.99

16

SHAFT, MIDDLE DRIVEN

B4J-17553-00-00

Unavailable

17

O-RING (M01)

93210-25755-00

Unavailable

18

PLATE, BEARING COVER

BG4-15383-00-00

Unavailable

19

SHIM, PINION (0.25T)

BG4-17531-00-00

Unavailable

19

SHIM, PINION (0.30T)

BG4-17531-10-00

Unavailable

19

SHIM, PINION (0.35T)

BG4-17531-20-00

Unavailable

19

SHIM, PINION (0.40T)

BG4-17531-30-00

Unavailable

19

SHIM, PINION (0.45T)

BG4-17531-40-00

Unavailable

19

SHIM, PINION (0.50T)

BG4-17531-50-00

Unavailable

20

BOLT, FLANGE

95812-10035-00

Unavailable

21

BOLT, FLANGE

90105-08236-00

Unavailable

22

SHIM, THRUST (0.15T)

BG4-17537-00-00

Unavailable

22

SHIM, THRUST (0.20T)

BG4-17537-10-00

Unavailable

22

SHIM, THRUST (0.25T)

BG4-17537-20-00

Unavailable

22

SHIM, THRUST (0.30T)

BG4-17537-30-00

Unavailable

22

SHIM, THRUST (0.40T)

BG4-17537-40-00

Unavailable

22

SHIM, THRUST (0.50T)

BG4-17537-50-00

Unavailable

22

SHIM, THRUST (0.60T)

BG4-17537-60-00

Unavailable

23

BRG,R-B 6007 62MM 150G KY

93306-00702-00

Unavailable

24

CIRCLIP(MF1)

99009-62500-00

Unavailable

25

OIL SEAL

93102-35042-00

Unavailable

26

BEARING

93399-99965-00

Unavailable

27

CIRCLIP

93440-23197-00

Unavailable

28

SPIDER

1YW-46187-10-00

Unavailable

29

YOKE, JOINT 2

BG4-46147-00-00

Unavailable

30

BEARING

93399-99965-00

Unavailable

31

CIRCLIP

93440-23197-00

Unavailable

32

CASE, TRANSFER 1

BG4-17541-10-00

Unavailable

33

CASE, TRANSFER 2

BG4-17542-01-00

Unavailable

34

PLATE, BEARING

B4J-17558-00-00

Unavailable

35

BOLT, FLANGE

95022-06016-00

Unavailable

36

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

37

BOLT, FLANGE

95022-06045-00

Unavailable

38

BOLT, FLANGE

95022-06100-00

Unavailable

39

GASKET(3FD)

90430-12213-00

Unavailable

40

PLUG, STRAIGHT SCREW

90340-12006-00

Unavailable

41

PLUG, OIL LEVEL

BG4-15362-00-00

Unavailable

42

PIPE, OIL

BG4-15112-00-00

Unavailable

43

O-RING (26H)

93210-21631-00

Unavailable

44

BOLT,SOCKET

91317-06012-00

Unavailable

45

. CONNECTOR, SUCTION PIPE

137-13115-01-00

Unavailable

46

HOSE (L1200)

90445-080K8-00

Unavailable

47

CLIP (16G)

90467-08021-00

Unavailable
