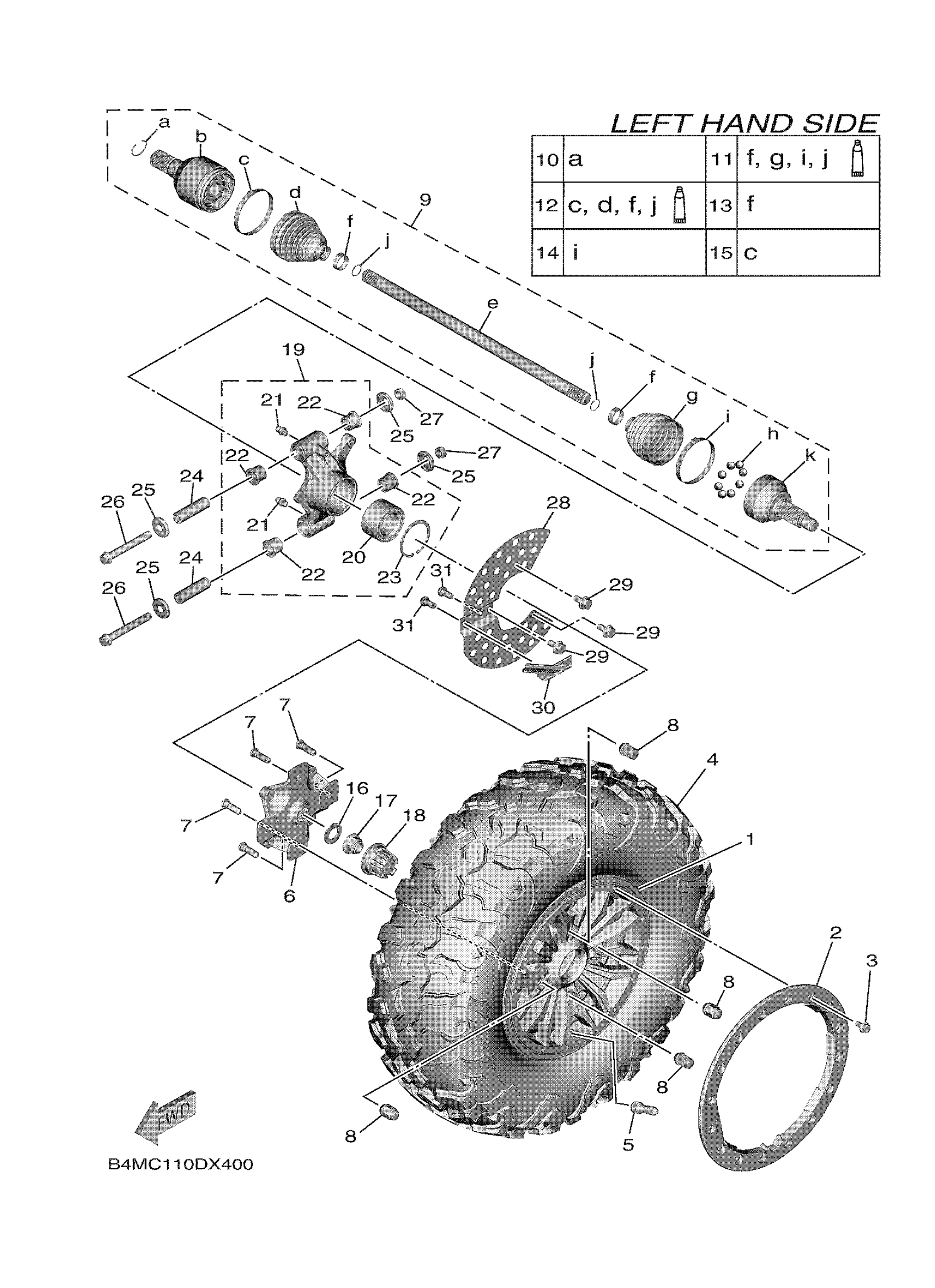

Yamaha YXE10WRZRD (WOLVERINE RMAX2 XT R) D261 2024 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

BKP-F5168-10-00

$441.99

2

RING 1-BLACK

B5H-F5185-01-00

$181.99

3

BOLT, FLANGE

90105-088J5-00

$3.28

4

TIRE (30X10.00R14 ML1 8PR TL)

94110-14809-00

Unavailable

5

VALVE, RIM

93900-00812-00

Unavailable

6

HUB, FRONT

B4J-F5111-02-00

$131.99

7

BOLT, SERRATION

90114-12005-00

$2.97

8

NUT, CROWN

90176-12801-00

Unavailable

9

REAR DRIVE SHAFT ASSY

B4M-F531H-03-00

Unavailable

10

CLIP, SPRING

B4J-F536E-00-00

Unavailable

11

BOOT SET (BALL JOI

B4J-F530X-00-00

$88.99

12

BOOT SET(DOUBLE OF

B4J-F530Y-00-00

$169.99

13

BAND

B4J-F5719-00-00

$10.49

14

BAND

B4J-F639A-00-00

$5.60

15

BAND

B4J-F6293-00-00

$5.60

16

WASHER, PLATE

90201-25023-00

Unavailable

17

NUT

90179-24006-00

Unavailable

18

CAP, WHEEL

2HC-F512A-00-00

Unavailable

19

REAR KNUCKLE ASSY

B4J-F530F-00-00

Unavailable

20

BEARING

93305-00801-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

BUSH, SOLID

90381-22001-00

Unavailable

23

CIRCLIP (70R)

93420-72065-00

Unavailable

24

COLLAR

90387-14025-00

Unavailable

25

COVER, THRUST 1

BYP-23517-00-00

Unavailable

26

BOLT, FLANGE

90105-14017-00

Unavailable

27

NUT, SELF-LOCKING

90185-14010-00

Unavailable

28

RING, WHEEL RR. 1

2HC-F534C-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable

30

PLATE, GUIDE 1

2HC-F2341-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable
