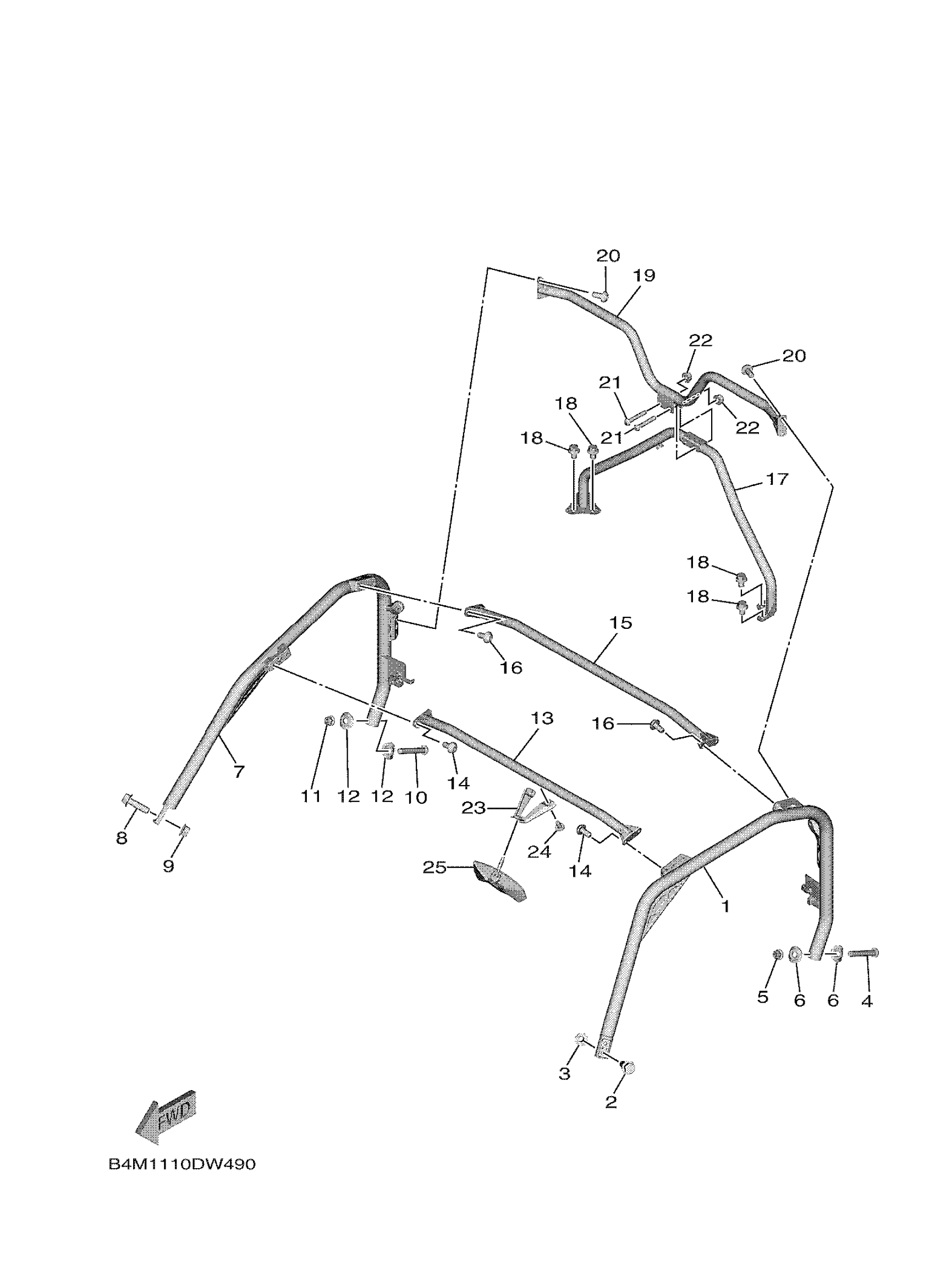

Yamaha YXE10WRZPT (WOLVERINE RMAX2 XTR) B4MK 2023 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
B4M-K831A-00-00
Unavailable
2
BOLT, FLANGE
95817-12040-00
$4.19
3
NUT, SELF-LOCKING
90185-12002-00
$12.49
4
BOLT,BUTTON
92017-10070-00
$4.14
5
NUT, SELF-LOCKING
90185-10819-00
$0.90
6
WASHER 2
1XD-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
B4M-K831E-00-00
$114.99
8
BOLT, FLANGE
95817-12040-00
$4.19
9
NUT, SELF-LOCKING
90185-12002-00
$12.49
10
BOLT,BUTTON
92017-10070-00
$4.14
11
NUT, SELF-LOCKING
90185-10819-00
$0.90
12
WASHER 2
1XD-K7526-00-00
$5.49
13
MEMBER, ROOF FRAME
B4J-K8392-01-00
$171.99
14
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
15
MEMBER, ROOF FRAME 2
B4J-K8393-01-00
$166.99
16
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
17
ROOF SUPPORT ASSY
B4M-K830B-00-00
Unavailable
18
BOLT, FLANGE
95812-10016-00
Unavailable
19
REINFORCEMENT, ROO
B4M-K831M-00-00
Unavailable
20
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
21
BOLT,BUTTON
92017-10060-00
Unavailable
22
NUT, SELF-LOCKING
90185-10819-00
$0.90
23
BRACKET 2
BAS-K7722-00-00
Unavailable
24
SCREW
90149-08805-00
Unavailable
25
GENUINE YAMAHA SXS CENTER MIRR
BAS-F6206-V0-00
Unavailable
