- YXE10WRZPT (WOLVERINE RMAX2 XTR) B4MK 2023
FRONT FENDER 2

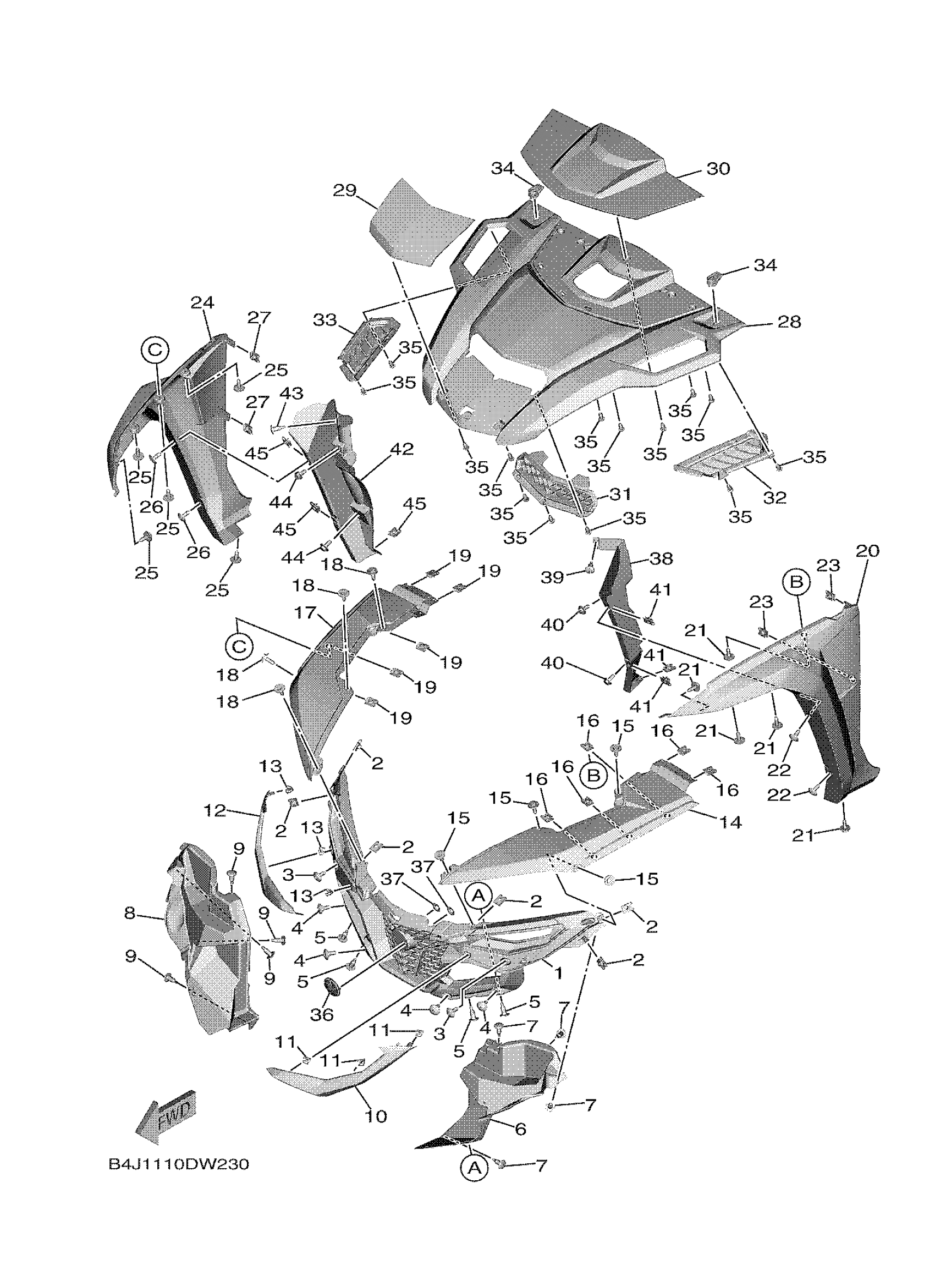

Yamaha YXE10WRZPT (WOLVERINE RMAX2 XTR) B4MK 2023 FRONT FENDER 2 Diagram
#
1
GRILLE, FRONT
B4J-F8309-00-00
$135.99
2
NUT, SPRING
90183-062A1-00
$1.96
3
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
4
BOLT
90109-06334-00
$2.60
5
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
6
COVER 1
B4J-E246A-02-00
$28.99
7
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
8
COVER 2
B4J-E246E-02-00
Unavailable
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
COVER, UPPER 1
B4J-F3121-40-00
$103.99
11
CLIP
90468-040A0-00
$8.49
12
COVER, UPPER 2
B4J-F3131-40-00
$103.99
13
CLIP
90468-040A0-00
$8.49
14
PANEL, FRONT FENDE
B4J-K819L-50-00
$195.99
15
BOLT, WITH WASHER
90119-06226-00
$8.49
16
NUT, SPRING
90183-062A1-00
$1.96
17
PANEL, FRONT FENDE
B4J-K819M-50-00
Unavailable
18
BOLT, WITH WASHER
90119-06226-00
$8.49
19
NUT, SPRING
90183-062A1-00
$1.96
20
FRONT FENDER COMP.
B4J-F1510-10-00
Unavailable
21
BOLT, WITH WASHER
90119-06226-00
$8.49
22
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
23
NUT, SPRING
90183-062A1-00
$1.96
24
FRONT FENDER COMP.
B4J-F1501-10-00
Unavailable
25
BOLT, WITH WASHER
90119-06226-00
$8.49
26
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
27
NUT, SPRING
90183-062A1-00
$1.96
28
HOOD ASSY 3
B4J-F197A-50-00
Unavailable
29
HOOD 1
B4J-F835E-00-00
Unavailable
30
HOOD 2
B4J-F835F-01-00
Unavailable
31
GRILLE
B4J-K715N-01-00
Unavailable
32
VENT, FRONT 1
B4J-K715H-00-00
Unavailable
33
VENT, FRONT 2
B4J-K715J-00-00
Unavailable
34
LEVER, LOCK
1XD-2175K-10-00
Unavailable
35
TAPPING SCREW
90169-06802-00
Unavailable
36
EMBLEM, YAMAHA
B4J-F153E-00-00
Unavailable
37
NUT, SPRING
90183-06071-00
Unavailable
38
GUARD, MUD
B4J-F152R-00-00
Unavailable
39
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
40
BOLT, WITH WASHER
90119-06242-00
Unavailable
41
NUT, SPRING
90183-062A1-00
$1.96
42
GUARD, MUD
B4J-F1629-00-00
Unavailable
43
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
44
BOLT, WITH WASHER
90119-06242-00
Unavailable
45
NUT, SPRING
90183-062A1-00
$1.96
