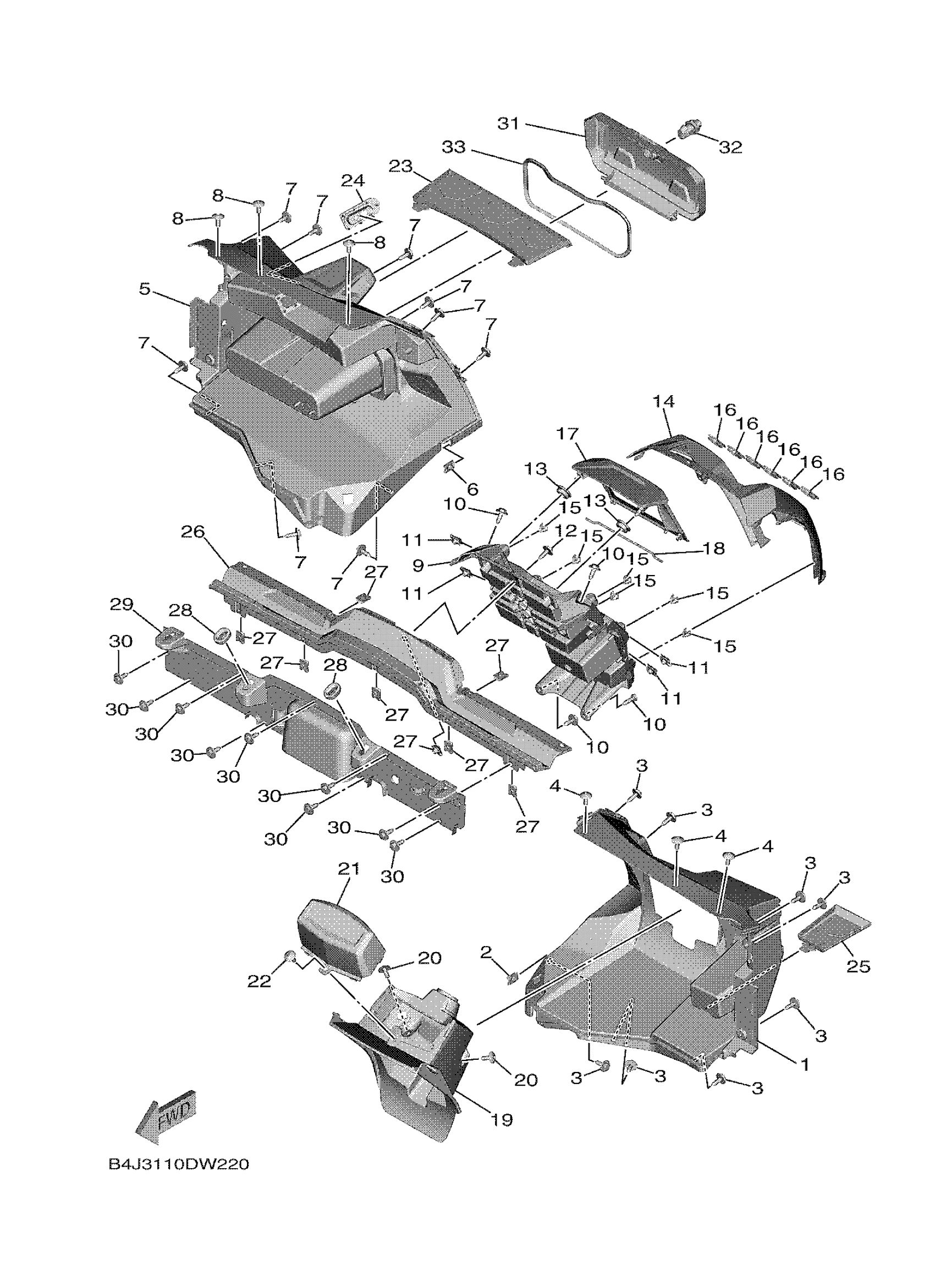

Yamaha YXE10WRZPT (WOLVERINE RMAX2 XTR) B4MK 2023 FRONT FENDER 1 Diagram

#

Description
Price

1

PANEL, DASH 1

B4J-K7781-00-00

Unavailable

2

NUT, SPRING

90183-062A1-00

$1.96

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

5

PANEL, DASH 2

B4J-K7782-00-00

$59.99

6

NUT, SPRING

90183-062A1-00

$1.96

7

BOLT, WITH WASHER

90119-06226-00

$8.49

8

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

9

PANEL, DASH 3

B4J-K7783-00-00

$31.99

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

NUT, SPRING

90183-062A1-00

$1.96

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

GROMMET(4DN)

90480-01558-00

$4.19

14

TRIM, INSTRUMENT P

B4J-K7738-40-00

$126.99

15

CLIP

90468-040A0-00

$8.49

16

PLUG, HOLE

BG4-F312G-00-00

Unavailable

17

LID

B4J-F6214-03-00

Unavailable

18

PIN, HINGE

B4J-F177K-00-00

Unavailable

19

COVER, ADJUST

B4J-F387G-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

21

COVER, METER

B4J-H3559-00-00

Unavailable

22

BOLT

90109-06334-00

Unavailable

23

MAT 1

B4J-F7483-00-00

Unavailable

24

PLATE, RUBBER 1

B4J-F8483-00-00

Unavailable

25

MAT 2

B4J-F7484-00-00

Unavailable

26

COVER, FRONT

B4J-F2865-00-00

Unavailable

27

NUT, SPRING

90183-062A1-00

$1.96

28

GROMMET

90480-01822-00

Unavailable

29

PANEL, ACCESSORY

B4J-F839R-00-00

Unavailable

30

BOLT, WITH WASHER

90119-06226-00

$8.49

31

LID

B4J-F160F-00-00

Unavailable

32

LATCH ASSY 1

B4J-F17N0-01-00

Unavailable

33

SEAL 1

B4J-F1575-01-00

Unavailable
